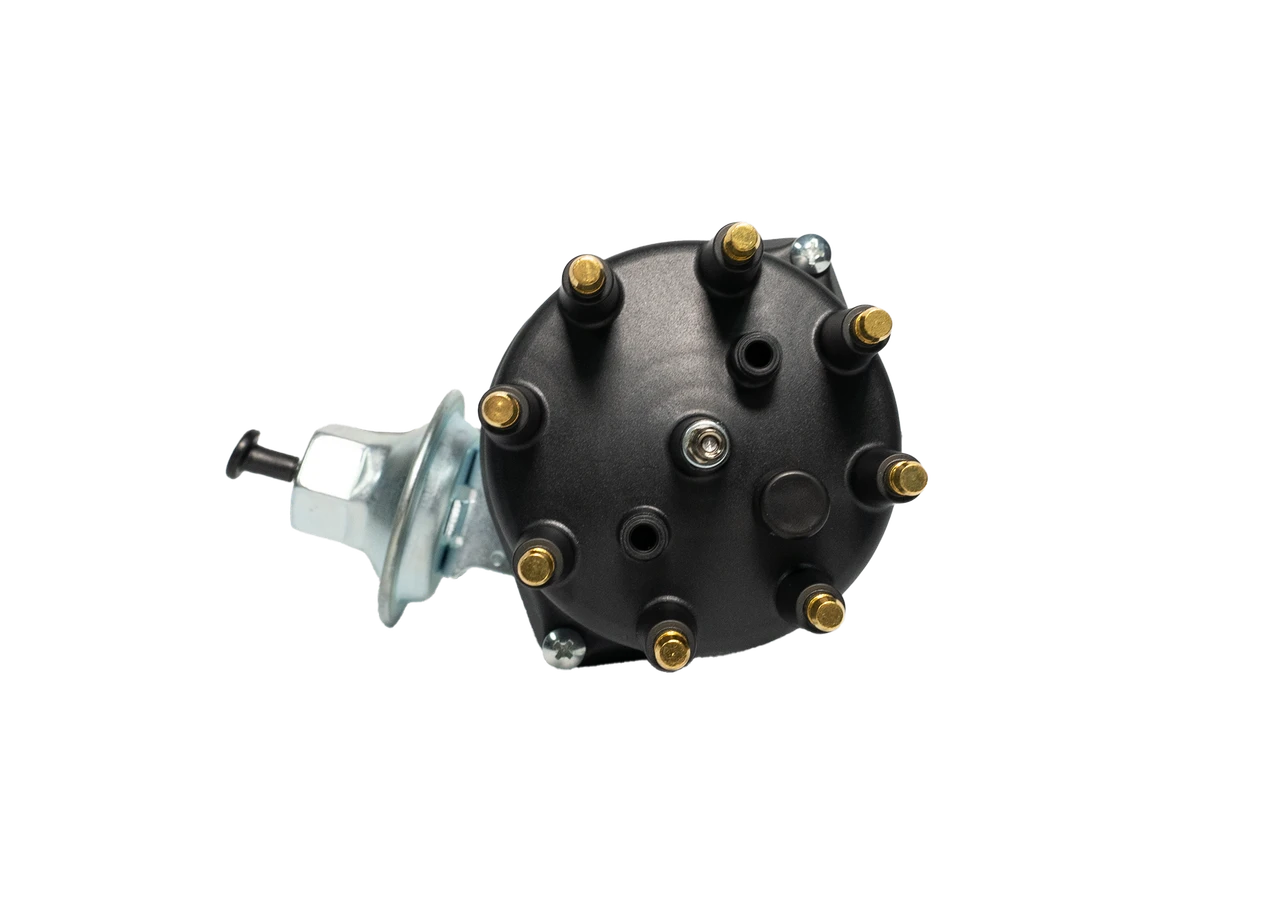

FiTech Pontiac V8 326 – 455 RTR Distributor (99027)
The FiTech Pontiac V8 326 – 455 RTR Distributor (99027) is designed for Pontiac V8 engines (326-455). This distributor offers a simplified installation process due to its built-in module, eliminating the need for an external ignition control box. It features adjustable vacuum and mechanical advance, allowing users to fine-tune ignition timing for optimal engine performance. The unit is constructed with a CNC-machined aluminum housing and a hardened iron gear, ensuring durability and reliability.
KEY FEATURES AND BENEFITS:
Ready-to-Run Ignition Solution: Simplifies installation with a 3-wire hookup.
Built-In Ignition Module: Eliminates the need for an external ignition box.
Adjustable Vacuum and Mechanical Advance: Allows precise timing control.
High-Output Magnetic Pickup: Ensures a strong trigger signal for improved engine performance.
Durable Construction: CNC-machined aluminum housing and hardened iron gear offer long-term reliability.
Part Number: 99027
Engine Compatibility: Pontiac V8 326-455
Distributor Cap Style: Male/HEI, Small Cap
Ignition Module: Built-in
Computer-Controlled Compatible: No
Trigger Style: Magnetic
Advance Type: Vacuum and Mechanical
Ignition Box Required: No
Distributor Gear Material: Iron
Distributor Gear Rotation: Standard
Housing Material: Aluminum
Disconnect Battery: Remove the negative terminal of the vehicle's battery.
Remove Existing Distributor: Take out the current distributor, noting the rotor’s position.
Install New Distributor: Align the rotor with the previously noted position and insert the FiTech 99027 distributor.
Connect Wiring: Attach the distributor's 3 wires: power, ground, and tachometer signal.
Secure Components: Connect the distributor cap and wires.
Adjust Timing: Modify the vacuum and mechanical advance as needed for optimal timing.
Reconnect Battery: Reattach the negative terminal of the battery.
Start and Verify: Start the engine and verify proper operation.
BENEFITS OF USING FITECH PONTIAC V8 326 – 455 RTR DISTRIBUTOR (99027):
Simplified Installation: Ready-to-run design eliminates the need for an external ignition box.
Enhanced Performance: Adjustable timing features allow fine-tuning for optimal engine performance.
Improved Reliability: Durable materials ensure long-term dependable operation.
Direct Replacement: Upgrades older points-style distributors with modern technology.
Reduced Complexity: 3-wire hookup streamlines the ignition system setup.
CNC-machined 6061 T-6 aluminum housing.
Hardened iron distributor gear.
High-output magnetic pickup.
Large paddle wheel reluctor.
Fully adjustable mechanical advance.
Cap and rotor molded in glass fiber reinforced polyester.
Brass cap contacts and stainless steel rotor spring.
3-wire installation.
Standard distributor gear rotation.
Product identification
- Brand: FiTech
- Model / MPN: 99027
