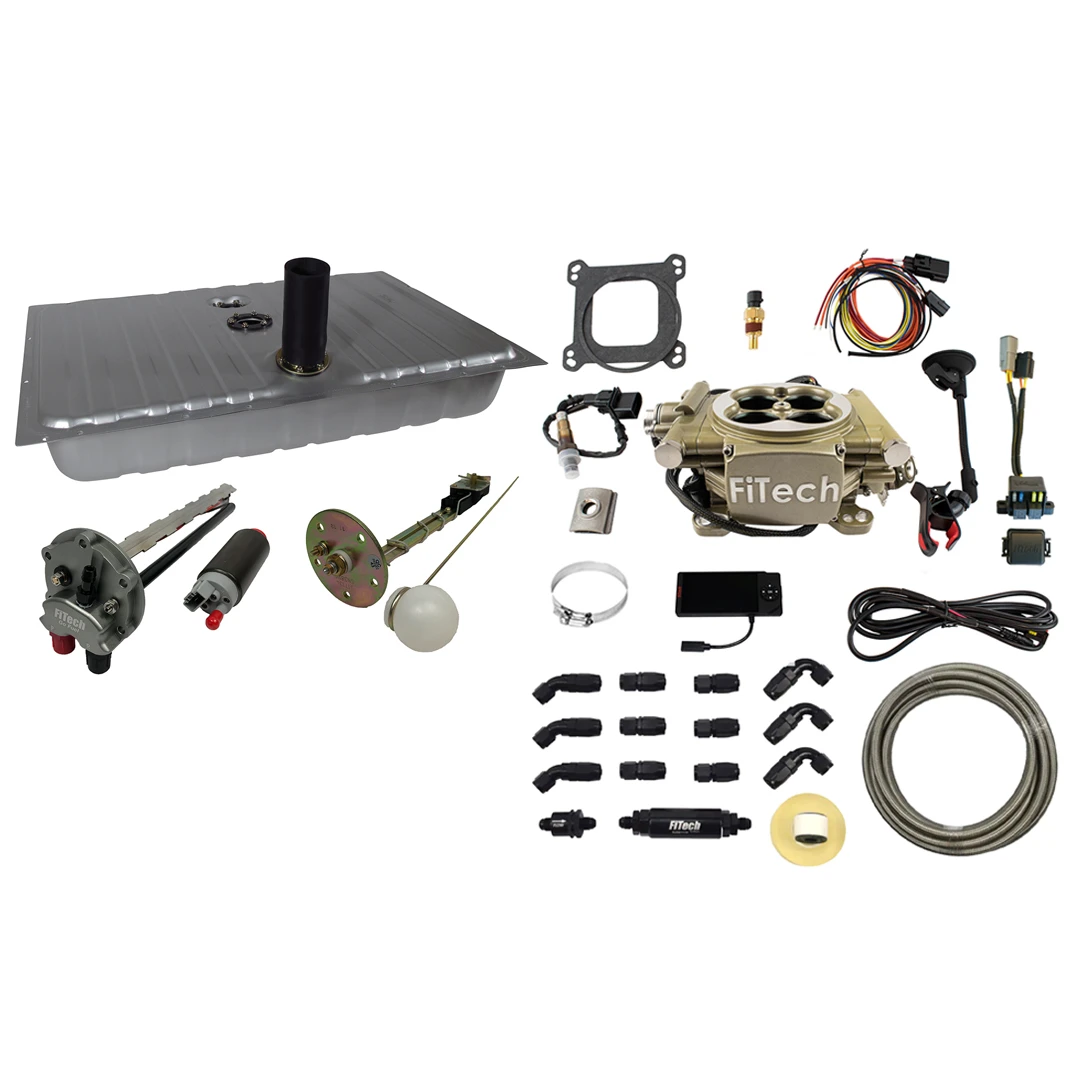

FiTech Mustang Easy Street 600HP Gold EFI In-tank & Fuel Lines (38003)
The FiTech Mustang Easy Street 600HP Gold EFI In-tank & Fuel Lines (38003) simplifies the conversion of your classic 1964-1968 Ford Mustang from a carburetor to electronic fuel injection (EFI). This all-inclusive kit delivers enhanced performance, reliability, and fuel efficiency. It features a 600 horsepower capable throttle body, a direct-fit fuel tank with an integrated pump, and all necessary fuel lines and hardware. Designed for ease of installation and self-learning calibration, the FiTech 38003 provides a modern driving experience for your classic vehicle.
KEY FEATURES AND BENEFITS:
Complete EFI Conversion Kit: Specifically designed for 1964-1968 Ford Mustangs.
"Easy Street" Throttle Body: Capable of 600 horsepower for improved performance.
Direct-Fit Fuel Tank: Features an internal high-pressure fuel pump.
Steel Braided Fuel Line Kit: Includes AN fittings and a 10-micron filter.
Self-Learning ECU: Simplifies tuning for optimal performance.
Built-in Diagnostics: For easy troubleshooting and maintenance.
Improved Fuel Economy: Enhanced throttle response and reliability.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Airflow Rate: 850 cfm
Injector Size: 80 lbs./hr
Fuel Pump Flow Rate: 255 lph (in-tank)
Fuel Type: Gasoline, Methanol, Alcohol, Flex
ECU Included: Yes
Fuel Tank Included: Yes
Fuel Lines: Stainless steel braided
Preparation: Remove the existing carburetor and fuel system components.
Fuel System Installation: Install the new FiTech fuel tank and connect the fuel lines.
Throttle Body Mounting: Mount the FiTech throttle body onto the intake manifold.
Wiring Connections: Connect the wiring harness to the necessary sensors and power sources.
O2 Sensor Installation: Install the O2 sensor into the exhaust system.
Handheld Controller Connection: Connect and follow the on-screen instructions for initial setup.
Startup and Calibration: Start the engine and allow the self-learning ECU to calibrate the fuel mixture.
Fine-Tuning: Use the handheld controller to make adjustments as needed.
BENEFITS OF USING THE FITECH MUSTANG EASY STREET 600HP GOLD EFI IN-TANK & FUEL LINES (38003):
Improved engine performance with better throttle response.
Increased fuel efficiency for reduced operating costs.
Simplified tuning with self-learning capabilities.
Enhanced reliability and reduced maintenance compared to a carburetor.
Modernized driving experience for classic Mustangs.
Complete kit reduces time spent sourcing individual components.
Classic Gold Throttle Body Finish: Adds a stylish touch to your engine bay.
Internal MAP Sensor: For accurate pressure readings.
Fan Control Output: For managing cooling system fans.
Built-In Fuel Pressure Regulator: Maintains optimal fuel pressure.
Handheld Controller: For monitoring and adjustment of system parameters.
Direct Fit Fuel Tank: Eliminates the need for external fuel pumps.
Stainless Steel Braided Fuel Lines: Offers chemical resistance and durability.
10 Micron Fuel Filter: Ensures fuel purity for optimal engine performance.
AN Style Fittings: Provide secure connections for the fuel system.
Product identification
- Brand: FiTech
- Model / MPN: 38003
