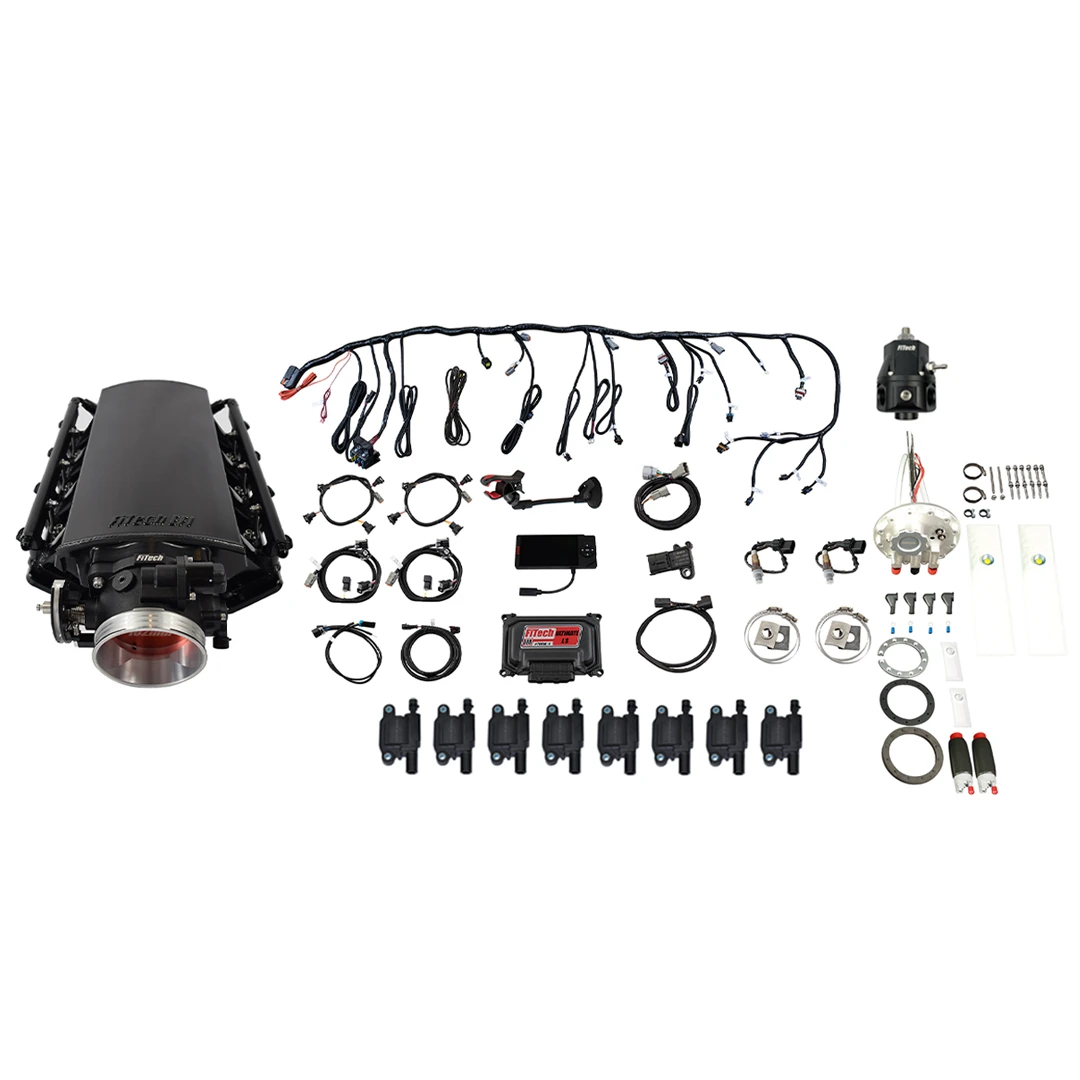

FiTech LS 1000HP EFI LS3 Intake Dual Pump Kit w/Trans Control (78935)
The FiTech LS 1000HP EFI LS3 Intake Dual Pump Kit w/Trans Control (78935) is a comprehensive electronic fuel injection system designed to improve the performance and driveability of LS engines. This kit provides a complete solution for LS engine swaps, offering self-tuning capabilities, high horsepower support, and transmission control for GM electronic transmissions.
KEY FEATURES AND BENEFITS:
Supports up to 1,000 horsepower, making it suitable for high-performance applications.
Includes a short LS3 port intake manifold and a 102mm throttle body.
4.5-inch touchscreen display allows for easy monitoring and adjustments.
Self-tuning technology simplifies setup, with user-tunable options for flexibility.
Transmission controller enables precise shift point and firmness adjustments for GM 4L60/65/80/85 transmissions.
Fuel Injection Style: Multi-port
Maximum Horsepower: 1,000 HP
Throttle Body Size: 102mm
Injector Size: 80 lb/hr
Fuel Pump: In-tank module
Display: 4.5-inch touchscreen
Transmission Control: Yes (GM 4L60/65/80/85)
Intake Material: Aluminum
Sensors: Oxygen, MAP, IAT, TPS, IAC
Install the Intake Manifold: Mount the short LS3 port intake manifold onto the LS engine.
Mount the Throttle Body: Attach the 102mm throttle body to the intake manifold.
Install the Fuel System: Install the in-tank fuel pump module and connect the fuel lines.
Connect the Wiring Harness: Plug in the custom wiring harness to the engine and sensors.
Install the Sensors: Mount the oxygen, MAP, IAT, TPS, and IAC sensors.
Connect the ECU and Display: Connect the ECU and 4.5-inch touchscreen display.
Install the Ignition Coils: Mount the LS3 style ignition coils.
Initial Setup: Power on the system and follow the on-screen instructions for initial setup.
Self-Tuning: Allow the system to self-tune or make manual adjustments as needed.
Transmission Setup: If using transmission control, set shift points and firmness through the display.
BENEFITS OF USING THE FITECH LS 1000HP EFI LS3 INTAKE DUAL PUMP KIT W/TRANS CONTROL (78935):
Improved engine performance and throttle response.
Simplified LS engine swaps with a complete kit.
Easy monitoring and adjustments with the touchscreen display.
Ability to fine-tune the engine for optimal performance.
Fabricated 3mm thick aluminum sheet metal intake.
Cast, cable activated billet aluminum 102mm throttle body.
Handheld controller with color touch screen and cable.
Windshield mount for touch screen controller.
LS ECU with robust processing capability.
High volume billet fuel rails.
Sequential fuel and spark control with individual cylinder trim.
Connects to 24x and 58x cam sensors.
Knock sensor control connects to factory sensors.
3-Bar MAP sensor for boosted applications up to 30 psi.
Tach output driver works with most tachometers.
Two programmable electric fan outputs.
Supplied with WBO2 sensors.
Product identification
- Brand: FiTech
- Model / MPN: 78935
