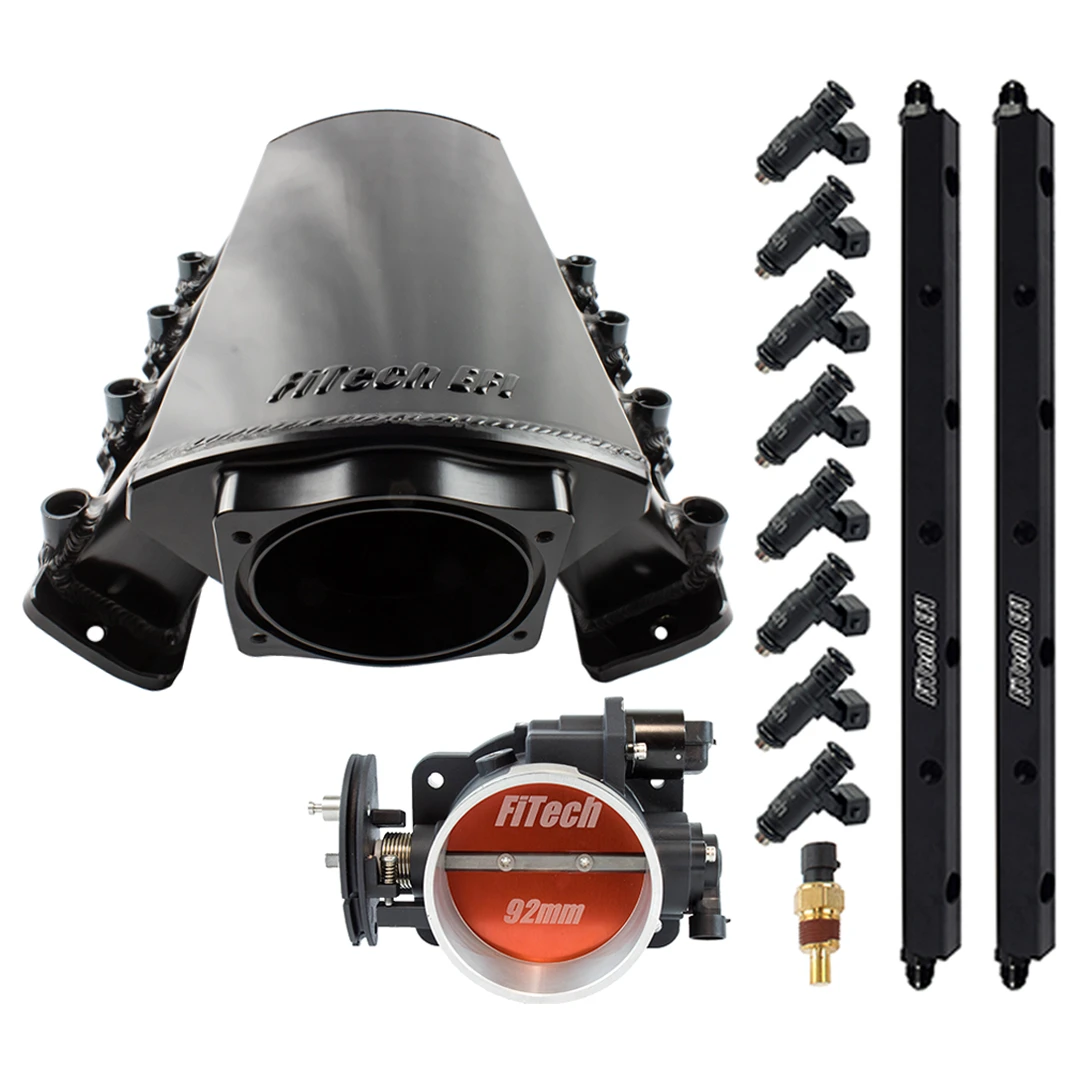

FiTech Loaded LS7 Aluminum Intake Manifold 500HP Kit (70077)
The FiTech Loaded LS7 Aluminum Intake Manifold 500HP Kit (70077) provides a comprehensive induction solution for LS7 engines, supporting up to 500 horsepower. This kit is designed to streamline the installation process, eliminating the need for sourcing and matching individual components. It's suitable for both DIY enthusiasts and professional tuners, offering a straightforward path to improved engine performance.
KEY FEATURES AND BENEFITS:
Complete Induction System: Includes a low-profile, black anodized aluminum intake manifold for LS7 engines.
Optimized RPM Range: Designed for operation between 1,500 to 6,500 RPM.
High Airflow: Features a 92mm cable-operated throttle body with a progressive linkage pulley for smooth throttle transitions.
Ready-to-Install: Simplifies the LS7 engine induction process with all necessary components included.
Cylinder Head Configuration: Raised Rectangular Port LS7
Fuel Injection Style: Multi-port
Basic Operating RPM Range: 1,500-6,500
Intake Section Included: Complete
Throttle Body Bore Size: 92mm
Engine Block Deck Height: Standard deck
Injectors Included: Yes (36 lbs./hr)
Multi-Port Fuel Rails Included: Yes
Base Material: Aluminum
Base Color: Black anodized
Horse Power Rating: 500HP
Begin by removing the existing intake manifold and related components from your LS7 engine.
Install the provided O-ring seals onto the FiTech intake manifold.
Mount the intake manifold onto the cylinder heads, securing it with the included hardware.
Attach the 92mm throttle body to the intake manifold, ensuring proper alignment.
Connect the billet fuel rails and fuel crossover, securing the AN fittings.
Install the provided 36 lbs./hr. flow-matched injectors into the fuel rails.
Connect the throttle cable to the throttle body’s linkage.
Verify that all connections are secure.
Connect your chosen ECU and handheld controller (not included) per the manufacturer's directions.
Start the engine and verify proper operation.
BENEFITS OF USING THE FITECH LOADED LS7 ALUMINUM INTAKE MANIFOLD 500HP KIT (70077):
Simplified Installation: The complete kit eliminates the need for sourcing and matching individual components.
Enhanced Throttle Response: The 92mm throttle body and progressive linkage pulley provide smooth and responsive throttle transitions.
Quality Construction: Aluminum construction with TIG welding and black anodizing for durability and aesthetics.
Black Anodized Aluminum Construction: Provides a durable and professional appearance.
TIG-Welded Seams: Ensures strength and reliability.
CNC-Machined Surfaces: For precise fitment and sealing.
O-Ring Gasket Seals: For enhanced sealing performance.
92mm Cable-Operated Throttle Body: Designed for high airflow.
Progressive Linkage Pulley: For smoother throttle operation.
Fuel Crossover Line: Included for optimal fuel distribution.
Mounting Hardware Included: All necessary hardware for installation is provided.
Product identification
- Brand: FiTech
- Model / MPN: 70077
