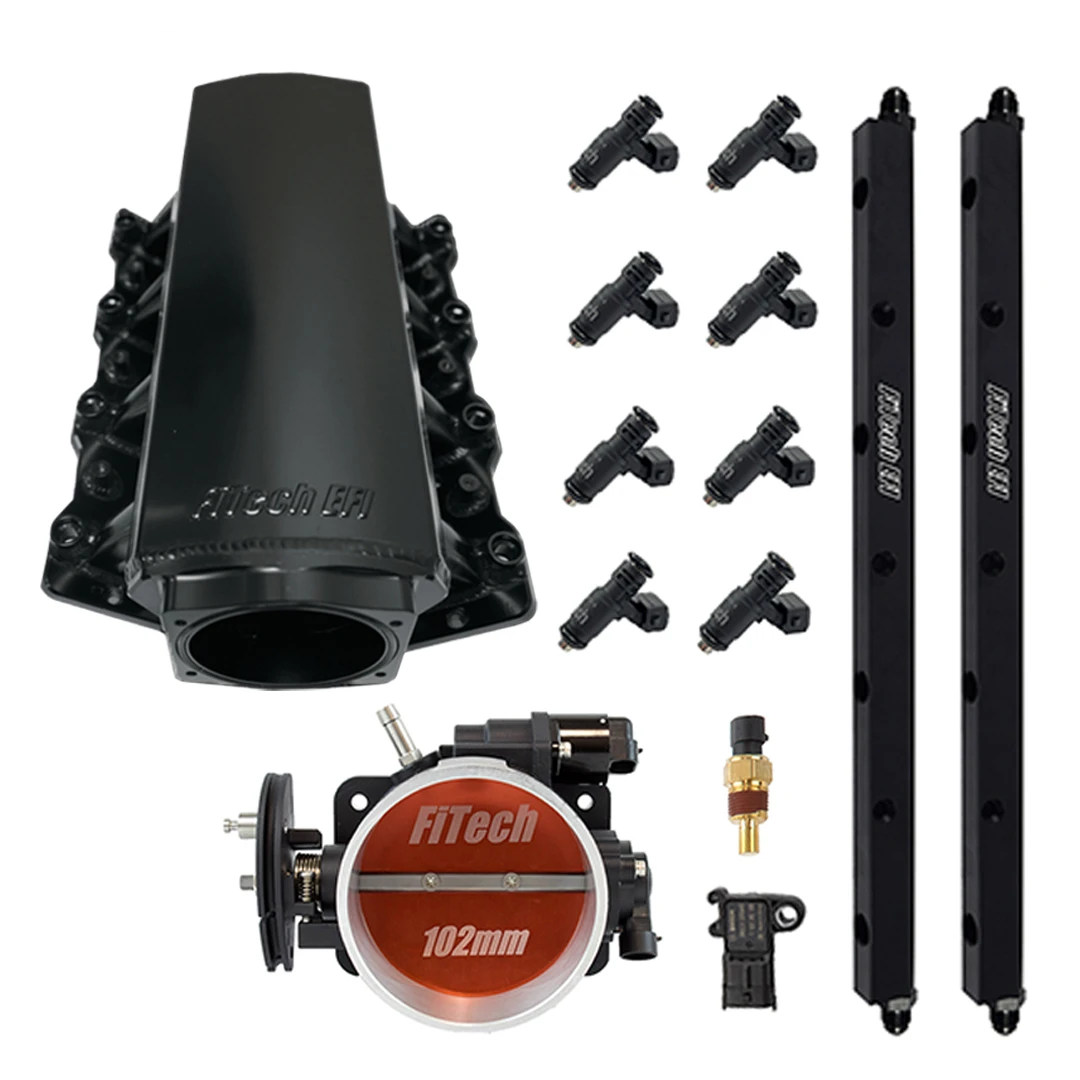

FiTech Loaded LS1 Aluminum Intake Manifold 750HP Kit (70072)
The FiTech Loaded LS1 Aluminum Intake Manifold 750HP Kit (70072) provides a comprehensive solution for upgrading your LS1/LS2/LS6 engine to fuel injection. This kit simplifies the process by including all essential components, minus the ECU and handheld controller, allowing for integration with your preferred aftermarket management system. Designed for both DIY enthusiasts and professional tuners, this kit supports up to 750 horsepower and offers a 1,500-6,500 RPM powerband.
KEY FEATURES AND BENEFITS:
Complete Intake System: Eliminates the need to source individual parts, providing a ready-to-install solution.
Strong and Lightweight: Aluminum construction ensures durability without adding excess weight.
High Airflow: The 102mm throttle body enhances airflow for improved performance.
Ease of Installation: Designed for compatibility and simplicity, saving time during the build process.
Engine Compatibility: LS1/LS2/LS6 Cathedral Port
Horsepower Rating: Up to 750HP
Throttle Body Size: 102mm
Injector Flow Rate: 55 lbs./hr
Operating RPM Range: 1,500-6,500
Construction: Aluminum, TIG-welded
Finish: Black anodized
Fuel Injection Style: Multi-port
Dimensions: 29 × 17 × 11 in
Preparation: Remove the existing intake manifold and related components from your LS engine.
Installation of Intake: Mount the FiTech 70072 intake manifold onto the cylinder heads using the provided O-ring seals and hardware.
Throttle Body Attachment: Install the 102mm throttle body onto the intake manifold, ensuring proper alignment.
Fuel Rail and Injector Setup: Mount the billet fuel rails and install the 55 lbs./hr injectors. Connect the fuel crossover and AN fittings.
Sensor Installation: Attach the required sensors (IAT, MAP, TPS) to their designated locations.
Connection to ECU: Connect the fuel injectors and sensors to your chosen aftermarket ECU.
Fuel System Plumbing: Connect the fuel lines to the fuel rails, ensuring proper fuel pressure regulation.
Final Checks: Verify all connections, tighten hardware, and confirm proper component seating.
ECU Tuning: Program your ECU with the appropriate fuel and ignition maps for your engine setup.
Testing: Start the engine and monitor performance, making adjustments to the ECU as needed.
BENEFITS OF USING THE FITECH LOADED LS1 ALUMINUM INTAKE MANIFOLD 750HP KIT (70072):
Simplified fuel injection conversion for LS engines.
High-quality components designed for performance.
Reduced time and effort compared to sourcing individual parts.
Compatibility with aftermarket ECUs for customized tuning.
Improved engine performance and throttle response.
CNC-Machined Surfaces: Equipped with O-ring gaskets for secure sealing.
Progressive Linkage Pulley: On the throttle body for smooth actuation.
Parabolic Inlet Machining: Enhances airflow into the throttle body.
Professional Appearance: Black anodized finish for a clean look.
Versatility: Machined supplemental bosses for added flexibility.
Cable Actuated Throttle: Designed for seamless throttle operation.
Flow Matched Injectors: Included for optimal performance.
Product identification
- Brand: FiTech
- Model / MPN: 70072
