FiTech fuel pump kit details

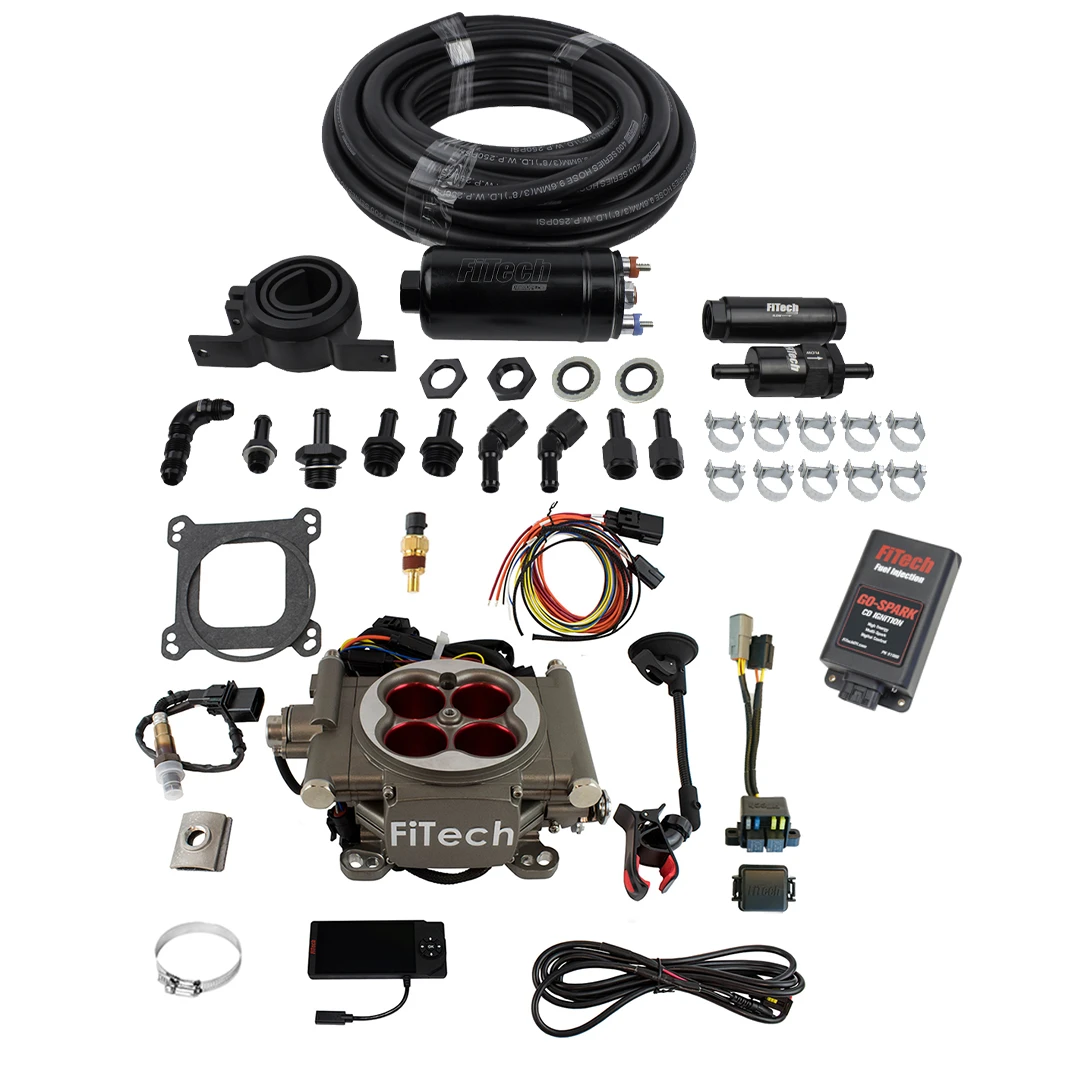

FiTech Go Street EFI Master Kit w/ Inline Fuel Pump & CDI Box (93103)
The FiTech Go Street EFI Master Kit w/ Inline Fuel Pump & CDI Box (93103) provides a straightforward path to upgrade from a traditional carburetor to modern electronic fuel injection. Designed for engines up to 400 horsepower, this system offers self-tuning capabilities, improving both performance and fuel efficiency. It includes all essential components for a seamless installation.
KEY FEATURES AND BENEFITS:
High Horsepower Support: Designed for engines up to 400 horsepower, replacing standard 4-barrel carburetors.
Complete Kit: Includes an inline fuel pump, ECU, and handheld display for a comprehensive upgrade.
Accurate Fuel Management: Wideband oxygen sensor and speed density metering for precise control.
Maximum Horsepower: 400 HP
Injection Style: Throttle body
ECU Included: Yes (mounted on throttle body)
Fuel Pump Included: Yes (inline, 255 lph)
Throttle Body Mounting Flange: 4-barrel square bore
Airflow Rate: 850 CFM
Injector Size: 62 lbs/hr
Self-Tuning: Yes
Metering Style: Speed density (MAP-N)
User Interface: 4.5 inch handheld display
Fuel Compatibility: Gasoline, alcohol, methanol, flex fuel
Remove Existing Carburetor: Detach the current 4-barrel carburetor from the intake manifold.
Install FiTech Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold.
Connect Wiring Harness: Attach the provided wiring harness to the throttle body and other necessary sensors.
Install Fuel Pump: Mount the inline fuel pump and connect fuel lines to the throttle body.
Connect Oxygen Sensor: Install the wideband oxygen sensor in the exhaust system.
Connect Handheld Display: Plug the handheld display into the wiring harness for monitoring and adjustments.
Initial Setup: Follow the on-screen instructions on the handheld display to input engine parameters.
Fine-Tune (Optional): Use the handheld display to make minor adjustments as needed.
BENEFITS OF USING THE FITECH GO STREET EFI MASTER KIT W/ INLINE FUEL PUMP & CDI BOX (93103):
Improved Fuel Efficiency: Compared to a carburetor.
Enhanced Engine Performance: Through precise fuel control.
Simplified Installation: With a complete kit for easy setup.
Self-Tuning Feature: Eliminates the need for manual adjustments.
Reliable Operation: With included fuel pump and sensors.
Easy Monitoring: Adjustments made simple with the handheld display.
Integrated ECU: Directly on the throttle body to reduce wiring clutter.
Bosch 4.2 Wideband Oxygen Sensor: Provides accurate readings for fuel management.
43mm Venturis: For optimal airflow.
Swirl Spray Annular Discharge Design: For efficient atomization.
Three Fuel Inlet Connections: Allow for flexible installation options.
Voltage Control Fuel Pump Output: For improved efficiency.
Includes Ignition Control Box: For enhanced performance.
Product identification
- Brand: FiTech
- Model / MPN: 93103
