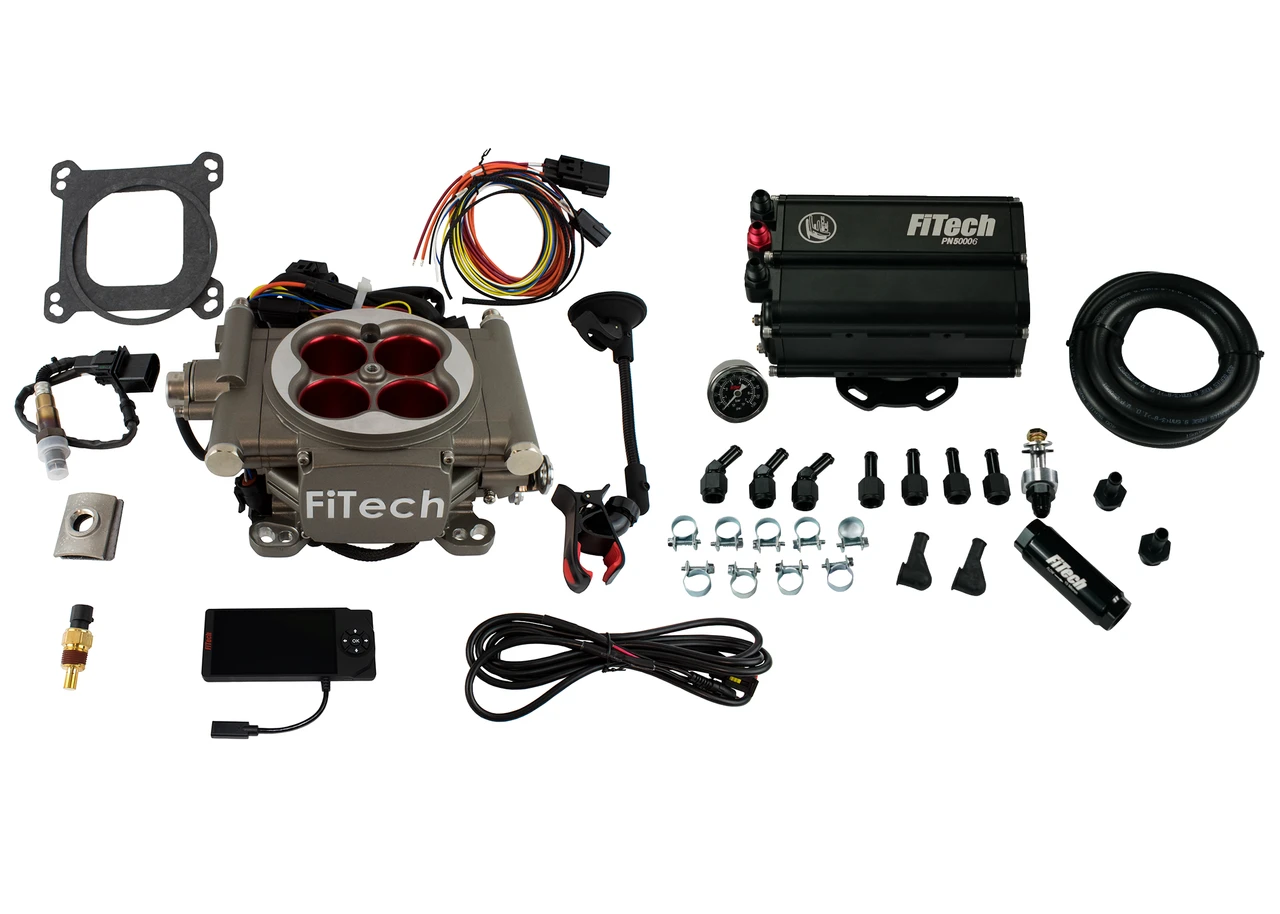

FiTech Go Street 400HP Cast EFI w/ Force Fuel System (35503)
KEY FEATURES AND BENEFITS:
Self-Tuning EFI System: Designed to replace 4-barrel carburetors, providing the advantages of EFI without extensive tuning.
Maximum Horsepower: 400 HP
Injection Style: Throttle body
Timing Control: No
Power Adder Compatibility: No
ECU Included: Yes (integrated)
Fuel Pump Included: Yes (external, 340 LPH)
Transmission Controller: No
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore (4150 Flange)
Venturi Quantity: 4
Venturi Diameter: 43 mm
Airflow Rate: 850 CFM
Injector Size: 62 lbs/hr
Display: 4.5-inch handheld
Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex Fuel
Compatibility: Engines using a 4-barrel square bore intake manifold
Remove Existing Carburetor: Detach the existing 4-barrel carburetor from the intake manifold.
Install FiTech Throttle Body: Mount the FiTech 35503 throttle body onto the intake manifold using the provided gaskets.
Mount Force Fuel System: Install the Force Fuel system in a suitable location, ensuring proper fuel line routing.
Connect Wiring Harness: Attach the wiring harness to the throttle body, sensors, and power source, following the provided instructions.
Install Sensors: Mount the oxygen (O2), MAP, IAT, and TPS sensors.
Connect Fuel Lines: Connect the fuel lines from the Force Fuel system to the throttle body and fuel supply.
Connect the Handheld Display: Attach the handheld display to the wiring harness for monitoring and adjustments.
Initial Setup: Power on the system and follow the on-screen prompts on the handheld display for initial setup.
Start Engine: Start the engine and allow the self-tuning system to calibrate.
Monitor and Adjust: Use the handheld display to monitor engine parameters and make minor adjustments if needed.
BENEFITS OF USING THE FITECH GO STREET 400HP CAST EFI W/FORCE FUEL SYSTEM (35503):
Improved Fuel Efficiency: Offers better economy compared to carburetors.
Enhanced Throttle Response: Provides a more engaging driving experience.
Smoother Idle: Allows for easier cold starts and stable operation.
Simplified Installation: The included Force Fuel system makes setup straightforward.
Reduced Maintenance: Lower upkeep compared to traditional carburetors.
External 340 LPH Fuel Pump: Ensures adequate fuel supply.
Included 4.5-Inch Handheld Display: For easy monitoring and adjustments.
Speed Density (MAP-Based) Fuel Metering: Provides accurate fuel management.
Cast Aluminum Throttle Body Construction: Durable and reliable.
Oxygen, MAP, IAT, and TPS Sensors Included: Comprehensive sensor package for accurate readings.
Designed to Replace 4-Barrel Square Bore Carburetors: Simplifies the upgrade process.
Product identification
- Brand: FiTech
- Model / MPN: 35503
