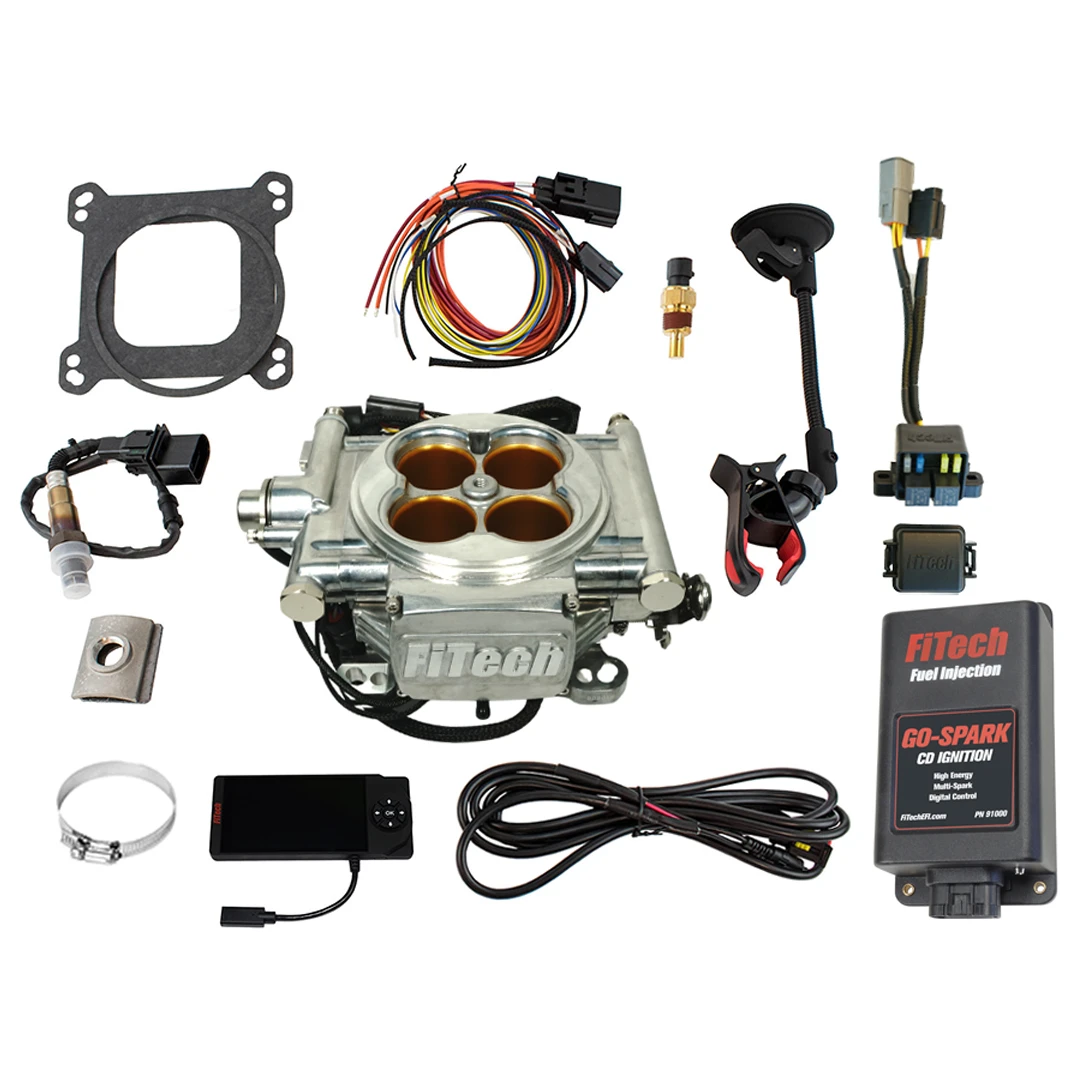

FiTech Go EFI 8 PA 1200 HP System w/ Go Spark CDI Ignition (93013)
The FiTech Go EFI 8 PA 1200 HP System w/ Go Spark CDI Ignition (93013) is a high-performance fuel injection solution designed for engines producing up to 1,200 horsepower. This system is tailored for enthusiasts seeking significant power gains, especially in boosted or nitrous-assisted applications. It includes a throttle body design, a Go Spark CDI ignition box, and comprehensive tuning capabilities.
KEY FEATURES AND BENEFITS:
Supports up to 1,200 horsepower, suitable for high-performance engines.
Throttle body fuel injection style simplifies installation and maintenance.
Go Spark CDI ignition enhances spark output for improved combustion and power.
Self-tuning capabilities allow for automatic adjustments, optimizing performance.
User-tunable with included Pro-tuning software for precise control.
Data logging functionality enables performance analysis and optimization.
Built-in 2.5 BAR MAP sensor handles increased boost pressures.
80 lbs/hr injectors provide ample fuel flow for high-demand applications.
4.5-inch display for monitoring and adjustment.
Fuel Injection Style: Throttle body
Maximum Horsepower: 1,200 HP
Injector Size: 80 lbs/hr
Throttle Body Mounting Flange: 4-barrel square bore (4150 flange)
Airflow Rate: 850 CFM
Venturi Diameter: 44.00mm
MAP Sensor: 2.5 BAR
Ignition: Go Spark CDI included
Display: 4.5-inch display
Metering Style: Speed density
Installation: Mount the throttle body to the 4-barrel intake manifold. Connect the wiring harness to the engine and sensors. Install the Go Spark CDI ignition box.
Sensor Installation: Install the wideband oxygen sensor, coolant sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor as per the provided instructions.
Wiring: Connect the wiring harness to the vehicle's electrical system, including power and ground connections.
Initial Setup: Connect the handheld controller to the system. Use the display to input basic engine parameters.
User Tuning: Connect a laptop using the provided mini USB cable and Pro-tuning software for advanced adjustments.
Data Logging: Use the Pro-tuning software to record and analyze engine performance data.
Ignition Setup: Connect the CDI ignition to the distributor, following the provided wiring diagram.
Fuel System: Install a proper fuel system to support the 1,200 HP, as this unit does not come with one.
BENEFITS OF USING THE FITECH GO EFI 8 PA 1200 HP SYSTEM W/ GO SPARK CDI IGNITION (93013):
Improved engine performance and power output.
Enhanced spark output for better combustion.
Simplified installation compared to multi-port systems.
User-friendly interface and tuning capabilities.
Reliable performance under high-demand conditions.
Ability to monitor engine parameters in real time.
Annular discharge design with 20 jet streams.
Built-in timing controls based on boost or nitrous input.
Compatible with various distributor types.
Includes a wideband oxygen sensor for accurate readings.
Pro-tuning laptop software for advanced adjustments.
850 CFM airflow.
Cast aluminum throttle body.
Product identification
- Brand: FiTech
- Model / MPN: 93013
