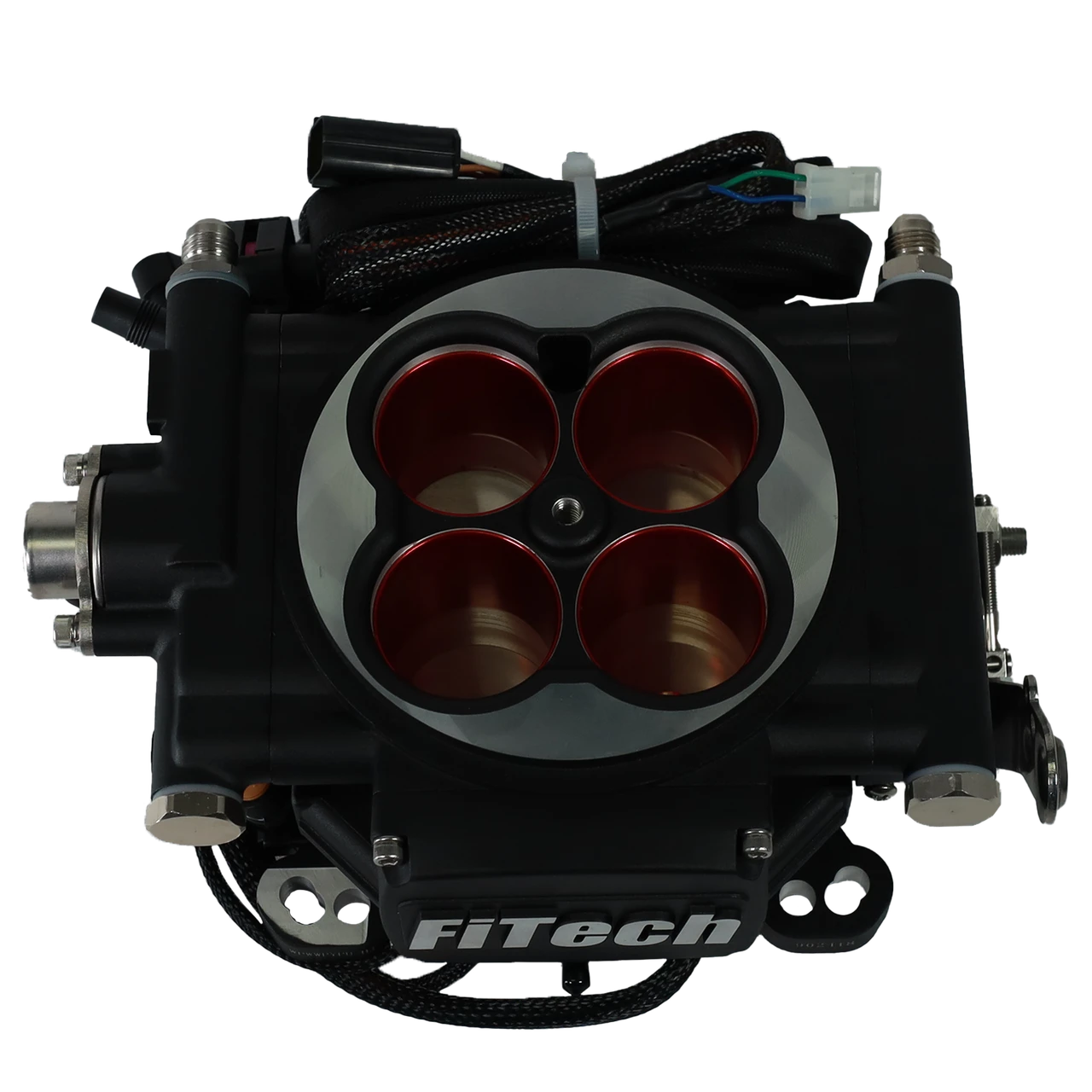

FiTech Go EFI 4 Power Adder Matte Black Finish 600HP System (30004)
KEY FEATURES AND BENEFITS:
Power Adder Compatibility: Designed for engines with turbochargers, superchargers, or nitrous, supporting up to 25 lbs of boost and single-stage wet nitrous systems.
Self-Tuning Functionality: Simplifies the initial setup process, allowing for quick and easy tuning.
Advanced Tuning Options: Laptop software provides detailed control over fuel and ignition settings.
Ignition Timing Control: Enables precise management of ignition timing, including boost and nitrous timing retard.
Direct Carburetor Replacement: Fits standard 4-barrel intake manifolds, replacing existing carburetors.
Performance Enhancement: Improves engine performance and efficiency through precise fuel and ignition control.
Maximum horsepower: 600 HP
Injection style: Throttle body
Timing control: Yes
Power adder compatibility: Yes (Boost/Nitrous oxide)
ECU included: Yes
Metering style: Speed density (Map-N)
Throttle body mounting flange: 4-barrel square bore
Venturi quantity: 4
Injector size: 80 lb/hr
MAP sensor: 2.5 BAR internal
Fuel pressure regulator: Built-in
Installation: Remove the existing 4-barrel carburetor and install the FiTech 30004 throttle body onto the intake manifold.
Sensor Installation: Install the provided oxygen sensor, CTS sensor, and other necessary sensors.
Wiring Connection: Connect the wiring harness to the vehicle's electrical system and the necessary sensors.
Hand-Held Controller Setup: Use the hand-held controller to input basic engine parameters and initiate the self-tuning process.
Initial Start-Up: Start the engine and allow the system to self-tune.
Fine-Tuning (Optional): Use the laptop software for advanced tuning adjustments as needed.
Power Adder Configuration (If Applicable): Configure boost and nitrous settings through the hand-held controller or laptop software.
BENEFITS OF USING THE FITECH GO EFI 4 POWER ADDER MATTE BLACK FINISH 600HP SYSTEM (30004):
Improved fuel efficiency and engine performance.
Simplified tuning process with self-tuning capabilities.
Precise control over fuel and ignition timing.
Enhanced power adder performance.
Reduced maintenance compared to traditional carburetors.
Reliable performance for high-demand applications.
Integrated ECU: Mounted directly on the throttle body for ease of installation.
Airflow Rate: 850 CFM for optimal performance.
Matte Black Cast Aluminum Throttle Body: Durable and aesthetically pleasing design.
Adjustable Fan Control Outputs: Allows for better engine cooling management.
CDI Ignition System Compatibility: Works seamlessly with CDI systems.
Versatile Fuel Support: Compatible with gasoline, alcohol, methanol, and flex fuel.
Air Conditioning Idle Speed Input: Enhances functionality in vehicles with A/C.
GM-Type Sensors: Includes Bosch wideband oxygen sensor for accurate readings.
On-the-Fly Adjustments: Ability to change air-fuel ratios and ignition timing as needed.
Product identification
- Brand: FiTech
- Model / MPN: 30004
