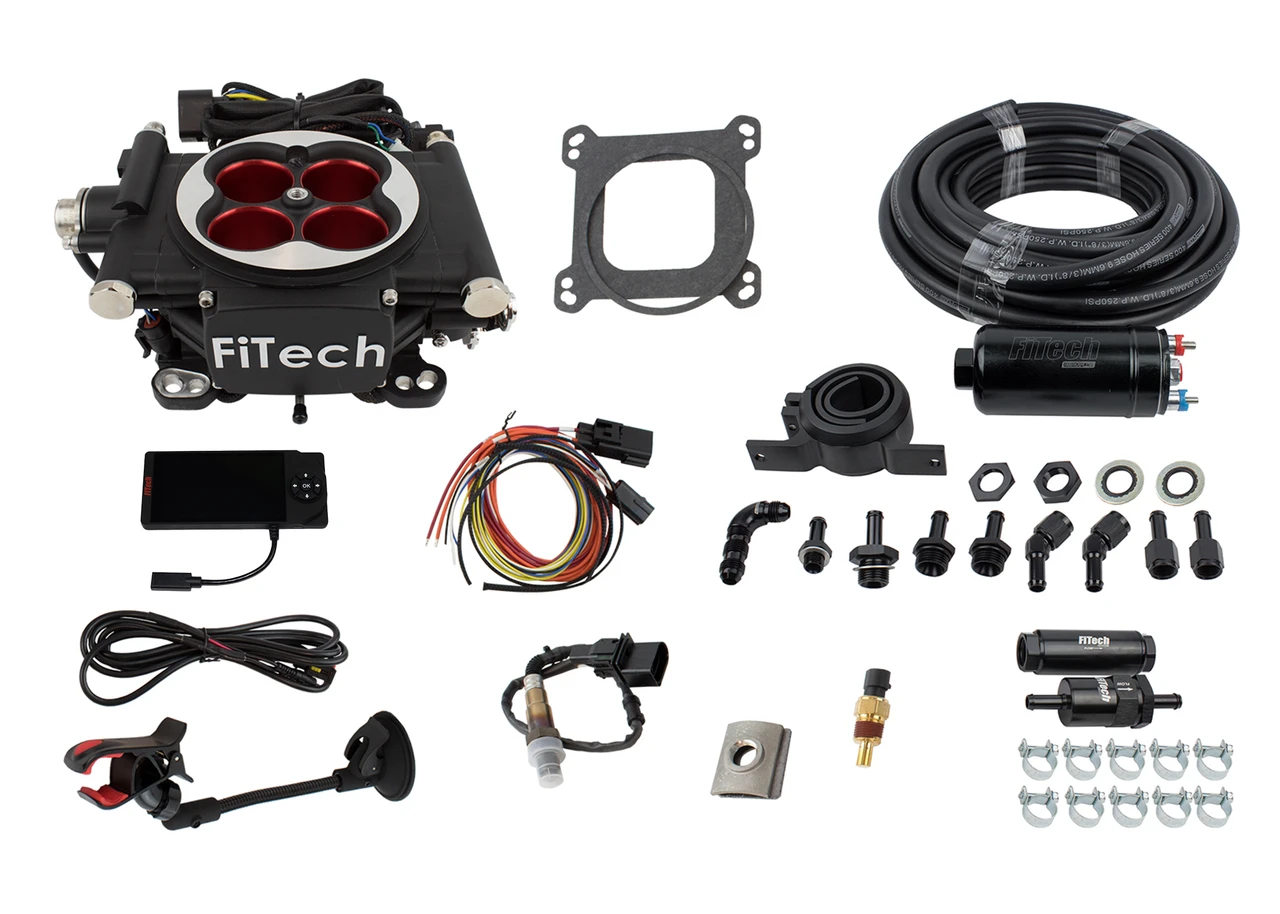

FiTech Go-EFI 4 Power Adder 600HP + In-line Fuel Pump (31004)
The FiTech Go-EFI 4 Power Adder 600HP + In-line Fuel Pump (31004) replaces traditional 4-barrel carburetors with a self-tuning electronic fuel injection solution. Designed for engines up to 600 horsepower, this system excels in boosted and nitrous applications. It simplifies installation with a built-in ECU and fuel pressure regulator, ensuring optimal performance with advanced fuel atomization.
KEY FEATURES AND BENEFITS:
Boost Compatibility: The 2.5 bar MAP sensor supports up to 21.7 psi of boost, suitable for turbo and supercharger setups.
Advanced Atomization: Features wet flow technology for enhanced combustion efficiency.
Timing Control: Allows precise adjustments for both boost and nitrous applications.
Horsepower Rating: 200-600 HP
Throttle Body: 4-barrel square bore, 850 CFM
Injectors: 80 lbs/hr
Fuel Pump: 255 LPH external inline
MAP Sensor: 2.5 bar
Boost Capability: Up to 21.7 psi
Fuel Pressure Regulator: Built-in
ECU: Integrated on throttle body
Install the Throttle Body: Replace your existing 4-barrel carburetor with the FiTech throttle body.
Connect Sensors: Attach the MAP, IAT, TPS, and oxygen sensors to their designated locations.
Wire the System: Connect the essential wires for power, ground, and ignition.
Install Fuel System: Mount the included fuel pump and connect the fuel lines and filters.
Initial Setup: Use the handheld controller to input basic engine parameters.
Start the Engine: The ECU will automatically begin self-tuning.
Fine-Tune (Optional): Use the handheld controller or laptop software for advanced adjustments.
BENEFITS OF USING THE FITECH GO-EFI 4 POWER ADDER 600HP + IN-LINE FUEL PUMP (31004):
Enhanced fuel efficiency and performance.
Simplified installation compared to traditional EFI systems.
Reliable operation in boosted and nitrous applications.
Elimination of carburetor tuning issues.
Precise control over fuel and timing.
Integrated ECU: Built directly into the throttle body.
MAP Sensor: Comes with a 2.5 bar capability.
Swirl Spray Design: Enhances fuel atomization for better combustion.
Handheld Touchscreen Controller: Facilitates easy adjustments.
Timing Control: Provides enhanced performance tuning options.
Adjustable Fan Control: Offers flexibility in engine cooling.
Air Conditioning Idle Speed Adjustment: Maintains performance under load.
Laptop Tuning Software Compatibility: For advanced tuning options.
External Fuel Pump Kit: Included for complete installation.
Product identification
- Brand: FiTech
- Model / MPN: 31004
