FiTech fuel pressure regulator details

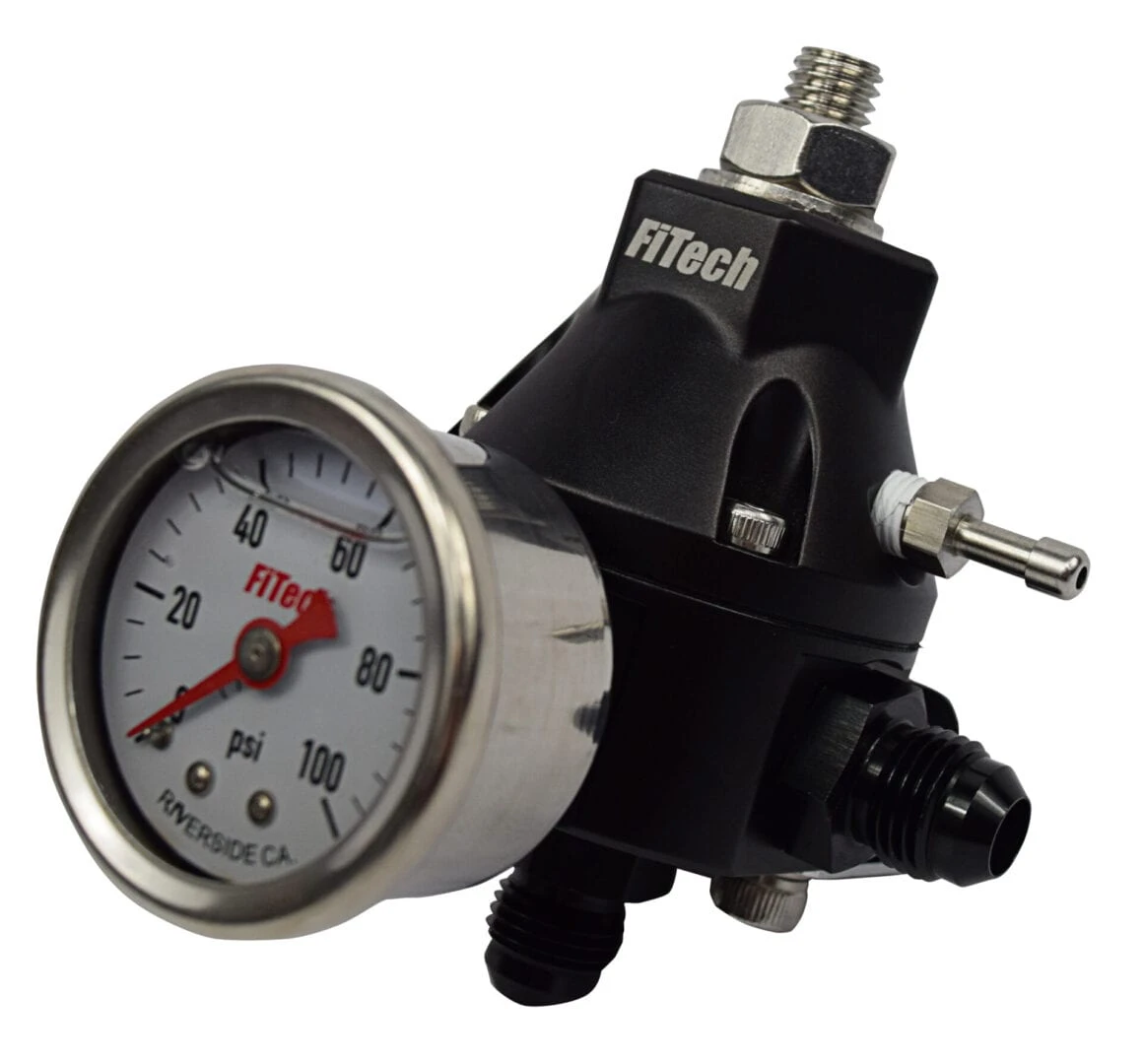

FiTech Fuel Pressure Regulator w/Gauge & Fittings (54001)
The FiTech Fuel Pressure Regulator w/Gauge & Fittings (54001) allows for precise control of fuel pressure in electronic fuel injection (EFI) systems. This single-outlet regulator is designed to support up to 1,000 horsepower on gasoline engines. Constructed from billet aluminum, it features -6 ORB ports and an adjustable pressure range of 30 to 70 psi. The regulator includes a vacuum/boost reference port, making it suitable for boosted applications, and a gauge port for monitoring fuel pressure. A liquid-filled gauge and mounting bracket are included for easy installation.
KEY FEATURES AND BENEFITS:
Adjustable Fuel Pressure: Allows precise setting of fuel pressure between 30 and 70 psi.
High-Flow Compatibility: Designed to work with high-flow fuel pumps.
Boosted Application Ready: Includes a vacuum/boost reference port.
Durable Construction: Billet aluminum construction for strength and longevity.
Fuel Compatibility: Viton diaphragm compatible with various gasoline blends, including E85.
Complete Kit: Includes a liquid-filled pressure gauge, mounting bracket, and AN fittings.
High Horsepower Support: Supports up to 1,000 horsepower on gasoline engines.
Brand: FiTech Fuel Injection
Part Number: 54001
Pressure Range: 30-70 psi
Location: Inline
Inlet/Outlet Size: -6 AN
Material: Billet Aluminum
Ports: Vacuum/Boost, Gauge
Horsepower Support: 1,000 hp (gas)
Mounting: Secure the regulator using the included mounting bracket in a suitable location.
Plumbing: Connect the fuel inlet and outlet lines to the -6 AN ports.
Gauge Installation: Install the liquid-filled pressure gauge into the gauge port.
Vacuum/Boost Connection: If applicable, connect the vacuum/boost reference line.
Pressure Adjustment: Use the adjustment screw to set the desired fuel pressure.
Testing: Start the engine and verify the fuel pressure using the gauge.
Fine-Tuning: Make necessary adjustments to the fuel pressure as needed.
BENEFITS OF USING THE FITECH FUEL PRESSURE REGULATOR W/GAUGE & FITTINGS (54001):
Optimizes engine performance and efficiency.
Reduces the risk of fuel-related issues.
Provides precise control over fuel pressure in EFI systems.
Allows for easy monitoring of fuel pressure.
Single outlet configuration.
-6 ORB inlet and outlet ports.
Integrated gauge port.
Included mounting bracket.
Included AN fittings.
Viton diaphragm.
Liquid filled pressure gauge.
Vacuum/Boost reference port.
Rebuildable design.
Black anodized finish.
Product identification
- Brand: FiTech
- Model / MPN: 54001
