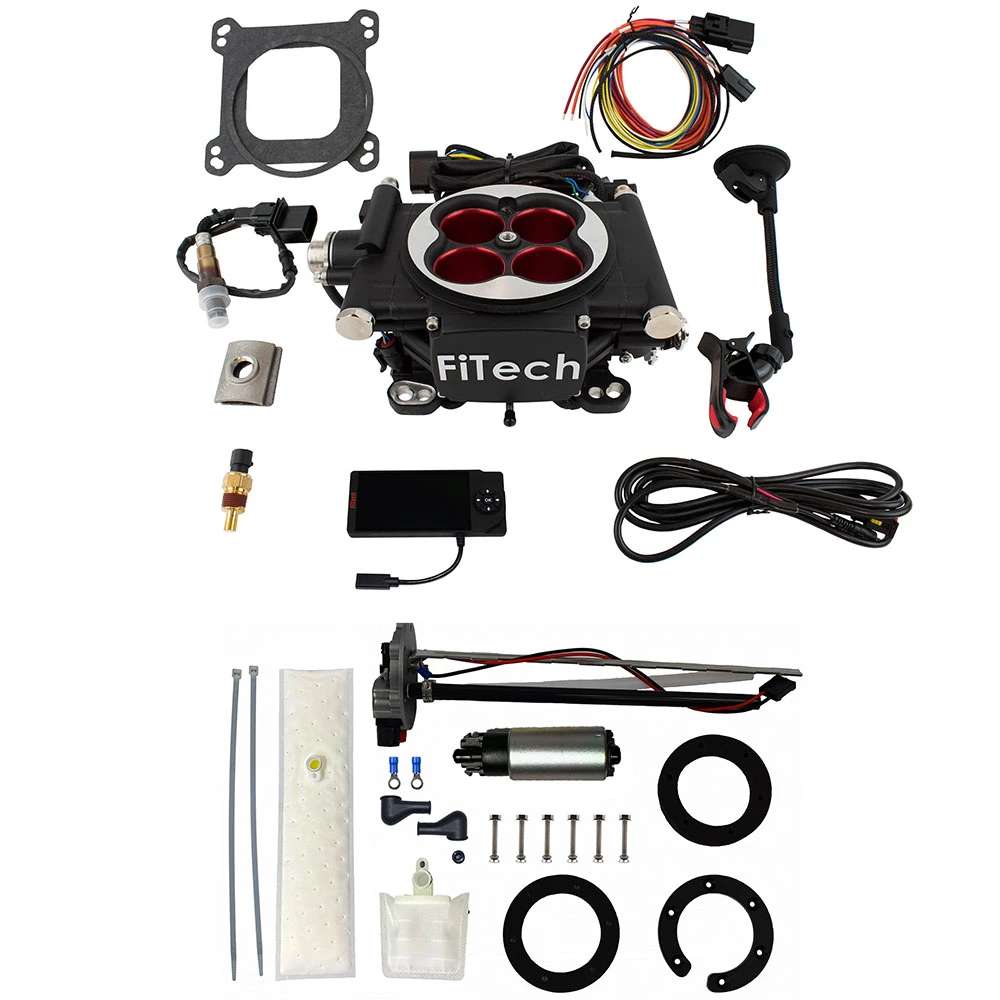

FiTech EFI4 600HP Power Adder Matte Black w/In-Tank Master Kit (36104)
The FiTech EFI4 600HP Power Adder Matte Black w/In-Tank Master Kit (36104) is a comprehensive electronic fuel injection master kit designed to replace traditional carburetors in performance engines. This kit provides a complete solution, including an in-tank fuel pump, sensors, and a self-tuning ECU, making it ideal for engines utilizing boost or nitrous oxide.
KEY FEATURES AND BENEFITS:
This system supports up to 600 horsepower and is compatible with power adders like turbochargers, superchargers, and nitrous oxide.
It features a 4-barrel throttle body with 850 CFM airflow and 80 lbs/hr injectors.
Included is a 4.5-inch display for monitoring and adjustments.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Yes
Power Adder Compatibility: Boost/Nitrous oxide
ECU Included: Yes
Fuel Pump: In-tank
Metering Style: Speed density (MAP-N)
Throttle Body: 4-barrel square bore, 850 CFM
Injector Size: 80 lbs/hr
Sensors: MAP, IAT, TPS, O2
Display: 4.5-inch
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Fuel System Installation: Install the in-tank fuel pump module within the fuel tank. Connect the fuel lines and ensure proper sealing.
Throttle Body Mounting: Mount the 4-barrel throttle body onto the intake manifold using the provided gasket.
Sensor Installation: Install the MAP, IAT, TPS, and O2 sensors in their designated locations.
Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors, following the provided wiring diagram.
ECU Mounting: Mount the ECU in a suitable location within the vehicle.
Display Connection: Connect the 4.5-inch display to the ECU.
Initial Setup: Power on the system and follow the on-screen prompts to configure basic settings.
Fine-Tuning (Optional): Use the display or laptop software to make any necessary adjustments.
BENEFITS OF USING THE FITECH EFI4 600HP POWER ADDER MATTE BLACK W/ IN-TANK MASTER KIT (36104):
Improved fuel efficiency compared to traditional carburetors.
Enhanced engine performance and throttle response.
Self-tuning capabilities minimize the need for manual adjustments.
Compatibility with power adders allows for performance upgrades.
850 CFM airflow capacity for high-performance engines.
80 lbs/hr injectors to support high horsepower applications.
Speed density (MAP-N) metering for accurate fuel calculations.
4.5-inch display for real-time monitoring and adjustments.
Compatible with multiple fuel types.
Ability to control timing.
Included pro-tuning laptop software.
Product identification
- Brand: FiTech
- Model / MPN: 36104
