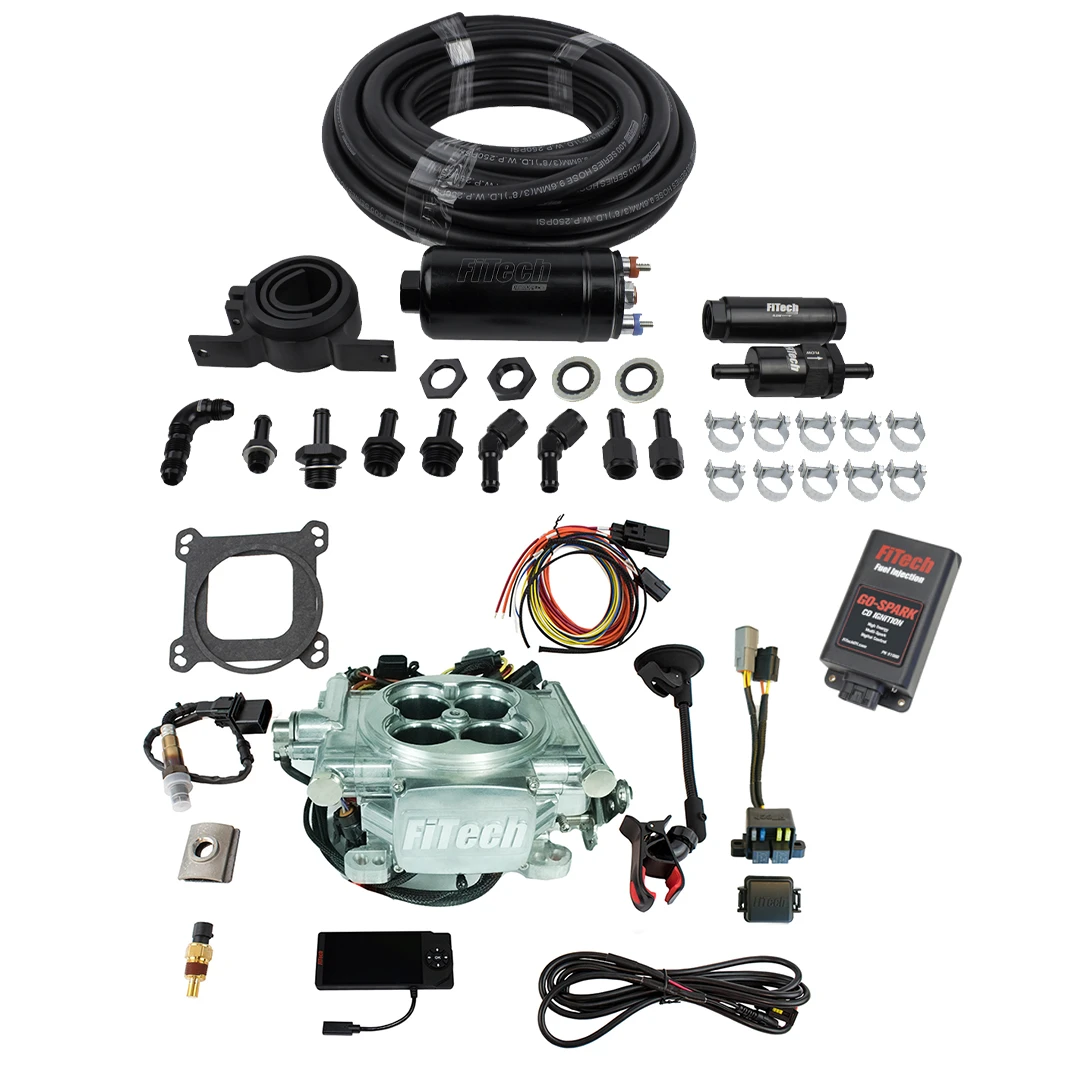

FiTech EFI 4 600HP Power Adder Bright Alum w/Inline Fuel & CDI (93106)
The FiTech EFI 4 600HP Power Adder Bright Alum w/ Inline Fuel & CDI (93106) is engineered for performance enthusiasts seeking precise fuel and ignition control. This kit transforms your 4-barrel carburetor setup into a modern electronic fuel injection system, supporting engines producing 200 to 600 horsepower. Designed for use with boosted or nitrous-assisted applications, this system provides self-tuning capabilities and advanced control features.
KEY FEATURES AND BENEFITS:
2.5 BAR Internal MAP Sensor: Suitable for boosted applications up to 25 lbs of boost.
Precise Timing Control: Compatible with boost and nitrous for optimized performance.
Enhanced Ignition Performance: Go Spark CDI box included for improved ignition.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
Power Adder Compatible: Yes (Boost/Nitrous oxide)
ECU Included: Yes (Integrated)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore (4150 Flange)
Venturi Quantity: 4
Venturi Diameter: 43.00 mm
Airflow Rate: 850 CFM
Injector Size: 80 lbs/hr
Fuel Type: Alcohol, Gasoline, Methanol, Flex
MAP Sensor: Included
IAT Sensor: Included
TPS Sensor: Included
Oxygen Sensor: Included
CDI Box: Included (Go Spark)
Compatibility: Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, etc. engines making 200 HP up to 600 HP with a 4-barrel intake manifold
Preparation: Remove your existing 4-barrel carburetor and associated components.
Installation: Mount the FiTech throttle body onto your 4-barrel intake manifold.
Wiring: Connect the wiring harness to the engine sensors, ignition system (CDI box), and power supply.
Fuel System: Install the in-line fuel pump and plumb the fuel lines to the throttle body.
Sensor Connections: Attach the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor to their respective locations.
CDI Installation: Mount and wire the Go Spark CDI box according to the instructions.
Initial Setup: Use the handheld controller to enter basic engine parameters.
Self-Tuning: Start the engine and allow the system to self-learn and adjust fuel and timing.
Fine Tuning (Optional): Use the pro-tuning laptop software for advanced adjustments.
BENEFITS OF USING THE FITECH EFI 4 600HP POWER ADDER BRIGHT ALUM W/INLINE FUEL & CDI (93106):
Improved Fuel Efficiency: Enhances overall performance and economy.
Precise Control: Over fuel and ignition timing for optimal performance.
Simplified Installation: Self-tuning capabilities streamline setup.
Reliable Operation: Functions effectively in boosted and nitrous-assisted applications.
Annular Swirl Discharge Fuel Distribution: For improved fuel atomization.
Integrated ECU: Within the throttle body for compact design.
Hand-Held Controller: Features a touchscreen interface for easy operation.
Dual Fan Control Outputs: For enhanced cooling management.
Support for Wet Nitrous Applications: Allows control over A/F and ignition timing.
User-Adjustable Rev Limiter: For customizable performance limits.
Real-Time Data Monitoring: Via the hand-held controller for immediate feedback.
Product identification
- Brand: FiTech
- Model / MPN: 93106
