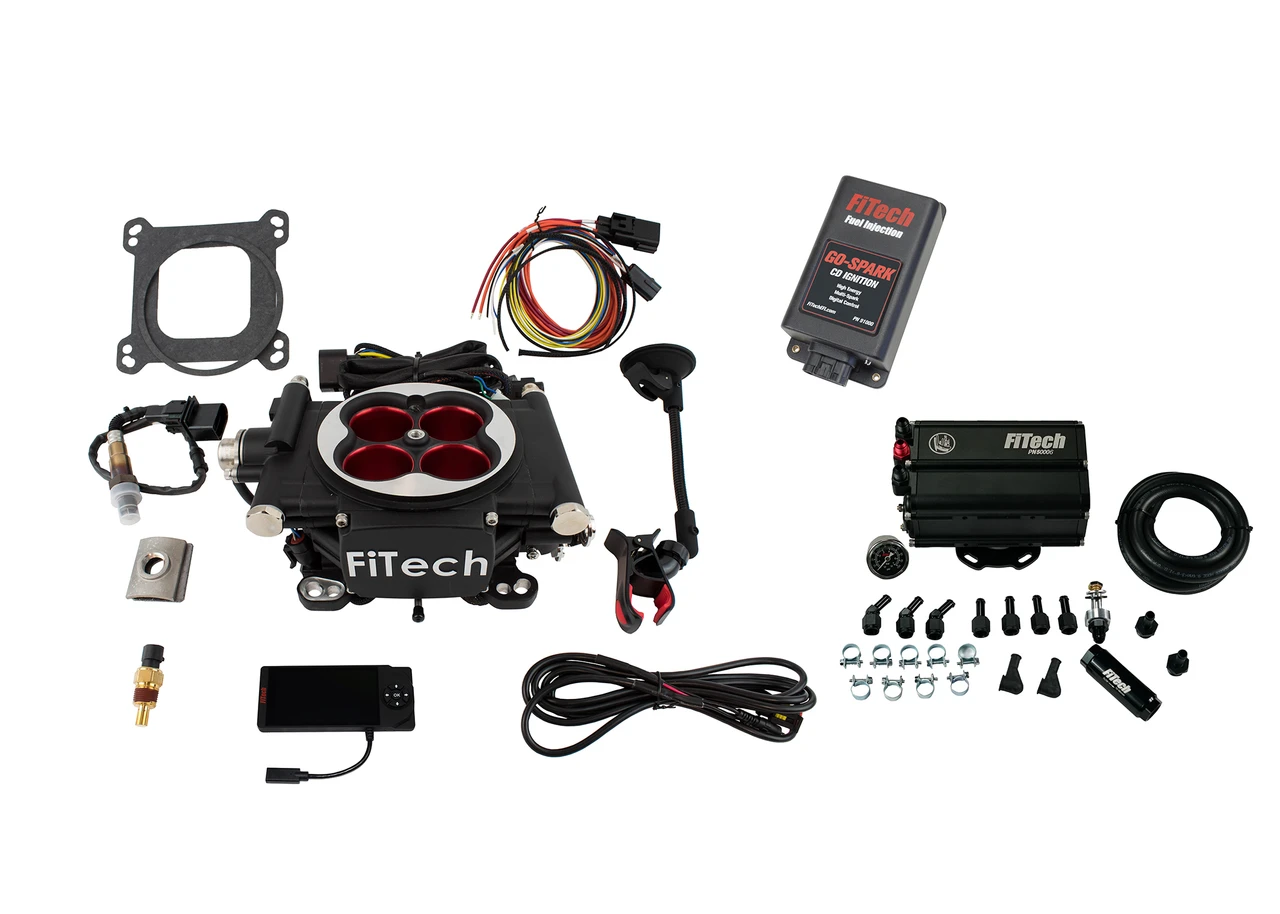

FiTech EFI 4 600 HP Power Adder Matte Black w/Force Fuel & CDI (93554)
KEY FEATURES AND BENEFITS:
Self-Tuning Capability: Simplifies installation and tuning for optimal performance.
Power Adder Compatibility: Designed for engines with turbochargers, superchargers, and nitrous oxide.
High Horsepower Rating: Supports engines producing up to 600 horsepower.
Force Fuel System: Ensures consistent fuel pressure for reliable performance.
Go Spark CDI Box: Provides enhanced ignition control for improved combustion.
Direct 4-Barrel Replacement: Easily replaces existing 4-barrel carburetors.
Boost and Nitrous Timing Control: Allows for precise timing adjustments under boost or nitrous conditions.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Yes
Power Adder Compatibility: Yes (Boost/Nitrous oxide)
ECU Included: Yes
Fuel Pump Included: Yes (External)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter: 43.00mm
Airflow Rate: 850 cfm
Injector Size: 80 lbs/hr
Fuel Pump Flow Rating: 340 lph
MAP Sensor Rating: 2.5 BAR
Fuel Type: Gasoline, Methanol, Alcohol, Flex
Compatibility: Fits Chevrolet, Pontiac, Ford, Chrysler, Dodge, Plymouth, and other engines using a 4-barrel intake manifold.
Remove Existing Carburetor: Detach the current 4-barrel carburetor from the intake manifold.
Install FiTech Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
Connect Sensors: Attach the O2 sensor, CTS sensor, MAP sensor, IAT sensor, and TPS sensor to their respective locations.
Install Force Fuel System: Mount the Force Fuel surge tank and connect the fuel lines to the fuel pump and throttle body.
Connect Wiring Harness: Connect the wiring harness to the ECU and all necessary sensors and components.
Install Go Spark CDI Box: Install the CDI box and connect it to the ignition system.
Connect Handheld Controller: Plug in the handheld controller to the ECU for initial setup and tuning.
Initial Setup: Use the handheld controller to input engine parameters and initiate the self-tuning process.
Fine-Tune (Optional): Use the Pro-tuning laptop software for advanced tuning adjustments.
BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER MATTE BLACK W/ FORCE FUEL & CDI (93554):
Enhanced Performance: Increases horsepower and torque output significantly.
Simplified Tuning: Self-tuning feature reduces setup time and complexity.
Enhanced Ignition Control: The Go Spark CDI box improves spark timing and strength for better performance.
Support for High Boost Applications: Designed to handle increased demands from power adders.
Ability to Control Timing and Fuel with Nitrous: Facilitates effective use of nitrous oxide systems.
Annular Swirl Discharge: Provides effective fuel distribution for improved performance.
Built-in Pressure Regulator: Ensures optimal fuel pressure for the system.
Dual Fan Control Outputs: For managing engine cooling effectively.
Matte Black Finish: Stylish and durable coating on the throttle body.
Handheld Controller Interface: For easy setup and monitoring of engine parameters.
Pro Tuning Software: Allows for advanced tuning options and adjustments.
Includes All Required Sensors: For complete installation and functionality.
Product identification
- Brand: FiTech
- Model / MPN: 93554
