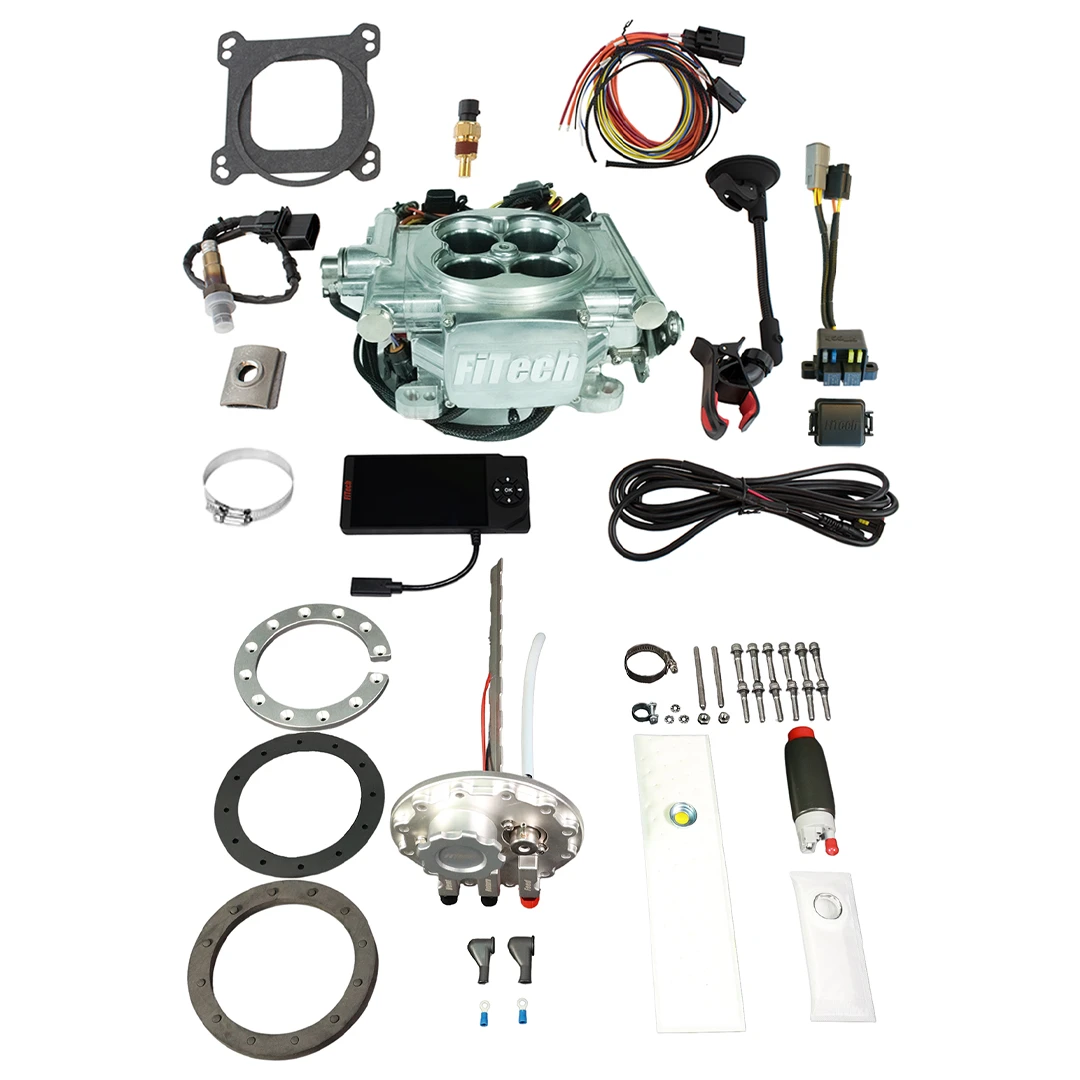

FiTech EFI 4 600 HP Power Adder Aluminum w/In-Tank Module (36306)
The FiTech EFI 4 600 HP Power Adder Aluminum w/In-Tank Module (36306) offers a comprehensive upgrade for your engine's fuel management. This kit combines an electronic fuel injection (EFI) system with an in-tank fuel pump module, providing a complete solution for improved performance and reliability. Designed for engines up to 600 horsepower, this system simplifies the transition from carburetors to EFI, offering self-tuning capabilities and user-friendly adjustments.
KEY FEATURES AND BENEFITS:
Complete Conversion Kit: Includes everything needed for a full EFI conversion.
Engine Compatibility: Supports 4, 6, and 8-cylinder engines with up to 600 HP, compatible with power adders like turbos and nitrous.
Self-Tuning ECU: Automatically adjusts fuel and timing for optimal performance.
Handheld Controller: Allows for on-the-fly adjustments and data logging.
Replaceable Sensors: Utilizes easily replaceable GM-type sensors and Bosch wideband oxygen sensors.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control: Yes
Power Adder Compatible: Yes (Boost/Nitrous oxide)
ECU Included: Yes
Fuel Pump: In-tank
Metering: Speed density (Map-N)
Throttle Body: 4-barrel square bore, 850 cfm, cast aluminum
Injectors: 80 lbs./hr.
Fuel Pump: 340 LPH, 58-psi regulator
Install the in-tank fuel pump module into your fuel tank or fuel cell.
Mount the FiTech throttle body onto your 4-barrel intake manifold.
Connect the wiring harness to the appropriate sensors and power sources.
Install the oxygen sensor into the exhaust system.
Connect the handheld controller and follow the on-screen instructions for initial setup.
Start the engine and allow the system to self-learn and adjust fuel and timing parameters.
Use the handheld controller to monitor and fine-tune settings as needed.
BENEFITS OF USING THE FITECH EFI 4 600 HP POWER ADDER ALUMINUM W/ IN-TANK MODULE (36306):
Improved Performance: Increases horsepower and torque for enhanced engine performance.
Simplified Tuning: Self-learning capabilities simplify the tuning process.
Easy Monitoring: Facilitates easy monitoring and adjustment through the handheld controller.
Reduced Fuel Issues: Minimizes the risk of fuel-related problems.
Internal MAP Sensor: For accurate readings and adjustments.
Fan Control: Adjustable fan control switches for effective cooling management.
A/C Idle Speed Input: Ensures stable idle when air conditioning is in use.
Secure Connections: Uses -06 AN fuel inlet fittings for reliable connections.
Diagnostic Readouts: OBD II fault code readouts for easy diagnostics.
Atomization Technology: Wet flow swirl spray for improved fuel atomization.
Fuel Type Versatility: Compatible with Alcohol, Gasoline, Methanol, and Flex fuels.
Fuel Pump Module: Features a 2” fuel fill built into the fuel pump module.
Product identification
- Brand: FiTech
- Model / MPN: 36306
