FiTech fuel pump details

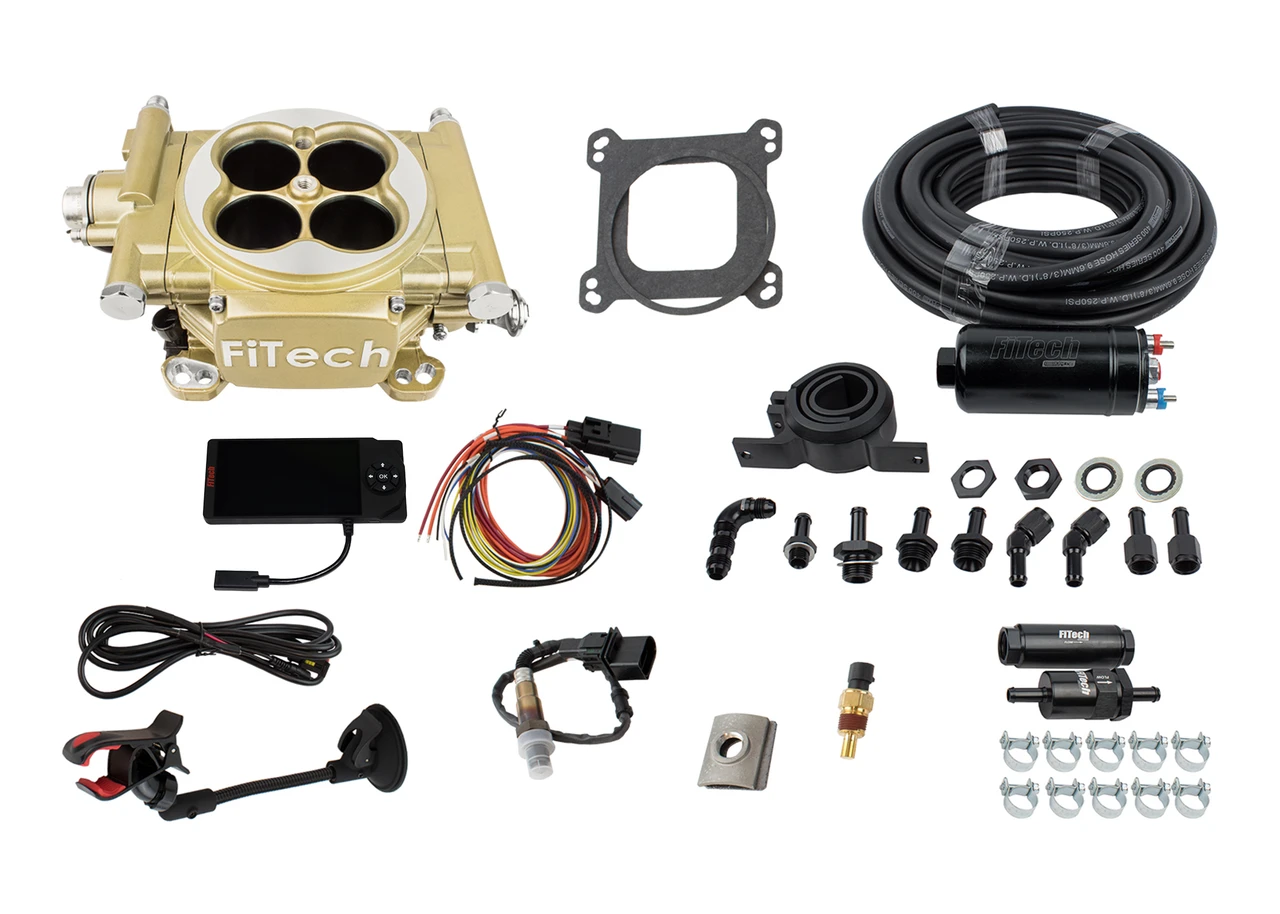

FiTech Easy Street EFI System Gold w/ Inline Fuel Pump (31005)
KEY FEATURES AND BENEFITS:
Self-Tuning EFI: Replaces traditional 4-barrel carburetors for enhanced performance.
Horsepower Compatibility: Designed for engines producing 200 to 600 HP.
Improved Efficiency: Offers better fuel efficiency and throttle response.
Easy Installation: Pre-programmed ECU allows for straightforward setup and compatibility with various ignition systems.
Horsepower Range: 200-600 HP
Throttle Body: 850 CFM, 4-barrel square bore
Injectors: 80 lbs/hr
Fuel Pump: 255 LPH external inline pump
ECU: Self-tuning, included
Sensors: Wideband O2, MAP, IAT, TPS
Fuel Type: Gasoline, alcohol, methanol, flex fuel
Timing Control: None
Transmission Control: None
Remove Existing Carburetor: Detach the current 4-barrel carburetor from the intake manifold.
Install FiTech Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
Connect Fuel System: Install the inline fuel pump, fuel filters, and fuel hoses, connecting them to the fuel tank and throttle body.
Wire ECU and Sensors: Connect the ECU wiring harness to the necessary sensors (O2, MAP, IAT, TPS) and ignition system.
Connect Tach Signal: Connect the tach signal wire to the coil, HEI, or CDI ignition system.
Connect Power and Ground: Connect the power and ground wires from the ECU to the vehicle's electrical system.
Initial Setup: Use the handheld controller to input basic engine parameters.
Fine-Tune (Optional): Use the handheld controller to make minor adjustments as needed.
BENEFITS OF USING THE FITECH EASY STREET EFI SYSTEM GOLD W/ INLINE FUEL PUMP (31005):
Improved Efficiency: Better fuel efficiency compared to carburetors.
Smoother Operation: Delivers a smoother idle and enhanced throttle response.
Simplified Installation: Features self-tuning technology for easy setup.
Comprehensive Kit: Comes with all necessary components for installation.
Reliable Performance: Designed for classic and retrofit vehicles.
Pre-Programmed ECU: Ready for immediate operation.
Ignition Compatibility: Accepts tach signals from various ignition types.
Accurate Monitoring: Includes a wideband O2 sensor for precise fuel management.
External Fuel Pump: Comes with an inline fuel pump and filters.
Gold Cast Aluminum Throttle Body: Durable and efficient design.
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N).
Venturi Diameter: 43mm for efficient airflow.
Product identification
- Brand: FiTech
- Model / MPN: 31005
