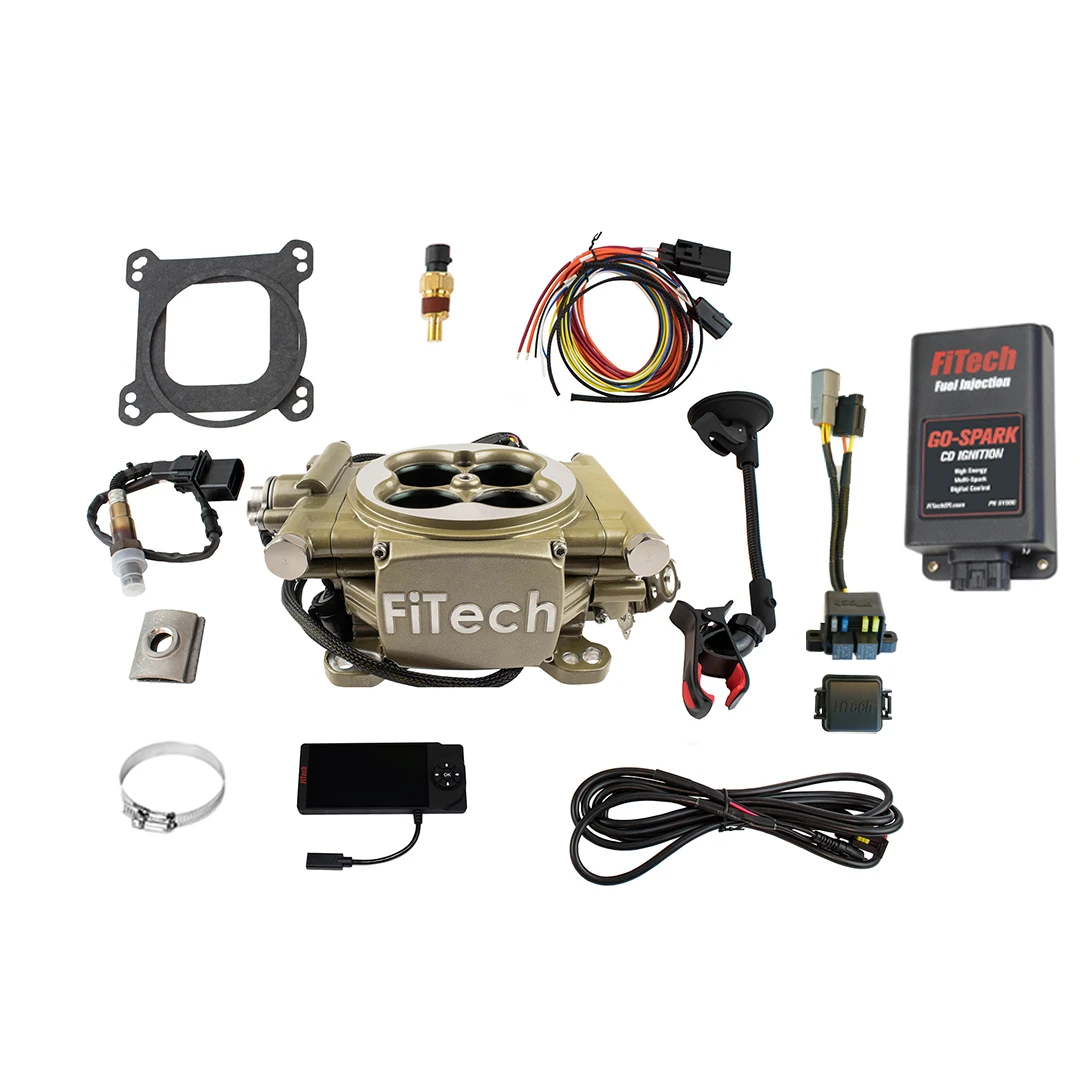

FiTech Easy Street EFI 600HP Classic Gold w/CDI Box (93005)
KEY FEATURES AND BENEFITS:
Included Go-Spark CDI: Upgrades ignition spark for improved combustion.
850 CFM Throttle Body: Provides ample airflow for high-performance engines.
Handheld Tuning Module: Enables user adjustments and monitoring.
Easy Installation: Designed for a simplified conversion process.
Gold Finish: Offers a classic aesthetic.
Compatibility: Works with gasoline, alcohol, methanol, and E85.
Maximum Horsepower: 600 HP
Injection Style: Throttle Body
Throttle Body Mounting Flange: 4-barrel square bore (4150)
Airflow Rate: 850 CFM
Injector Size: 80 lbs/hr
Venturi Diameter: 43.00mm (Please verify this measurement prior to purchase.)
Metering Style: Speed density (MAP-N) and Speed Throttle (Alpha-N)
ECU: On-throttle body
Ignition: Go-Spark CDI included
Display: 4.5 inch handheld
Fuel Compatibility: Gasoline, Alcohol, Methanol, E85
Fan Control: Controls one fan.
Install the Throttle Body: Mount the FiTech throttle body onto the intake manifold using the 4150 flange.
Connect Sensors: Attach the included oxygen, MAP, IAT, and TPS sensors to their respective locations.
Wire the Harness: Connect the wiring harness to the ECU and engine components, following the provided instructions.
Install the CDI Box: Mount and wire the included FiTech Go-Spark CDI ignition box.
Connect Power and Ground: Ensure proper power and ground connections for the system.
Install Oxygen Sensor: Install the wide band oxygen sensor in the exhaust.
Initial Setup: Use the handheld controller to input basic engine parameters.
Fine-Tune (Optional): Use the handheld controller to make any necessary adjustments.
BENEFITS OF USING FiTECH EASY STREET EFI 600HP CLASSIC GOLD W/CDI BOX (93005):
Improved Fuel Efficiency: Compared to traditional carburetors.
Enhanced Engine Performance: Improved responsiveness.
Simplified Installation: Reduced complexity during setup.
Consistent Performance: Across varying conditions.
User-Friendly Tuning Capabilities: Easy to adjust settings.
Improved Spark Quality: From the included CDI box.
Works with Multiple Fuel Types: Offering flexibility in fuel choice.
Annular Discharge Design: For better atomization.
On-Board Fuel Pump Driver: With PWM control.
Pre-Programmed for Bolt-N-Go Functionality: Easy setup right out of the box.
Easy Tach Input: Compatible with various ignition systems.
Wide Band Oxygen Sensor: With mounting kit included.
Cast Aluminum Throttle Body Construction: Durable and efficient.
Ability to Control One Electric Fan: For better cooling management.
Product identification
- Brand: FiTech
- Model / MPN: 93005
