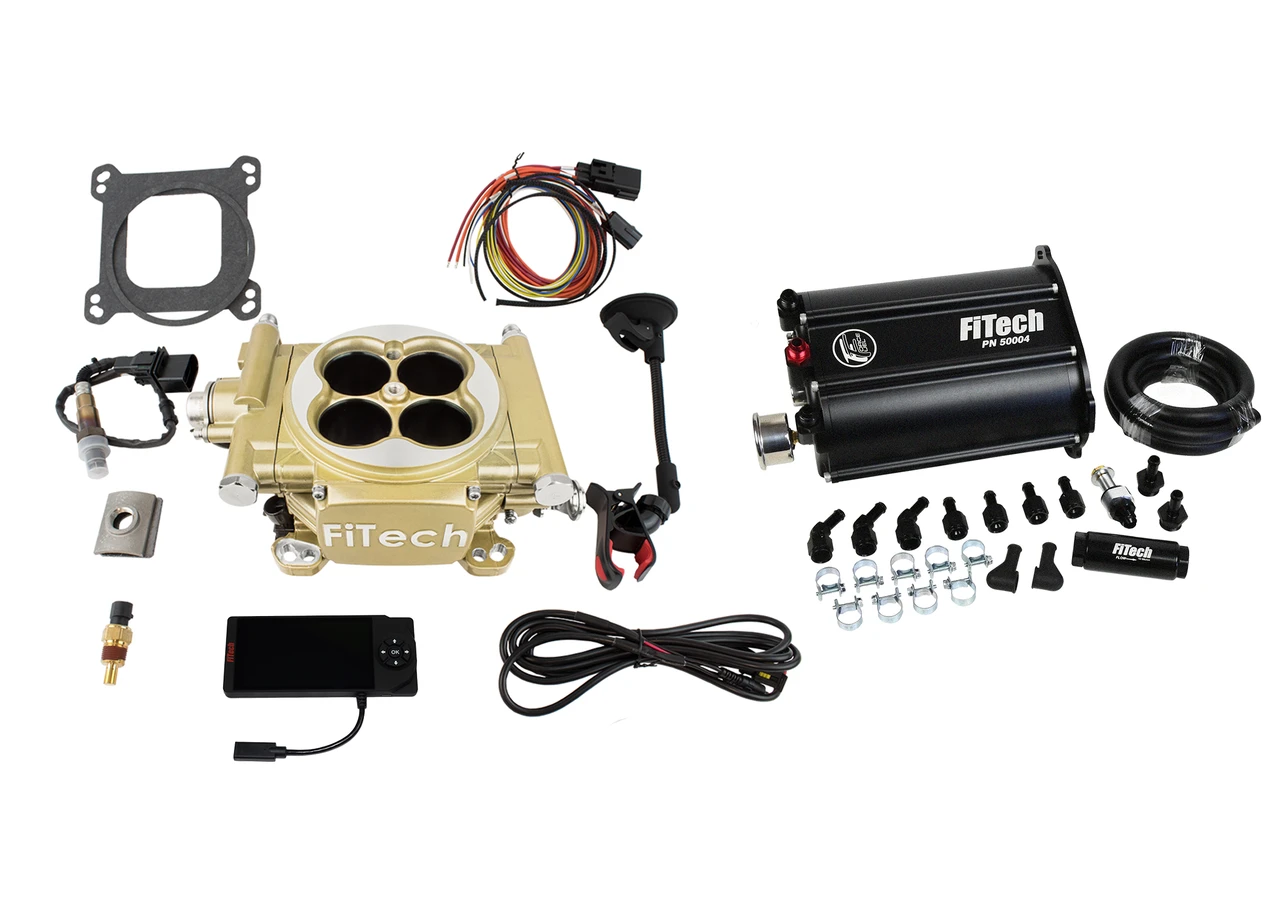

FiTech Easy Street 600HP EFI Kit w/ Force Fuel (35205)
KEY FEATURES AND BENEFITS:
600 HP Rating: Suitable for high-performance, naturally aspirated engines.
Self-Tuning ECU: Continuously adjusts fuel for optimal performance.
Throttle Body Design: 4-barrel square bore flange for easy installation on standard manifolds.
Complete Kit: Includes all necessary components for installation.
Maximum Horsepower: 600 HP (gasoline)
Throttle Body: 4-barrel square bore, 850 CFM, 43mm venturi
Injectors: 80 lbs./hr.
Fuel Pump: 340 LPH (Force Fuel) or 255 LPH (Mini Force Fuel), 58 psi regulated
ECU: Self-tuning, speed density (MAP-N)
Display: 4.5 in.
Fuel Type: Alcohol, gasoline, methanol, flex.
Preparation: Disconnect the battery and remove the existing carburetor.
Installation of Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
Force Fuel System Installation: Mount the Force Fuel system in a suitable location and connect the fuel lines.
Wiring Connections: Connect the wiring harness to the ECU, sensors (oxygen, MAP, IAT, TPS), and fuel pump.
Sensor Installation: Install the oxygen sensor in the exhaust system and connect the coolant sensor.
ECU Setup: Connect the handheld controller to the ECU and follow the on-screen instructions for initial setup.
Initial Start-Up: Start the engine and allow the ECU to self-tune.
Fine Tuning: Use the handheld controller to make any necessary adjustments.
BENEFITS OF USING THE FITECH EASY STREET 600HP EFI KIT W/ FORCE FUEL (35205):
Improved fuel efficiency compared to carbureted systems.
Enhanced engine performance and throttle response.
Simplified installation with the Force Fuel system.
Self-tuning capability reduces the need for manual adjustments.
Gold Finish Throttle Body: Attractive design for a premium look.
Integrated Handheld Controller: 4.5-inch display for monitoring and adjustments.
Complete Sensor Package: Includes MAP, IAT, TPS, and oxygen sensors.
Fuel Injectors: 80 lbs./hr fuel injectors included.
Internal Fuel Pressure Regulator: For consistent fuel pressure.
Speed Density Fuel Metering: For accurate fuel management.
Product identification
- Brand: FiTech
- Model / MPN: 35205
