FiTech Easy Street 600 HP Gold EFI w/ 255 LPH Pump & CDI Kit (96505)

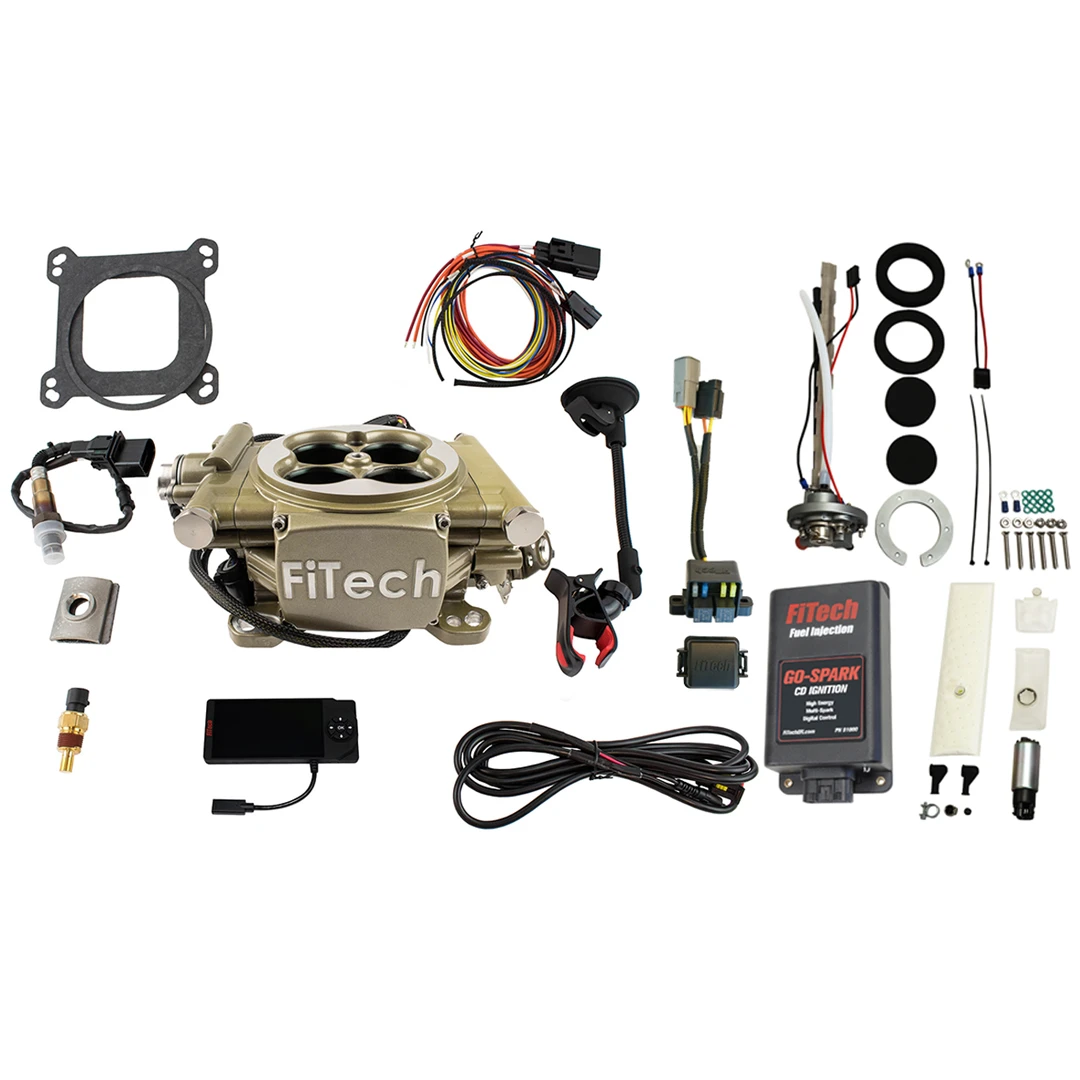

The FiTech Easy Street 600 HP Gold EFI w/ 255 LPH Pump & CDI Kit (96505) offers a complete solution for converting carbureted engines to modern electronic fuel injection (EFI). This kit supports engines up to 600 horsepower and features a self-learning ECU that automatically adjusts the fuel mixture for optimal performance. Key benefits include improved starting, idle quality, and throttle response. The kit includes an in-tank regulated fuel pump module (255 lph), a Go-Spark CD ignition box for enhanced spark performance, and a 4.5-inch handheld controller for easy tuning and monitoring. The system uses a throttle body injection (TBI) design, making installation straightforward on a standard 4-barrel square bore intake manifold.
KEY FEATURES AND BENEFITS:
Converts carbureted engines to EFI for improved performance and efficiency.
Supports up to 600 horsepower, making it suitable for high-performance applications.
Self-learning ECU automatically adjusts the fuel mixture for optimal engine performance.
Enhanced starting, idle quality, and throttle response.
Includes a Go-Spark CD ignition box for improved spark and combustion.
4.5-inch handheld controller for easy tuning and monitoring.
Throttle body injection (TBI) design for simplified installation.
Compatible with gasoline, methanol, alcohol, and flex fuel.
Maximum Horsepower: 600 HP
Fuel Injection Style: Throttle body
Ignition System: Go-Spark CD ignition box
Throttle Body: 850 cfm, 4-barrel square bore
Injectors: 80 lbs./hr
ECU: Self-learning
Display: 4.5-inch handheld controller
Venturi Diameter: 44.00mm
Sensors: Oxygen (O2), Manifold Absolute Pressure (MAP), Intake Air Temperature (IAT), Throttle Position (TPS), Idle Air Control (IAC)
Fuel Compatibility: Gasoline, Methanol, Alcohol, Flex fuel
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Installation of Throttle Body: Mount the FiTech 96505 throttle body onto the 4-barrel square bore intake manifold using the provided gasket and hardware.
Sensor Installation: Install the provided sensors (O2, MAP, IAT, TPS, IAC) in their designated locations.
Wiring Harness Connection: Connect the wiring harness to the throttle body, sensors, ignition box, and fuel pump according to the provided instructions.
Go-Spark Ignition Connection: Connect the Go-Spark ignition box according to the instructions.
ECU and Handheld Controller Connection: Connect the ECU and handheld controller to the wiring harness.
Initial Setup: Power on the system and use the handheld controller to input basic engine parameters.
Self-Learning Process: Start the engine and allow the self-learning ECU to adjust the fuel mixture. Monitor the system using the handheld controller.
Final Adjustments: After the self-learning process, make any necessary fine-tuning adjustments using the handheld controller.
BENEFITS OF USING FITECH EASY STREET 600 HP GOLD EFI W/ 255 LPH PUMP & CDI KIT (96505):
Improved engine performance and efficiency.
Enhanced starting and idle quality.
Automatic fuel mixture adjustments for optimal performance.
Simplified installation compared to traditional EFI systems.
Modern fuel injection technology for classic or performance vehicles.
More consistent engine performance across various weather conditions.
Gold finish cast aluminum throttle body.
850 cfm airflow capacity.
80 lbs./hr fuel injectors.
Go-Spark CD ignition for improved spark.
Self-learning ECU.
Compatible with various fuel types.
Speed density (MAP-N) metering style.
All required sensors are included.
Product identification
- Brand: FiTech
- Model / MPN: 96505
