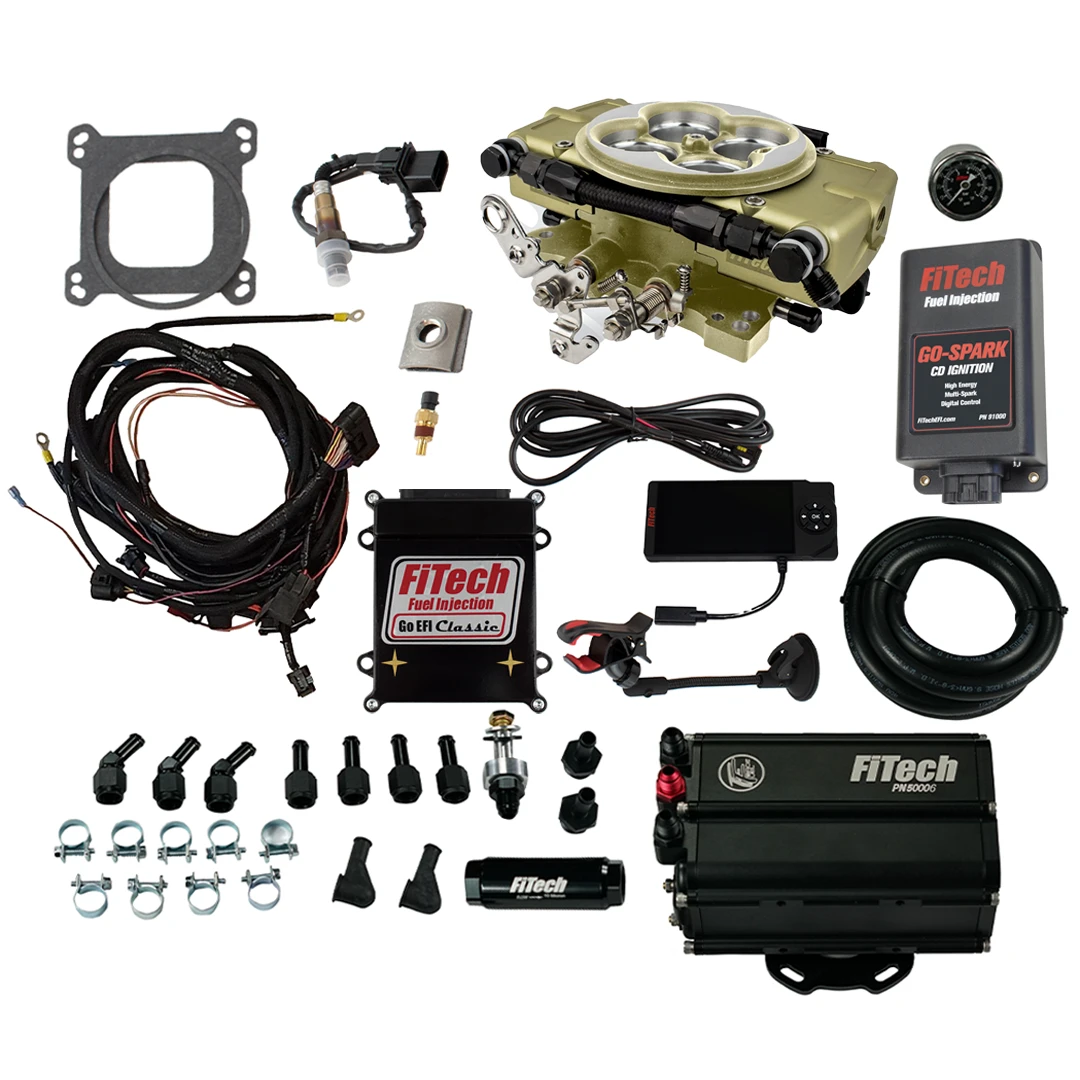

FiTech Classic Gold 650HP EFI Master Kit w/ CDI Box (93558)
KEY FEATURES AND BENEFITS:
This kit is designed for those who desire the vintage aesthetic of a classic carburetor while gaining the modern performance benefits of EFI.
The self-tuning capability of the system allows for easy setup and adjustments, while the included Go-Spark CDI ignition provides a strong spark for improved combustion.
The Force Fuel Mini surge tank ensures consistent fuel pressure, preventing fuel starvation and supporting high-performance applications.
The complete package allows for a straightforward conversion from carburetor to EFI.
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 650 HP
Timing Control Compatible: No
ECM Included: Yes
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: Surge tank
Ignition System Included: Ignition box
User Interface Included: 4.5 in. display
Metering Style: Speed density
Throttle Body Mounting Flange: 4-barrel square bore
Airflow Rate (cfm): 950 cfm
Injector Size (lbs/hr): 80 lbs./hr.
Remove Existing Carburetor: Disconnect the fuel lines, linkages, and any other components connected to the existing carburetor. Remove the carburetor from the intake manifold.
Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gaskets and hardware. Connect the throttle linkage and any necessary vacuum lines.
Install Sensors: Mount the included oxygen sensor in the exhaust system. Install the MAP sensor, IAT sensor, TPS sensor, and IAC motor as per the instructions.
Install Fuel System: Mount the Force Fuel Mini surge tank in a suitable location. Connect the fuel lines to the tank, fuel filter, and throttle body, ensuring proper routing and secure connections.
Install Go-Spark Ignition: Install the Go-Spark CDI ignition box and connect it to the distributor, coil, and power source according to the instructions.
Connect Wiring Harness: Connect the FiTech wiring harness to the sensors, injectors, ECU, and ignition system. Ensure all connections are secure and properly routed.
Mount ECU and Display: Mount the ECU in a suitable location, away from excessive heat and moisture. Connect the 4.5-inch display to the ECU for monitoring and adjustments.
Fine-Tuning (Optional): If desired, use the 4.5-inch display to fine-tune the EFI system parameters for optimal performance.
BENEFITS OF USING THE FITECH CLASSIC GOLD 650HP EFI MASTER KIT W/ CDI BOX (93558):
Improved engine performance and throttle response.
Enhanced fuel efficiency and reduced emissions.
Smoother idle and better cold-start performance.
Easy installation and self-tuning capabilities.
Modern EFI performance with a classic carburetor appearance.
Dual bolt pattern compatibility for various intake manifolds.
Compact ECU for discreet mounting.
Go-Spark CDI ignition for enhanced combustion.
Internal 340 lph fuel pump within the Force Fuel system.
Liquid-filled fuel pressure gauge included.
Ability to accept trigger signals from HEI, amplifier, points, or 2-wire non-magnetic pickup distributors.
80 lbs/hr fuel injectors.
44.00mm venturi diameter.
Gold cast aluminum throttle body.
Product identification
- Brand: FiTech
- Model / MPN: 93558
