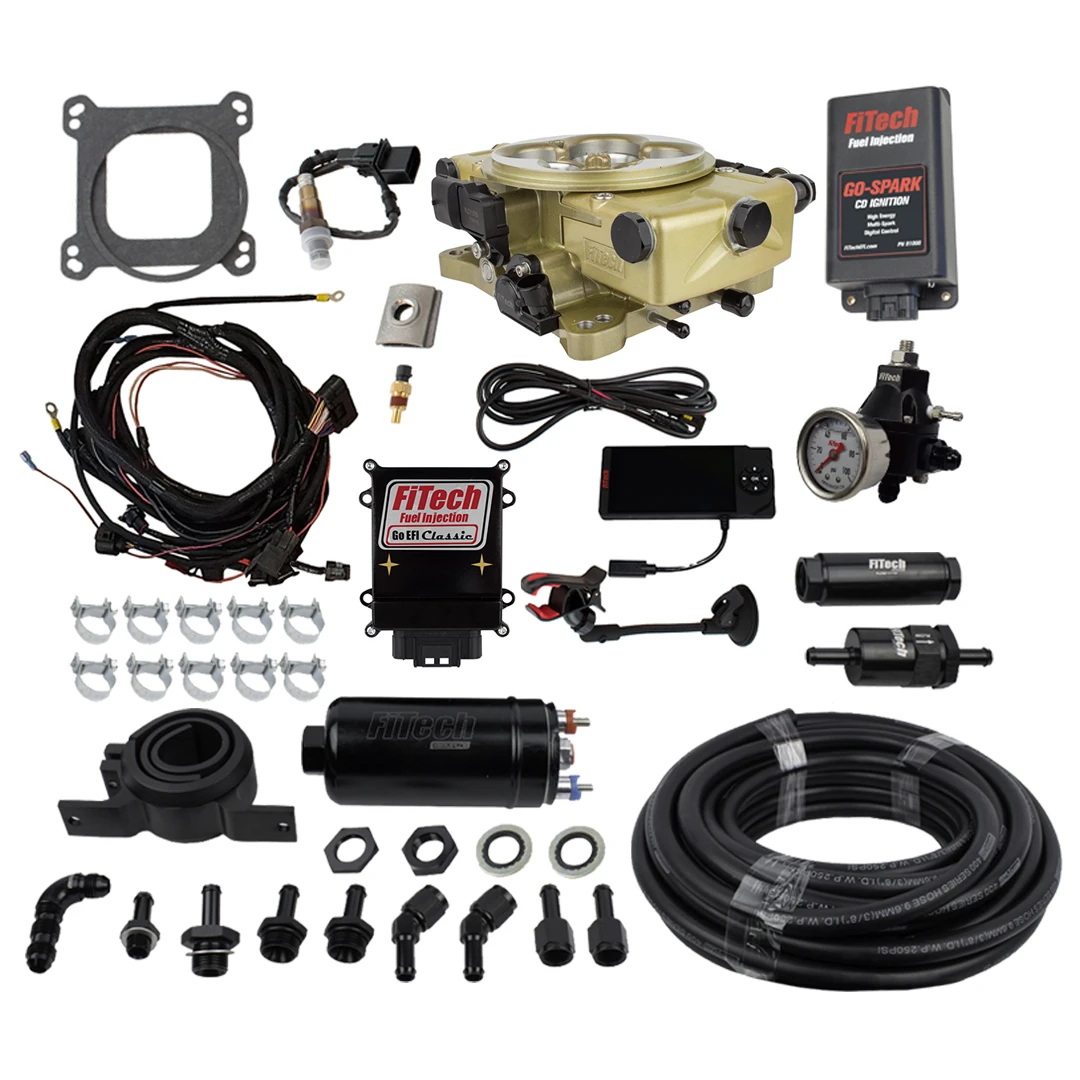

FiTech Classic Gold 650 HP EFI w/ Inline Pump, CDI & Regulator (93120)
KEY FEATURES AND BENEFITS:
The FiTech 93120 supports engines up to 650 horsepower, providing a significant upgrade in fuel efficiency and performance.
The included inline fuel pump kit ensures consistent fuel pressure.
The Go-Spark CDI ignition system enhances combustion and power output.
The classic gold finish of the throttle body adds a vintage touch to your engine bay.
This complete kit removes the need to buy multiple parts, providing a full system.
Maximum Horsepower: 650 HP
Fuel Injection Style: Throttle body
Throttle Body Flange: 4-barrel square bore (4150)
Airflow Rate: 950 CFM
Injector Size: 80 lbs./hr
Fuel Pump: 255 lph inline pump
Fuel Pressure Regulator: Adjustable 30-70 psi
ECU: Self-tuning, user-tunable
Ignition: Go-Spark CDI
Display Size: 4.5 inches
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Installation: Mount the FiTech throttle body onto the intake manifold using the provided gaskets and hardware.
Fuel System Setup: Install the inline fuel pump, filters, and regulator, connecting the fuel lines as per the instructions.
Wiring: Connect the wiring harness to the necessary sensors (oxygen, MAP, IAT, TPS, IAC) and the vehicle's electrical system.
Ignition Setup: Install the Go-Spark CDI ignition system, connecting it to the distributor and coil.
Sensor Connections: Connect all sensors to the wiring harness.
ECU Mounting: Mount the ECU in a suitable location, ensuring it is protected from heat and moisture.
Display Connection: Connect the 4.5-inch display to the ECU.
Initial Setup: Follow the on-screen prompts on the display to input engine parameters and start the self-tuning process.
Testing and Adjustment: Start the engine and allow the system to self-learn. Fine-tune as needed using the display interface.
BENEFITS OF USING THE FITECH CLASSIC GOLD 650 HP EFI W/ INLINE PUMP, CDI & REGULATOR (93120):
Improved fuel efficiency and performance.
Elimination of carburetor-related issues like flooding and vapor lock.
Enhanced cold start performance.
Simplified installation with self-tuning capabilities.
Classic look with modern performance.
Integrated ECU for a clean engine bay appearance.
Wideband oxygen sensor for precise air-fuel ratio monitoring.
Adjustable fuel pressure regulator with gauge for accurate settings.
Dual bolt pattern throttle body for compatibility with various intake manifolds.
Included inline fuel pump system.
4.5-inch user interface display.
80 pound per hour fuel injectors.
Product identification
- Brand: FiTech
- Model / MPN: 93120
