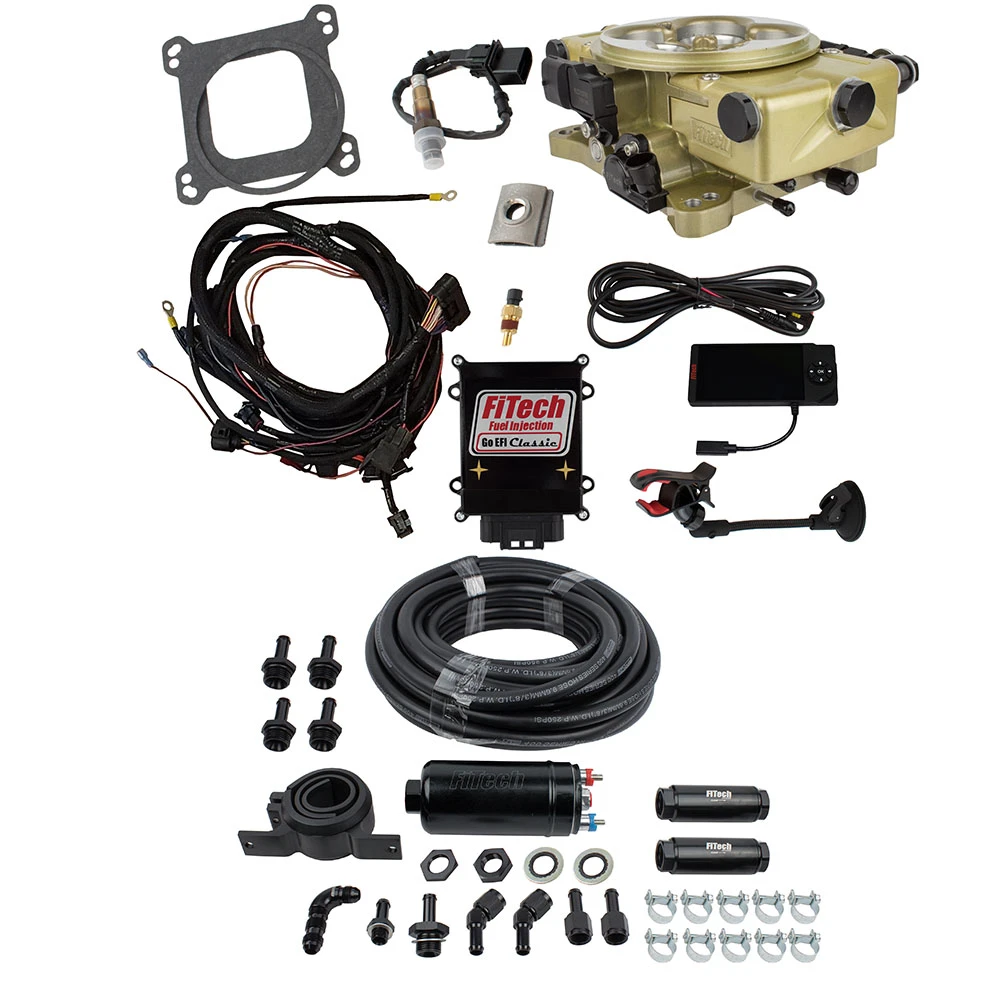

FiTech Classic Gold 650 HP EFI w/ Inline Delivery & Regulator (31020)
KEY FEATURES AND BENEFITS:
Classic Carburetor Appearance: The throttle body is designed to mimic the look of a traditional 4-barrel carburetor, preserving the aesthetic of classic engines.
650 HP Support: This system is capable of supporting engines producing up to 650 horsepower, making it suitable for a wide range of performance applications.
User-Friendly Interface: A 4.5-inch display provides real-time data and allows for easy system monitoring and adjustments.
Maximum Horsepower: 650 HP
Injection Style: Throttle body
Throttle Body Mounting Flange: 4-barrel square bore
Airflow Rate: 950 cfm
Injector Size: 80 lbs./hr.
Fuel Pump Style: External inline pump
Metering Style: Speed density (Map-N)
ECU Included: Yes
Fuel Pump Included: Yes
Remove Existing Carburetor: Carefully disconnect and remove the existing carburetor from the intake manifold.
Install Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided hardware.
Mount Fuel Pump and Regulator: Install the inline fuel pump and fuel pressure regulator in a suitable location, ensuring proper fuel line routing.
Connect Wiring Harness: Connect the wiring harness to the appropriate sensors and power sources, following the provided instructions.
Install Sensors: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor as directed.
Connect User Interface: Connect the 4.5-inch display to the ECU for system monitoring and adjustments.
Initial Setup: Follow the on-screen prompts to complete the initial setup and calibration process.
Fine Tuning: If needed, make minor adjustments using the user interface to optimize performance.
Improved fuel efficiency and performance compared to traditional carburetors.
Elimination of common carburetor issues such as flooding and vapor lock.
Simplified installation and setup with self-tuning capabilities.
Enhanced engine reliability and drivability.
Modern fuel injection with a classic look.
Dual bolt pattern throttle body for easy manifold mounting.
Included 255 lph external fuel pump.
Adjustable fuel pressure regulator with gauge.
Compact ECU for discreet mounting.
Comprehensive sensor package.
Compatibility with various fuel types.
Gold cast aluminum throttle body finish.
Product identification
- Brand: FiTech
- Model / MPN: 31020
