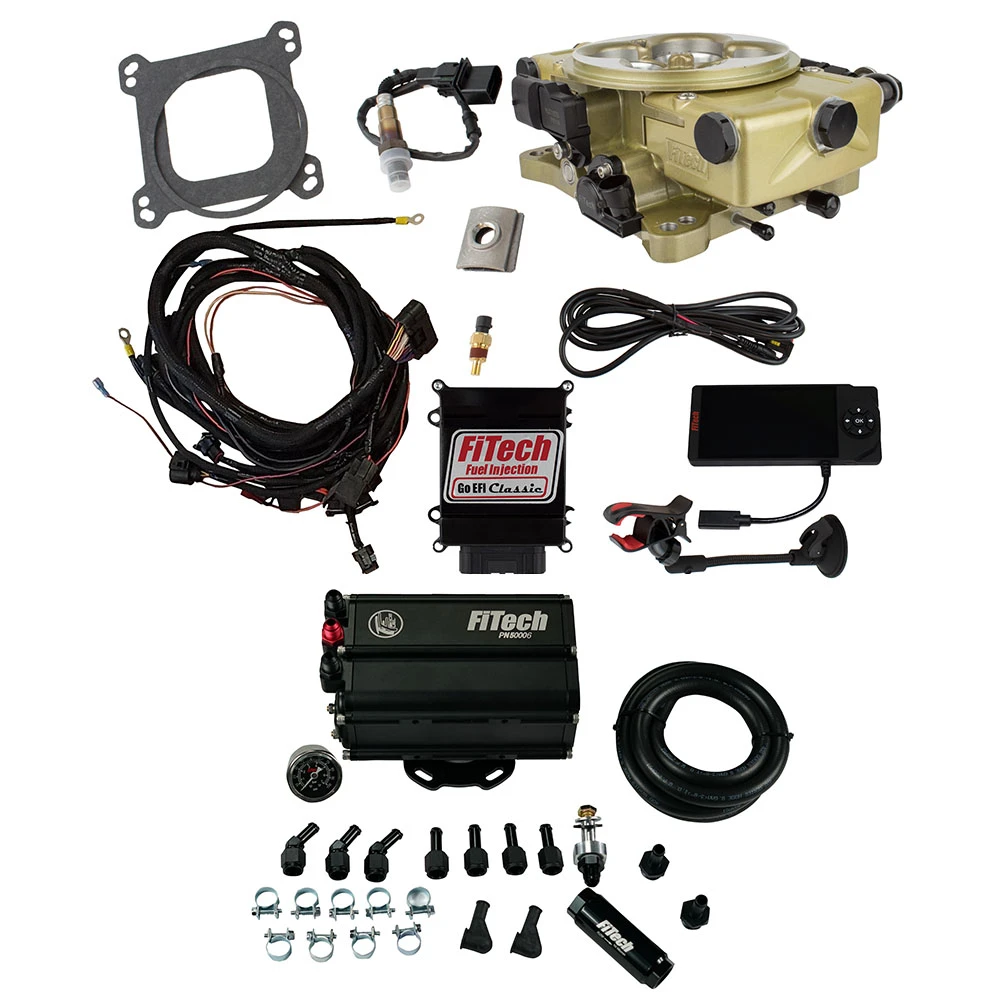

FiTech Classic Gold 650 HP EFI w/ Force Fuel Mini Surge Tank (35520)
KEY FEATURES AND BENEFITS:
High-Performance Rating: Supports engines up to 650 horsepower, suitable for performance applications.
Complete Fuel System: Includes fuel pump, fuel pressure regulator, and all necessary sensors for a comprehensive installation.
Direct 4-Barrel Replacement: Designed to fit standard 4-barrel square bore intake manifolds.
Classic Gold Finish: Retains a traditional carburetor look with a gold-finished throttle body.
Maximum Horsepower: 650 HP
Injection Style: Throttle body
Timing Control: No
Power Adder Compatible: No
Airflow Rate: 950 CFM
Injector Size: 80 lbs./hr.
Throttle Body Mounting Flange: 4-barrel square bore
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Remove the existing 4-barrel carburetor from the intake manifold.
Install the FiTech 35520 throttle body onto the intake manifold, ensuring proper gasket placement.
Mount the external fuel pump and connect the fuel lines, utilizing the included fuel pressure regulator.
Connect the wiring harness to the vehicle's electrical system and the ECU.
Install the oxygen sensor in the exhaust system.
Connect the MAP, IAT, and TPS sensors to the throttle body and wiring harness.
Follow the instructions included with the unit for initial setup of the ECU.
BENEFITS OF USING THE FITECH CLASSIC GOLD 650 HP EFI W/ FORCE FUEL MINI SURGE TANK (35520):
Improved Fuel Efficiency: Electronic fuel injection provides precise fuel control, leading to better fuel economy.
Simplified Installation: Designed as a direct carburetor replacement, minimizing installation complexity.
Reliable Fuel Pressure: The Force Fuel mini system provides consistent fuel pressure.
Consistent Performance: Self-tuning allows for consistent performance in changing conditions.
Cast aluminum gold finish throttle body.
80 lbs./hr high flow fuel injectors.
950 CFM airflow capacity.
External fuel pump included.
MAP, IAT, and TPS sensors included.
Oxygen sensor included.
Speed Density (Map-N) fuel metering.
Product identification
- Brand: FiTech
- Model / MPN: 35520
