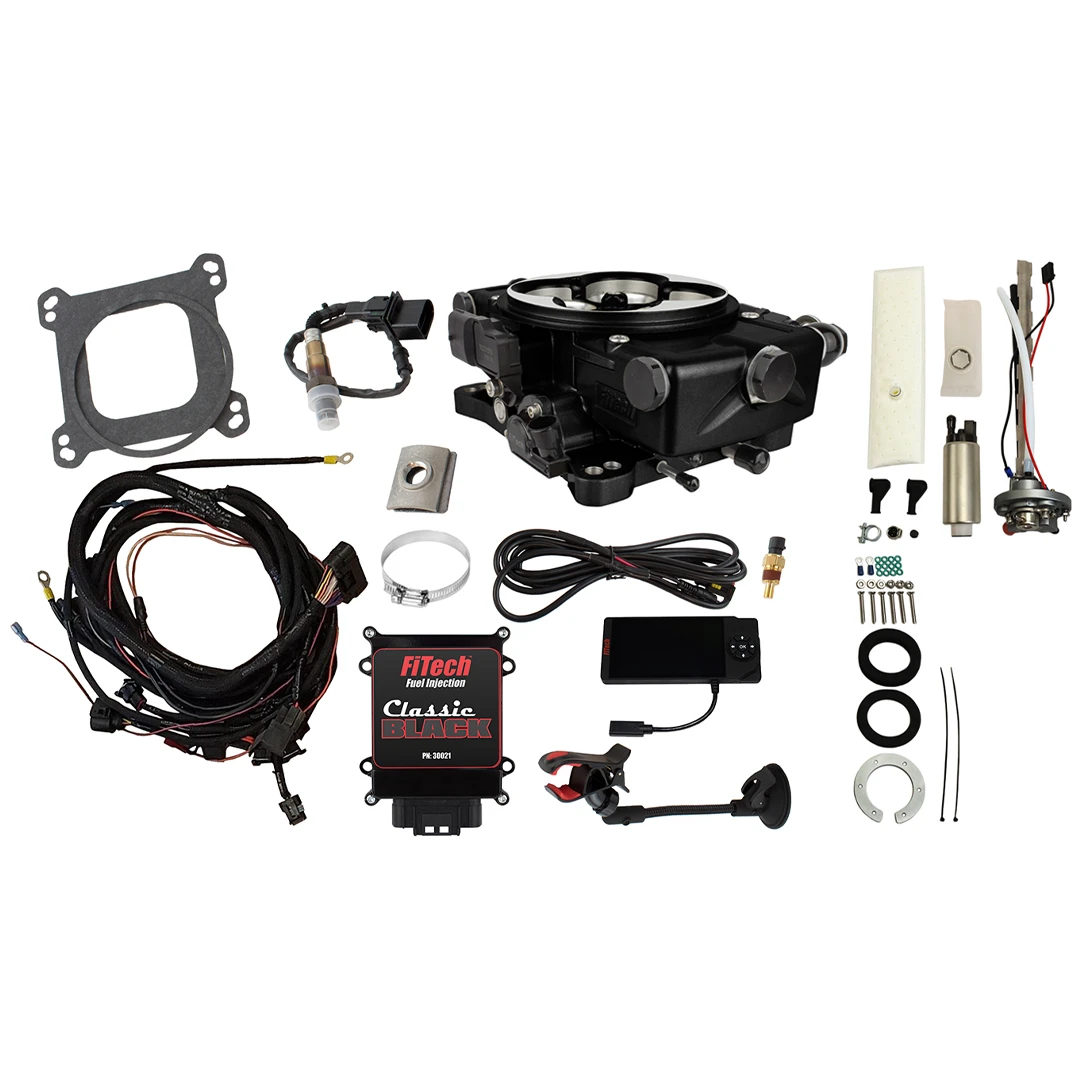

FiTech Classic Black 650 HP EFI w/ 340 LPH In-Tank Pump (36621)
KEY FEATURES AND BENEFITS:
Complete EFI Solution: Rated for up to 650 horsepower, perfect for 4-barrel engines.
950 CFM Throttle Body: Ensures optimal airflow and performance.
Self-Tuning ECU: Simplifies installation and setup process.
All Necessary Sensors Included: MAP, IAT, TPS, and oxygen sensors for complete functionality.
Improved Fuel Efficiency: Enhanced throttle response compared to traditional carburetors.
Maximum Horsepower: 650 HP
Injection Style: Throttle body
Metering Style: Speed density (MAP-N)
Airflow Rate: 950 CFM
Injector Size: 80 lbs/hr
Fuel Pump: In-tank, 340 LPH
Throttle Body Mounting Flange: 4-barrel square bore
ECU Included: Yes
Fuel Pump Included: Yes
Sensors Included: MAP, IAT, TPS, Oxygen
Fuel Type Compatibility: Alcohol, Gasoline, Methanol, Flex
Preparation: Disconnect the battery and remove the existing carburetor and fuel lines.
Fuel Pump Installation: Install the in-tank fuel pump according to the provided instructions, ensuring proper fuel line routing.
Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold using the 4-barrel square bore flange.
Sensor Installation: Install the MAP, IAT, TPS, and oxygen sensors in their designated locations.
Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors, following the wiring diagram.
ECU Setup: Mount the ECU in a suitable location and connect the power and ground wires.
Fuel Line Connection: Connect the fuel lines to the throttle body and fuel pump, ensuring proper sealing.
Initial Setup: Follow the manufacturer's instructions for initial ECU setup and calibration.
Testing: Reconnect the battery and start the engine. Monitor fuel pressure and adjust settings as needed.
BENEFITS OF USING THE FITEC CLASSIC BLACK 650 HP EFI W/ 340 LPH IN-TANK PUMP (36621):
Enhanced Throttle Response: Provides better engine performance.
Simplified Installation: Complete kit for easy setup.
Multiple Fuel Type Compatibility: Versatile fuel options for different applications.
Cast Aluminum Throttle Body: Finished in black for a sleek appearance.
In-Tank Regulated Fuel Pump: Ensures reliable fuel supply.
Complete Wiring Harness: For secure and easy connections.
Included Sensors: MAP, IAT, TPS, and oxygen sensors provide complete functionality.
44mm Venturi Diameter: Optimized for performance.
Speed Density Metering: For efficient fuel management.
Product identification
- Brand: FiTech
- Model / MPN: 36621
