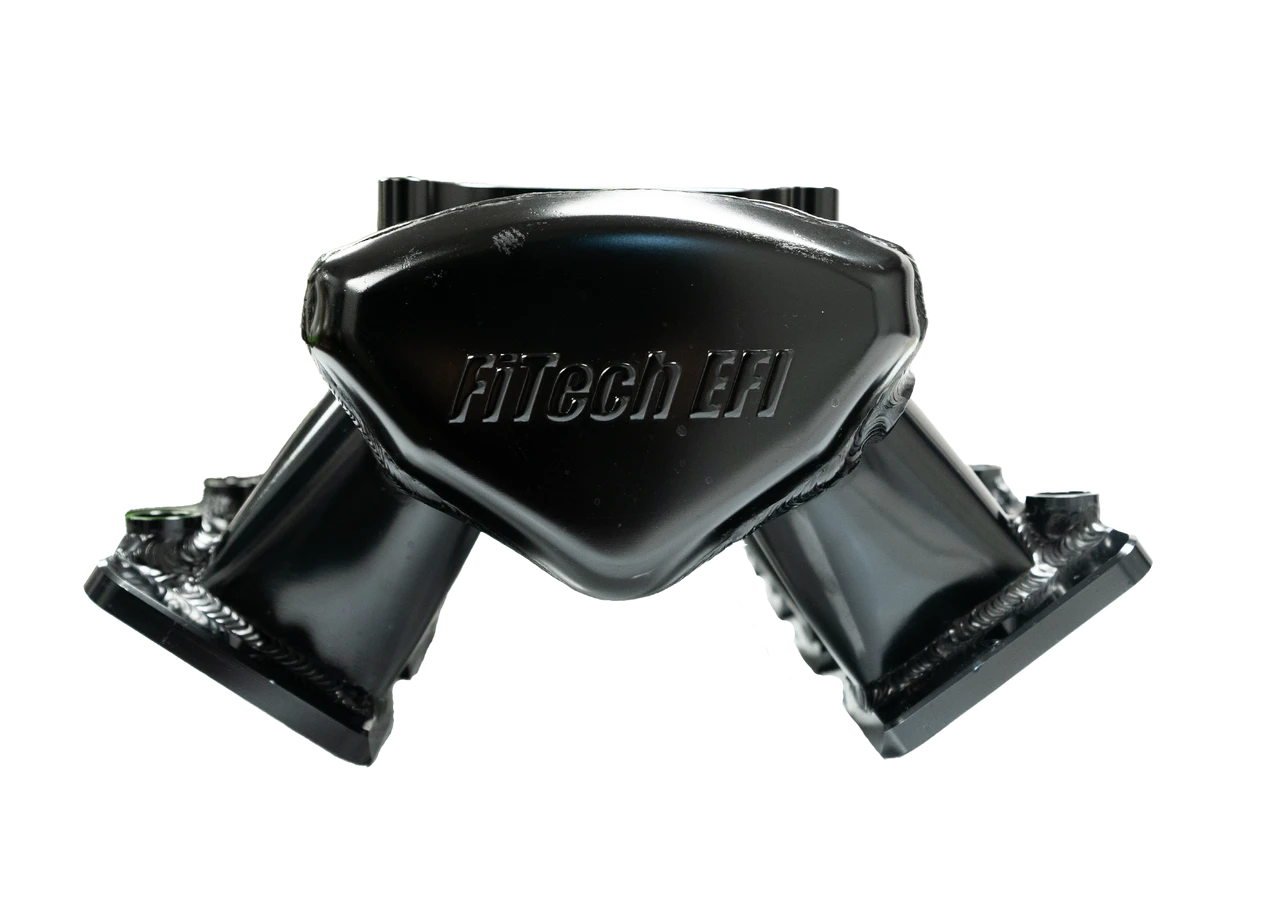

FiTech 2×3 Tripower Manifold Replacement (70080-1)
The FiTech 2×3 Tripower Manifold Replacement (70080-1) is engineered for LS engines with cathedral port cylinder heads (LS1/LS2/LS6). This manifold allows for the installation of a classic "Tripower" setup using three 2-barrel throttle bodies, enabling modern electronic fuel injection (EFI) on your LS engine. It features a 2300 flange, ensuring compatibility with a wide range of 2-barrel throttle bodies. The black anodized aluminum construction provides a clean look and added durability. This manifold includes supplemental bosses for additional sensors or fittings, offering flexibility for custom setups. It's designed as a complete intake section, simplifying installation. However, it does not include injectors or fuel rails, allowing for a tailored fuel system configuration.
KEY FEATURES AND BENEFITS:
Effective Filtration: This 100-micron filter element is constructed with a stainless steel mesh, providing a reliable barrier against contaminants.
Robust Design: The aluminum housing adds to the unit's durability and resistance to damage.
Easy Integration: Standard -8 AN fittings allow for simple integration into various fuel system setups.
Maintenance of Fuel System: By filtering fuel before it enters the pump, this element helps extend the lifespan of your fuel system components and maintain optimal fuel flow.
Ideal for Pre-Pump Applications: Designed to capture particles down to 100 microns in size, making it suitable for pre-pump use.
Brand: FiTech Fuel Injection
Manufacturer's Part Number: 70080-1
Part Type: Intake Manifolds, Fuel Injected
Product Line: FiTech LS Tri Power Intake Manifolds
Cylinder Head Configuration: Cathedral Port LS1/LS2/LS6
Fuel Injection Style: Multi-port
Intake Section Included: Complete
Engine Block Deck Height: Standard deck
Injectors Included: No
Multi-Port Fuel Rails Included: No, but fuel rails are required.
Throttle Body Included: No
Supplemental Bosses Cast-In/Machined: Yes, Eight
Runners Included: Yes, Non-removable
Plenum Material: Aluminum
Plenum Finish: Black anodized
Base Material: Aluminum
Base Color: Black anodized
Notes: Designed for triple 2-barrel throttle bodies with 2300 flange.
Engine Preparation: Ensure your LS engine (LS1/LS2/LS6) is clean and prepared for intake manifold installation.
Manifold Installation: Install the FiTech 70080-1 manifold onto the cylinder heads, following the manufacturer's torque specifications.
Throttle Body Mounting: Mount three 2-barrel throttle bodies with a 2300 flange onto the manifold.
Fuel System Setup: Install appropriate fuel rails and injectors that are compatible with your chosen throttle bodies.
Sensor Installation: Utilize the supplemental bosses to install any necessary sensors.
Plumbing and Wiring: Connect fuel lines, vacuum lines, and wiring for the EFI system.
System Calibration: Calibrate the EFI system to your engine's specifications.
BENEFITS OF USING THE FITECH 2X3 TRIPOWER MANIFOLD REPLACEMENT (70080-1):
Classic Look: Allows for a classic "Tripower" look with modern EFI performance.
Direct Fit: Provides a direct fit for LS engines with cathedral port cylinder heads.
Simplified Conversion: Simplifies the conversion to EFI with a complete intake section.
Flexibility: Offers flexibility for custom setups with supplemental bosses.
Professional Appearance: Black anodized finish provides a clean, professional appearance.
Designed for Use: Designed for use with triple 2-barrel throttle bodies.
Flange Compatibility: 2300 flange compatibility.
Material: Constructed from cast aluminum.
Corrosion Resistance: Black anodized finish for corrosion resistance.
Supplemental Bosses: Supplemental bosses for sensor or fitting installation.
Multi-Port Injection: Designed for multi-port fuel injection.
Complete Intake Section: Complete intake section included.
Product identification
- Brand: FiTech
- Model / MPN: 70080-1
