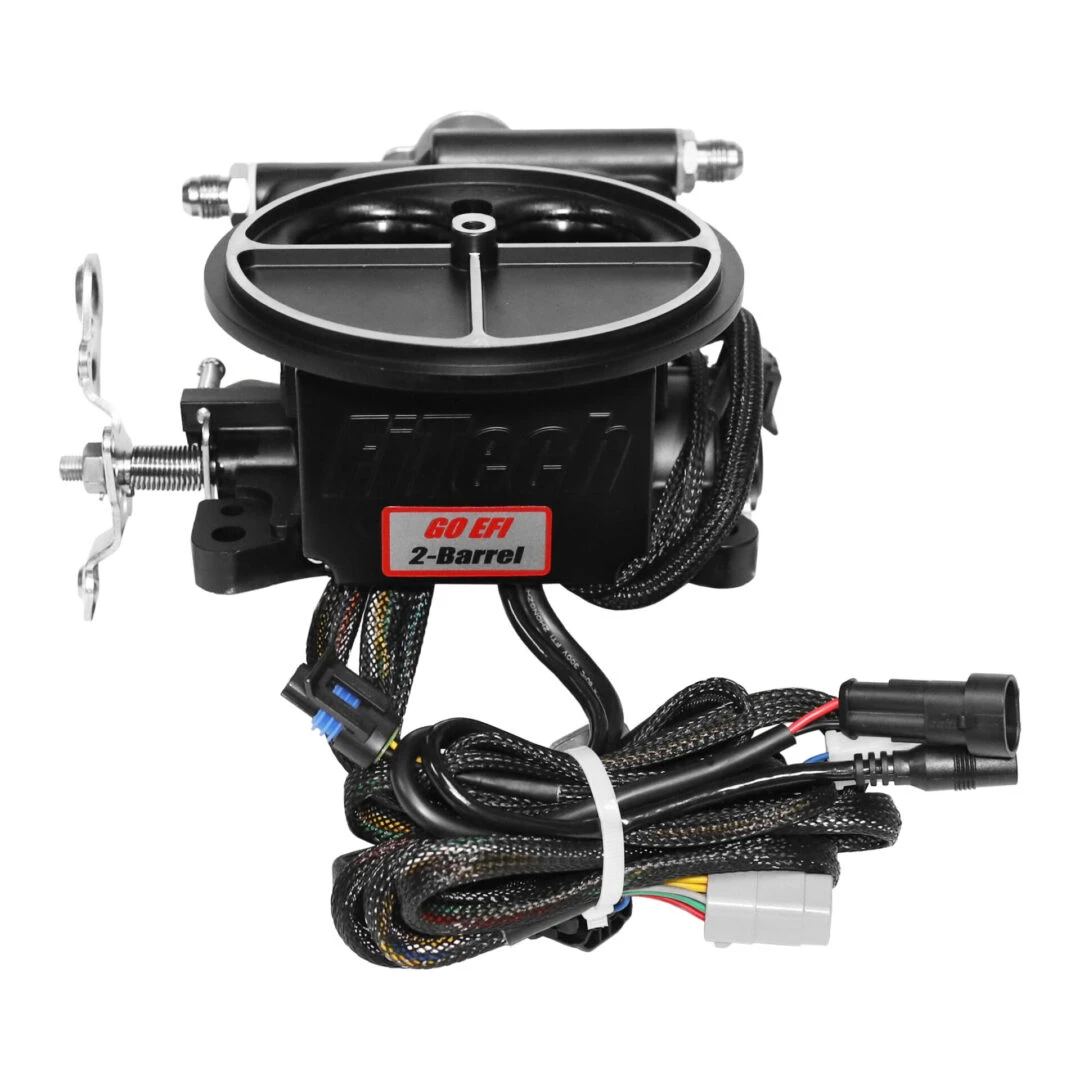

FiTech 2-Barrel 400 HP Classic Black EFI System (39002)
KEY FEATURES AND BENEFITS:
Modern EFI Technology: Upgrades your engine from an outdated carburetor to a modern electronic fuel injection system.
Improved Performance: Experience better throttle response, smoother acceleration, and increased overall engine performance.
Enhanced Fuel Economy: Electronic fuel injection delivers fuel more precisely, potentially improving fuel efficiency compared to a carburetor.
Eliminates Common Carburetor Issues: Resolves problems like cold start difficulties, hesitation, vapor lock, and flooding.
Self-Learning Capability: The system features self-learning technology that adapts to your engine's specific needs over time, simplifying the tuning process.
Easy Installation: The throttle body-mounted ECU and minimal wiring connections make installation relatively straightforward.
Classic Appearance: The black finish and design maintain a classic carburetor look under the hood.
Built-in Fuel Pressure Regulator: Eliminates the need for an external fuel pressure regulator, simplifying the fuel system setup.
Wideband O2 Sensor: Provides real-time feedback for accurate fuel adjustments.
Compatibility: Designed to bolt onto Holley 2300 bolt patterns and R2G manifolds with a TD-P#2086. Suitable for 4, 6, and most 8-cylinder naturally aspirated engines up to 400 HP.
Product Name: FiTech Go EFI 2-Barrel 400 HP Fuel Injection System
Part Number: 39002
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 2-Barrel Throttle Body (2300 Flange)
Maximum Horsepower: 400 HP
Timing Control: No
Power Adder Compatible: No
ECU Included: Yes (Throttle body mounted)
Metering Style: Speed density (Map-N) or speed throttle (Alpha-N)
Throttle Body Mounting Flange: Holley 2-barrel (H-2300)
Venturi Quantity: 2
Venturi Diameter: 44 mm
Airflow Rate: 500 cfm
Throttle Body Material: Cast aluminum
Throttle Body Finish: Black
Injectors Included: Yes (Four FiTech flow matched)
Injector Size: 55 lbs./hr.
Fuel Pressure Regulator: Internal (Preset to 43.5 PSI)
Oxygen Sensor Included: Yes (Wideband)
IAT Sensor Included: Yes
TPS Sensor Included: Yes
IAC Motor Included: Yes
Wiring Harness Included: Yes
Display: 4.5-inch color touchscreen
Fuel Type Compatibility: Alcohol, Gasoline, Methanol, Flex
Compatibility: Designed for 4, 6, and most 8-cylinder vehicles with a Holley 2300 flange or R2G manifold (TD-P#2086). Suitable for naturally aspirated engines up to 400 HP.
Preparation: Ensure your engine is compatible with the system and that you have a suitable fuel system capable of supplying the required fuel pressure (around 43.5 PSI).
Throttle Body Installation: Remove your existing 2-barrel carburetor and install the FiTech throttle body onto the intake manifold using the provided hardware.
Sensor Connections: Connect the included wideband oxygen sensor to the exhaust system using the clamp-on kit. Connect the coolant temperature sensor. The MAP, IAT, TPS, and IAC sensors are integrated into the throttle body.
Wiring: Connect the four main wiring connections: to the fuel pump, a switched 12V ignition source, a constant 12V power source, and the tachometer signal.
Initial Setup via Touchscreen: Use the handheld touchscreen to input basic engine parameters, such as engine size and number of cylinders.
Initial Engine Start: Start the engine and allow the self-learning system to begin adjusting fuel parameters.
Driving and Learning: Drive the vehicle in various conditions to allow the ECU to learn and optimize the fuel map.
Fine-Tuning (Optional): For advanced users, the touchscreen allows for manual adjustments to various parameters.
BENEFITS OF USING THE FITECH 2-BARREL 400 HP CLASSIC BLACK EFI SYSTEM (39002):
Ensures Reliable Cold Starts: Eliminates excessive cranking and priming, making engine startups quick and easy.
Enhances Throttle Response: Provides smoother acceleration and a more enjoyable driving experience.
Eliminates Carburetor Problems: Say goodbye to hesitation, vapor lock, and flooding issues common with carburetors.
Improves Fuel Efficiency: More precise fuel metering can lead to better mileage compared to carburetors.
Self-Learning System: Adapts to your engine’s specific needs, reducing the need for manual tuning.
Maintains Classic Aesthetic: Keeps the look of a traditional carburetor while delivering modern EFI reliability.
High-Flow Aluminum Throttle Body: Features a durable, black-finished throttle body for a classic appearance.
Direct Bolt-On Fit: Bolts directly onto H-2300 bolt patterns and R2G manifolds using TD-P#2086.
Four High-Performance Injectors: FiTech flow-matched injectors support up to 400 HP.
Internal Fuel Pressure Regulator: Preset to 43.5 PSI, eliminating the need for an external regulator.
Wide Compatibility: Works with naturally aspirated 4, 6, and most 8-cylinder engines.
Touchscreen Tuning: User-friendly 4.5-inch touchscreen display for setup and adjustments.
Clamp-On Oxygen Sensor Kit: Provides a secure, leak-free installation.
Product identification
- Brand: FiTech
- Model / MPN: 39002
