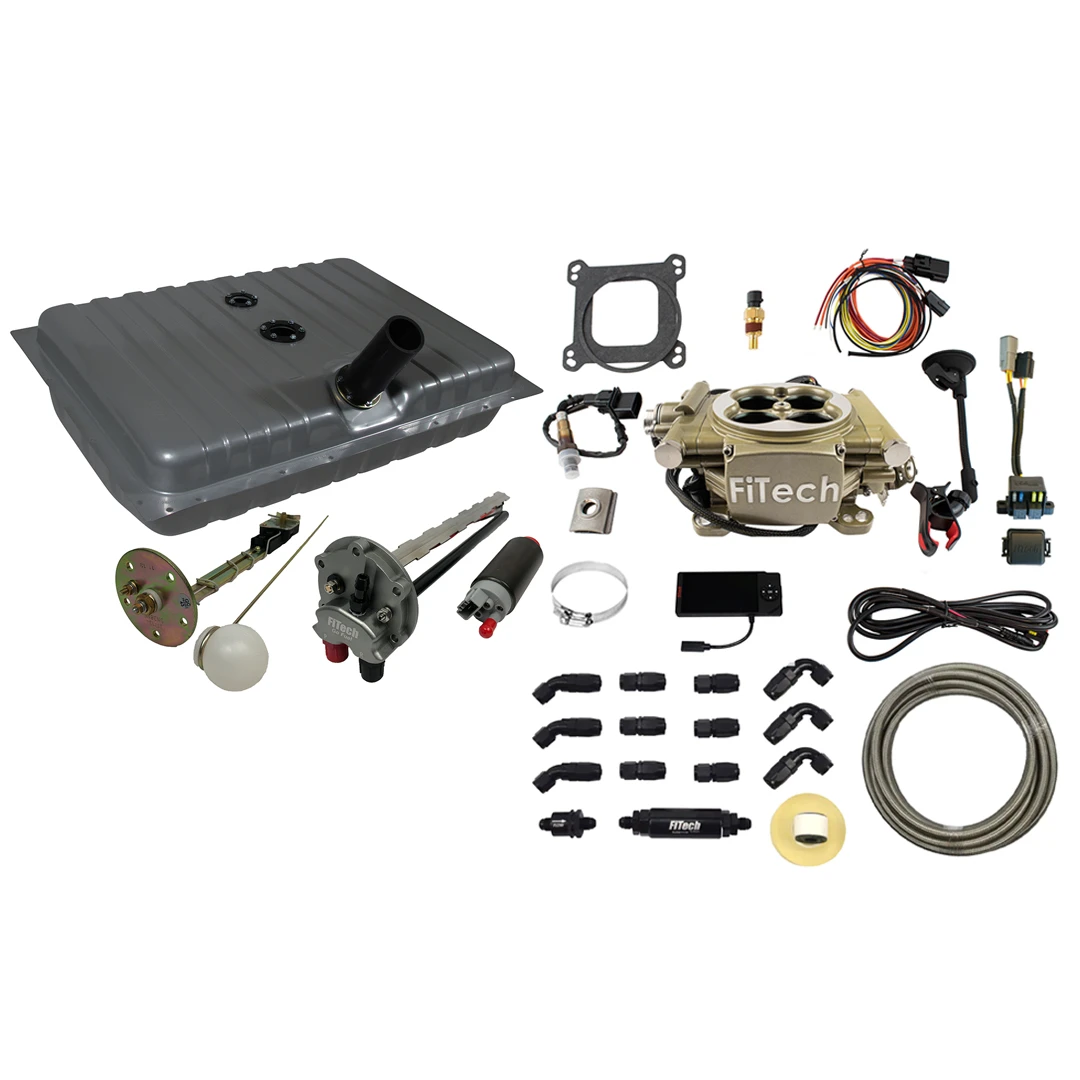

FiTech 1969-1970 Mustang Easy Street 600HP EFI Total Package (38004)
The FiTech 1969-1970 Mustang Easy Street 600HP EFI Total Package (38004) is designed to transform your 1969-1970 Ford Mustang from a traditional carburetor setup to modern electronic fuel injection (EFI). This all-inclusive kit simplifies the upgrade process, providing a single part number solution for enhanced performance and reliability. It features the "Easy Street" 600 horsepower throttle body, a direct-fit fuel tank with an internal pump module, and all necessary components for a seamless installation.
KEY FEATURES AND BENEFITS:
Improved Performance: Delivers enhanced acceleration, throttle response, and overall engine performance.
Reliable Connections: Complete steel braided hose kit and AN-style fittings included.
Diagnostic Features: Built-in diagnostics help identify potential issues.
Maximum horsepower: 600 HP
Injection style: Throttle body
Timing control: No
ECU included: Yes
Fuel pump included: Yes (in-tank)
Metering style: Speed density (MAP-N)
Throttle body mounting flange: 4-barrel square bore
Injector size: 80 lbs/hr
Fuel pump flow rating: 255 lph
Venturi diameter: 43 mm
Fuel type: Gasoline, Alcohol, Methanol, Flex
Remove Existing Carburetor: Disconnect and remove the existing carburetor and associated fuel lines.
Install Fuel Tank: Replace the original fuel tank with the included FiTech fuel tank and internal pump module.
Mount Throttle Body: Install the FiTech throttle body onto the intake manifold using the 4-barrel square bore flange.
Connect Fuel Lines: Connect the steel braided fuel lines and fittings between the fuel tank and throttle body.
Install Sensors: Install the provided oxygen sensor, coolant temperature sensor, and other necessary sensors.
Connect Wiring Harness: Connect the wiring harness to the ECU, sensors, and power source.
Initial Setup: Use the handheld controller to input basic engine parameters.
Fine Tuning: If needed, make minor adjustments using the handheld controller.
BENEFITS OF USING THE FITECH 1969-1970 MUSTANG EASY STREET 600HP EFI TOTAL PACKAGE (38004):
Enhanced engine performance and responsiveness.
Improved fuel efficiency compared to traditional carburetors.
Simplified installation with a complete, direct-fit kit.
Reduced maintenance and improved reliability.
Self-learning calibration for optimal performance.
Classic Aesthetic: Gold finish on the throttle body enhances vintage appeal.
Built-in Pressure Regulator: Ensures consistent fuel pressure.
High-Flow Filter: Serviceable fuel filter for effective filtration.
Accurate Monitoring: Wideband O2 sensor for precise fuel monitoring.
User-Friendly Controller: Handheld controller for setup and diagnostics.
Complete Wiring Harness: Included for easy connections.
In-Tank Pump: Fuel pump included for effortless installation.
Direct Replacement: Designed as a direct replacement for 4-barrel carburetors.
Product identification
- Brand: FiTech
- Model / MPN: 38004
