FiTech 1967-1972 Chevy Truck EFI System Bed Fill Total Package (38011)
The FiTech 1967-1972 Chevy Truck EFI System Bed Fill Total Package (38011) is a comprehensive Electronic Fuel Injection (EFI) system designed to replace traditional carburetor setups in 1967-1972 Chevy trucks. This "total package" provides all necessary components for a complete EFI conversion, enhancing engine performance, fuel efficiency, and overall reliability. The system includes a direct-fit fuel tank with an internal pump module, high-pressure fuel pump, steel braided fuel lines, and a classic gold-finished throttle body. The self-learning capabilities of the system simplify installation and calibration, making it a user-friendly upgrade for classic truck enthusiasts.
KEY FEATURES AND BENEFITS:
Complete EFI conversion kit for 1967-1972 Chevy trucks.
Includes direct-fit fuel tank with integrated fuel pump.
Features a 600 HP capable, gold-finished throttle body.
Provides improved fuel efficiency and throttle response.
Simplifies installation with self-learning calibration.

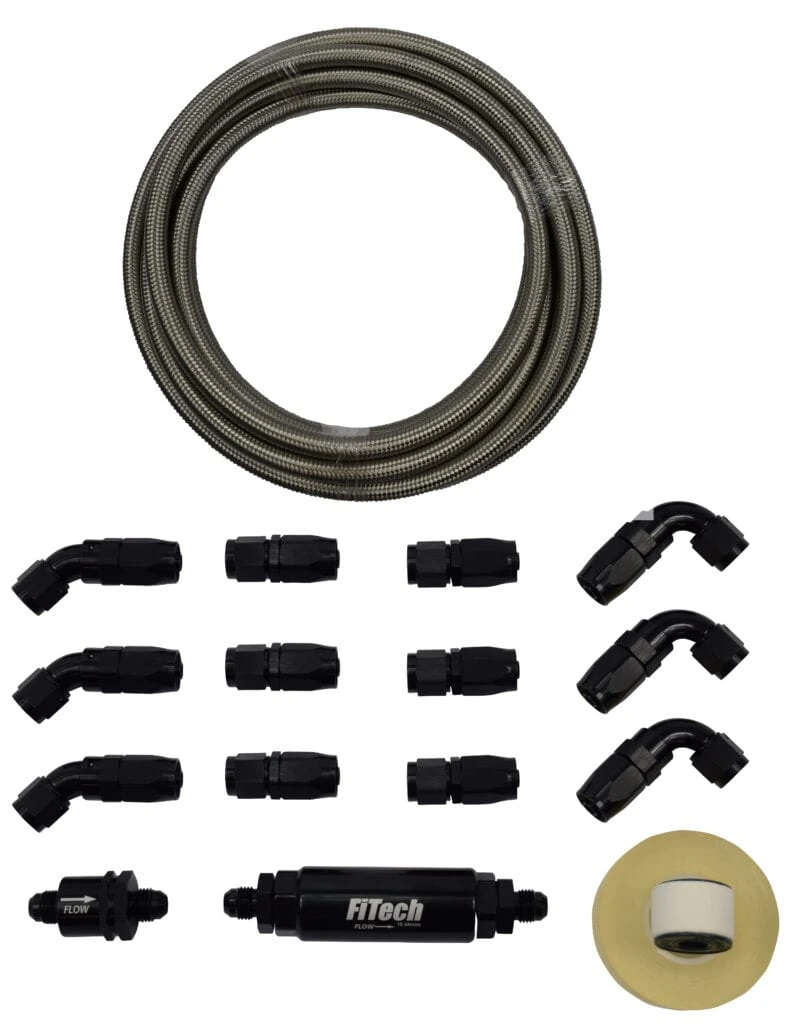

Includes all necessary fuel lines and fittings.
Model: FiTech 38011
Application: 1967-1972 Chevy Trucks
Horsepower Rating: Up to 600 HP
Fuel System Type: Electronic Fuel Injection (EFI)
Fuel Pump: Internal, High-Pressure
Fuel Lines: Steel Braided
Throttle Body Finish: Gold
MAP Sensor: 1 BAR internal
Injectors: 4 Flow-matched injectors
Compatibility: 4-barrel intake manifolds, naturally aspirated engines
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Fuel Tank Installation: Install the new fuel tank with the integrated pump module, ensuring secure connections.
Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold, using the provided gasket.
Fuel Line Connection: Connect the steel braided fuel lines from the tank to the throttle body, using the provided AN-style fittings.
Sensor Installation: Install the O2 sensor and other necessary sensors, connecting them to the ECU.
Wiring: Connect the wiring harness to the vehicle's electrical system, following the provided instructions.
Controller Connection: Connect the handheld controller to the ECU.
Initial Setup: Follow the on-screen prompts on the handheld controller to input basic engine parameters.
Start and Self-Learning: Start the engine and allow the system to self-learn and adjust the fuel mixture.
Fine Tuning: If needed, use the handheld controller to make any fine-tuning adjustments.
BENEFITS OF USING FITECH 1967-1972 CHEVY TRUCK EFI SYSTEM BED FILL TOTAL PACKAGE (38011):
Enhanced engine performance and responsiveness.
Improved fuel efficiency compared to traditional carburetors.
Simplified installation and calibration process.
Modern fuel injection technology for classic trucks.
Reduced engine hesitation and stalling.
Direct-fit fuel tank design.
Integrated high-pressure fuel pump.
Serviceable high-flow fuel filter.
AN-style fuel fittings.
Handheld controller for setup and monitoring.
Wideband O2 sensor for accurate fuel mixture adjustments.
Fan control built into the ECU.
CTS sensor and adapter included.
Mini USB cable included.
Product identification
- Brand: FiTech
- Model / MPN: 38011
