FiTech efi fuel tank details

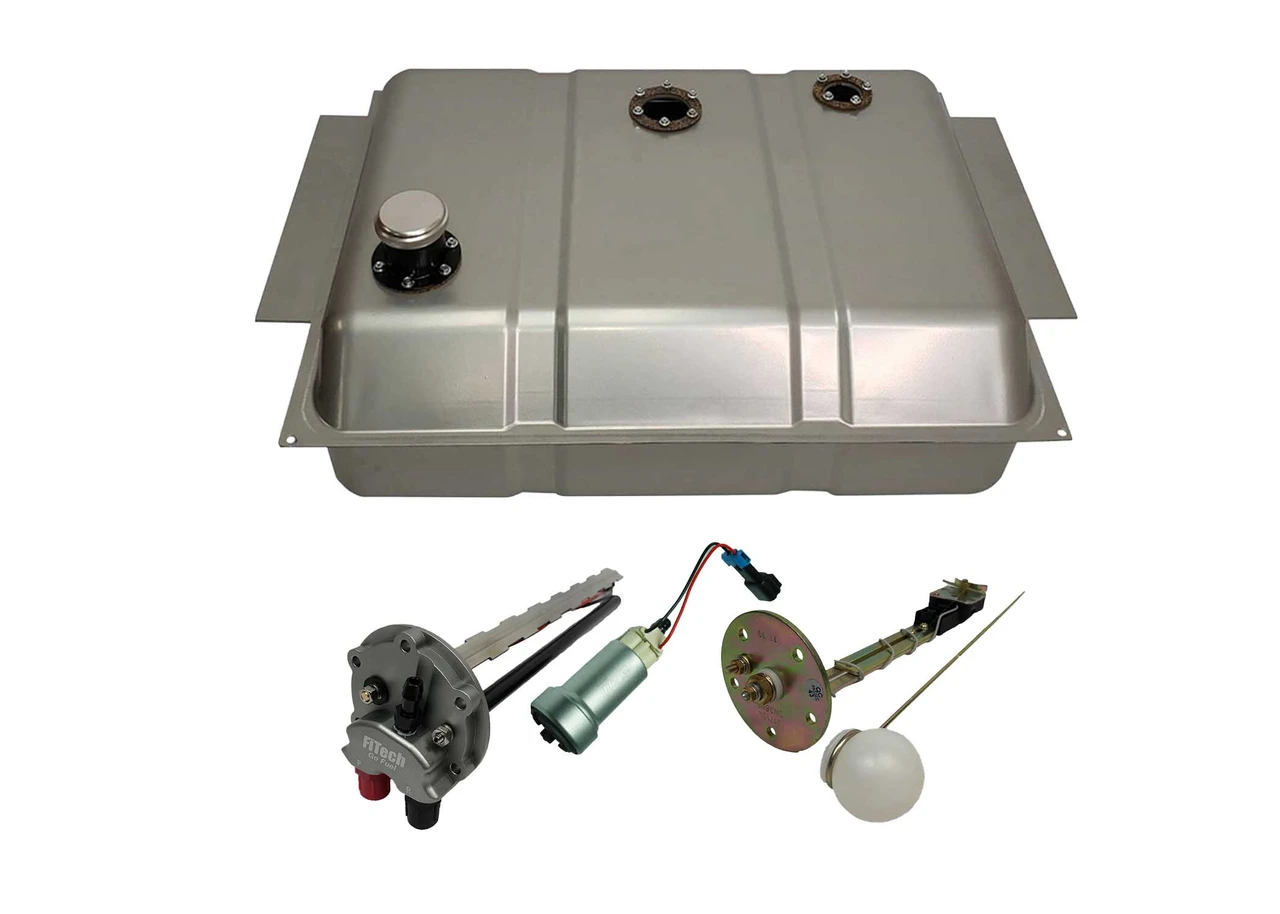

FiTech 1967-1972 Chevy Truck Bed Fill 440LPH EFI Fuel Tank Kit (58148)
KEY FEATURES AND BENEFITS:
Complete EFI Upgrade: Provides a full fuel system upgrade for 1967-1972 Chevy trucks with bed fill locations.
High-Flow Fuel Pump: Includes a 440 LPH in-tank pump, supporting up to 1000 horsepower.
Secure Connections: Equipped with -6 AN inlet and outlet ports for leak-free connections.
Accurate Readings: Comes with a 0-90 ohm fuel sending unit for precise fuel level monitoring.
Added Clearance: Recessed sending unit and pump mount for improved clearance.
Simplified Installation: Direct-fit design makes setup straightforward.
Application: 1967-1972 Chevy Trucks (Bed Fill)
Fuel Tank Capacity: 18 gallons
Fuel Pump Flow Rate: 440 LPH (116 GPH)
Fuel Pump Included: Yes
Sending Unit Included: Yes (0-90 ohm)
Fitting Size: -6 AN
Fuel Tank Material: Steel
Fuel Tank Finish: Silver powder coat
Dimensions: 28 × 11 × 47 in
Preparation: Drain the existing fuel tank and disconnect all fuel lines and electrical connections.
Removal: Remove the old fuel tank from the truck.
Installation: Position the new FiTech fuel tank into the truck bed.
Pump and Sender: Ensure the in-tank pump module and sending unit are correctly positioned within the tank.
Connections: Connect the -6 AN fuel lines to the inlet and outlet ports.
Electrical: Connect the fuel pump and sending unit electrical connections.
Mounting: Secure the tank using the provided mounting hardware.
Testing: Fill the tank with fuel and test the fuel pump and sending unit for proper operation.
BENEFITS OF USING THE FITECH 1967-1972 CHEVY TRUCK BED FILL 440LPH EFI FUEL TANK KIT (58148):
High Horsepower Support: High-flow pump caters to performance needs.
Improved Consistency: Internal baffling ensures stable fuel supply.
Leak Prevention: AN fittings reduce the risk of fuel leaks.
Simplified Installation: Direct-fit design facilitates easy setup.
Reliable Monitoring: Accurate fuel level readings from the included sending unit.
Reliable Supply: Ensures a steady fuel supply for high-performance applications.
Internal Baffling: Prevents fuel sloshing within the tank.
Recessed Mounting: For the sending unit and pump, enhancing clearance.
Corrosion Resistance: Powder-coated finish for durability.
Direct Bolt-In: Designed for easy installation.
Included Hardware: Comes with all necessary mounting hardware.
Product identification
- Brand: FiTech
- Model / MPN: 58148
FiTech fuel tank kit: see the listed specifications for this model.
