FiTech efi fuel tank details

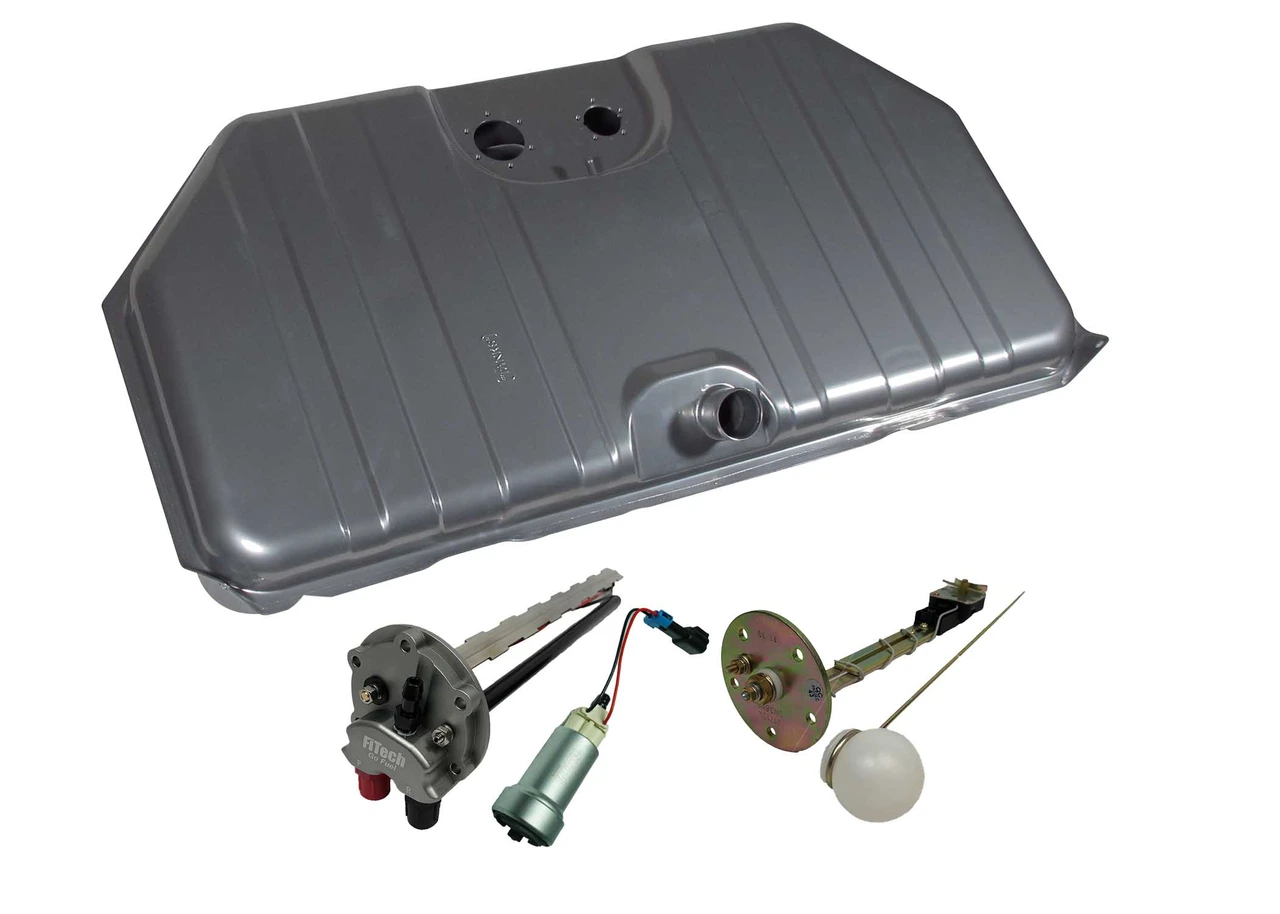

FiTech 1967-1968 Chevy Camaro Notched 440LPH EFI Fuel Tank Kit (58123)
KEY FEATURES AND BENEFITS:
Direct-fit design for 1967-1968 Camaros with notched corners, ensuring easy installation.
Includes a 440 LPH in-tank fuel pump, capable of supporting up to 1000 horsepower.
-6 AN inlet and outlet fittings offer secure, leak-free fuel line connections.
Recessed sending unit and pump mount provide added clearance.
Complete kit includes the fuel tank, in-tank pump module, sending unit, mounting straps, and filler neck as needed.
Vehicle Compatibility: 1967-1968 Chevrolet Camaro (notched corner)
Fuel Tank Capacity: 18 gallons
Fuel Pump Flow Rate: 440 LPH (approximately 116 GPH)
Fitting Size: -6 AN
Fuel Tank Material: Steel, silver powdercoated
Sending Unit: Included, for factory gauges
Baffled Sump: Yes
Output Quantity: 2
Dimensions: 28 × 11 × 47 in
Begin by removing the existing fuel tank from your 1967-1968 Camaro.
Install the FiTech 58123 fuel tank, ensuring proper alignment with the vehicle's mounting points.
Secure the tank using the provided mounting straps.
Connect the -6 AN fuel lines to the inlet and outlet fittings on the tank.
Install the sending unit, connecting it to the factory gauge wiring.
Connect the wiring for the 440 LPH fuel pump.
Install the filler neck.
Test the fuel system for leaks and proper operation.
BENEFITS OF USING THE FITECH 1967-1968 CHEVY CAMARO NOTCHED 440LPH EFI FUEL TANK KIT (58123):
Eliminates the need for an external fuel pump, reducing clutter and potential leak points.
Ensures consistent fuel pressure and flow, optimizing engine performance.
Simplifies the EFI upgrade process with a comprehensive, direct-fit kit.
Supports high horsepower applications.
Integrated Internal Baffling: To maintain consistent fuel supply under various driving conditions.
Powder Coated Steel Tank: For corrosion resistance.
In-Tank Pump Mounting System: To reduce noise.
Included Factory Gauge Sending Unit: For compatibility with factory gauges.
Included Tank Straps: For easy installation.
Product identification
- Brand: FiTech
- Model / MPN: 58123
FiTech fuel tank kit: see the listed specifications for this model.
