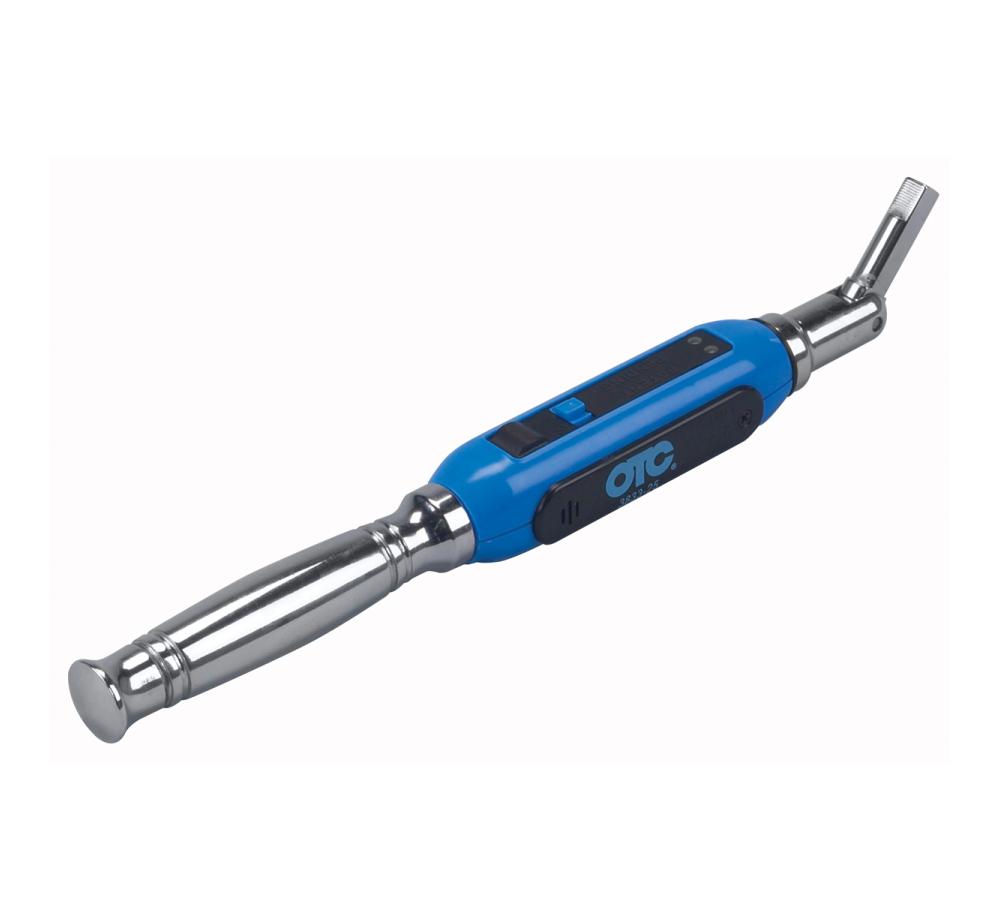

Electronic Torque Wrench (TPMS)
Current TPM Sensor nut torque requirements range from 12-106 in.-lb. Conventional torque wrenches do not cover this range in a single wrench. The new TPM Electronic Torque Wrench covers this range and provides key features specifically designed for TPM sensor applications, while also doubling as a standard in.-lb. torque wrench.
12-120 in.-lb. (1-14 Nm) Torque set quickly with unique slide bar on the scale. Indexing head allows for use straight (screwdriver position) to spin nut down quickly.
Rotate to 90° position to torque and leverage.
Torque limit LED flashes with audible beep.
Power switch with LED indicator.
Uses coin style batteries.
Approximately 8.5" long.
A standard torque wrench for use in all torque application within the range.
Range 12-120 in.-lb.
Competition: Range 38 to 66 in.-lb. limited by the amount of torque you can apply on a screw driver handle no leverage.
Competition: Accuracy +/- 6%.
Green light for power on / red light and buzzer for reaching target signal.
Flash red for overload signal.
Competition: No overload warning.
No need to unwind like mechanical design to ensure calibration accuracy.
Competition: Must be unwound after use to maintained accuracy.
Access, speed, and leverage are all possible.
Competition: Access, speed, but no leverage.
Product identification
- Brand: OTC
