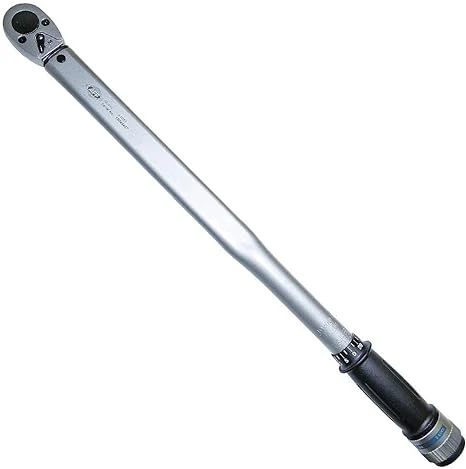

American Forge & Foundry 1/2 Dr 250ft/lb Torque Wrench (41053)
KEY FEATURES AND BENEFITS:
Standards Compliant: Meets or exceeds the accuracy requirements of ASME B107.14-1194, BSEN 26789:1994, ISO 6789-1992, DIN 3122, and U.S. Government Specification GGG-W-00686C, making it suitable for professional and regulated environments.
Clear Torque Indication: Provides a perceptible jolt and an audible click when the desired torque setting has been reached, minimizing the risk of over or under-tightening.
Secure Setting: A locking collar prevents accidental adjustments to the torque setting during use, ensuring consistent and precise application without interruptions.

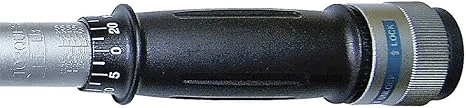

User Comfort: Features a pliable, oil-resistant handle grip that offers superior comfort, reducing hand fatigue during repetitive or extended use.
Enhanced Longevity: A specialized rubber seal between the ratchet head and the main tube keeps internal lubrication in and prevents contaminants from entering, maintaining the tool's accuracy and extending its operational life.
Protective Storage: Comes with a durable blow mold case, offering secure storage and protection for the wrench, which helps maintain its calibration and condition over time.
Drive Size: 1/2 inch
Primary Torque Range: 50-250 ft/lbs
Secondary Torque Range: 67-339 Nm
Tooth Count (Ratchet): 24
Head Thickness: 0.76 inches
Head Width: 1.85 inches
Overall Length: 25.50 inches
Weight: 5.60 lbs
Set the Torque: Rotate the handle or the adjustment knob to align the desired torque value on the scale.
Lock the Setting: Once the desired torque is set, engage the locking collar to secure the setting and prevent accidental changes during operation.
Attach Socket: Select the appropriate 1/2-inch drive socket for your fastener and attach it firmly to the wrench's drive square.
Apply Force: Place the socket onto the fastener. Apply steady, increasing force to the wrench handle in a clockwise direction.
Listen and Feel: Continue applying force until you hear an audible "click" and feel a slight "jolt" in the handle. This indicates that the preset torque has been achieved.
Release and Remove: Stop applying force immediately after the click/jolt. Remove the wrench from the fastener.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 1/2” DR 250FT/LB TORQUE WRENCH (41053):
Ensures accurate torque application, enhancing safety and component reliability.
Prevents overtightening and undertightening of fasteners, reducing the risk of damage or failure.
Eliminates guesswork with audible and tactile feedback mechanisms.
Reduces operator fatigue with ergonomic handle design suitable for extended use.
Complies with multiple international standards for dependable performance in regulated environments.
Long-lasting construction and protected storage help maintain calibration and extend tool life.
Click-type feedback mechanism for clear torque achievement indication

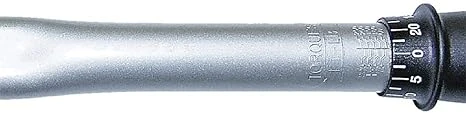

Dual scale markings for both foot-pounds (ft/lbs) and Newton-meters (Nm)

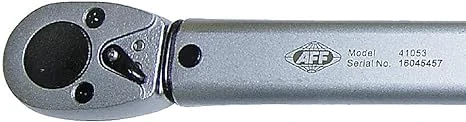

Reversible ratchet head for convenience in various applications
Chrome Vanadium steel construction for strength and resilience
Indexed handle for easy and accurate torque value setting
Precision-machined internal components for consistent performance
Designed for simple re-calibration when required
Product identification
- Brand: American Forge & Foundry
- Model / MPN: 41053
