English wheel details
Eastwood Elite Mini English Wheel (54830)
Eastwood Elite Mini English Wheel (54830) is the perfect tool for fabricators looking to create compound curves and intricate metal shapes in a compact package. This smaller version of the classic English wheel allows you to tackle small projects or form panels that may be too intricate for a larger wheel.

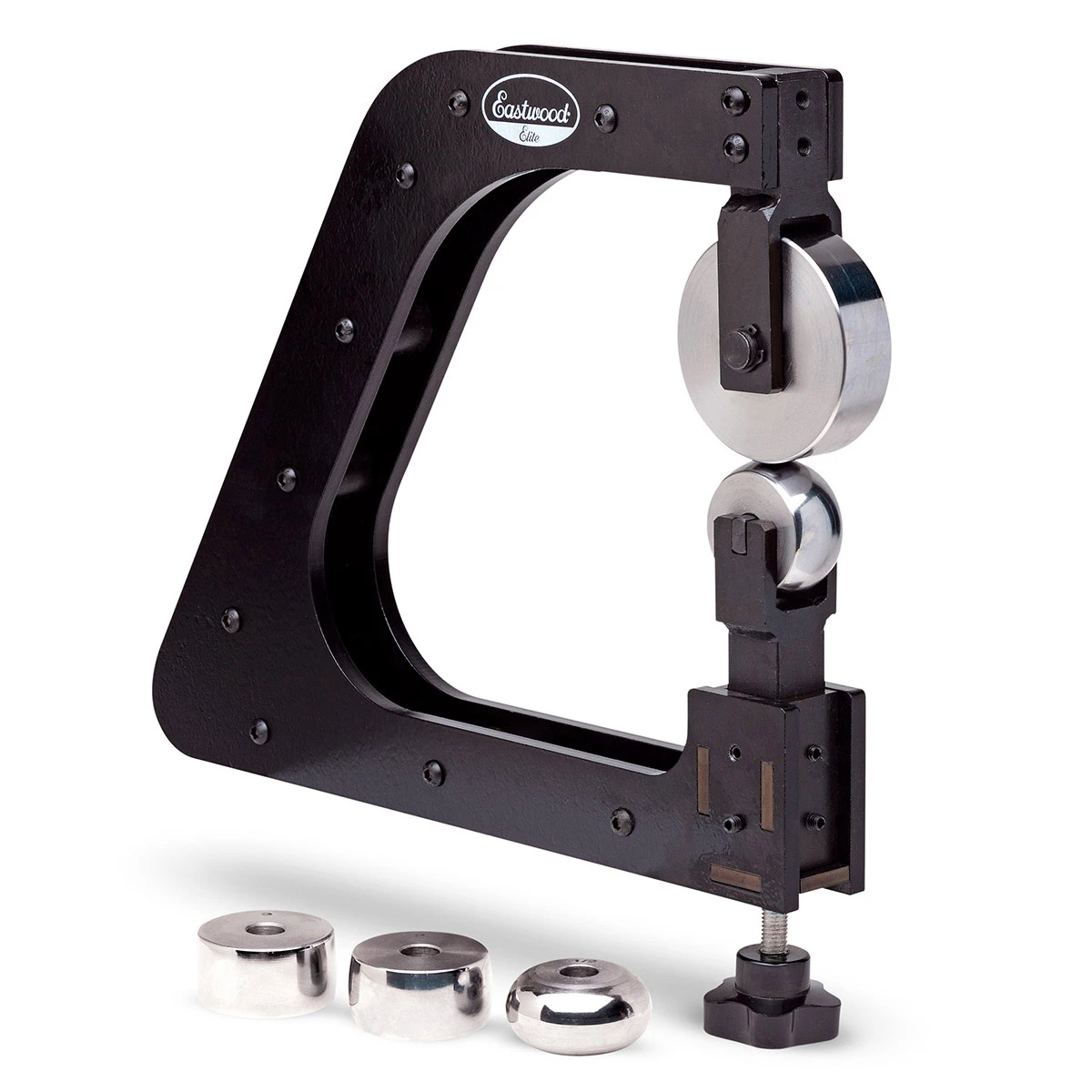

With a 7.5-inch throat depth, this mini wheel can form up to 15-inch wide panels (and 20 inches on an angular plane). The vise-mount design makes it easy to set up and store, while the high-quality construction ensures durability. It includes four lower anvils with various radii and an upper wheel to handle different shaping needs.
Specifications and Dimensions

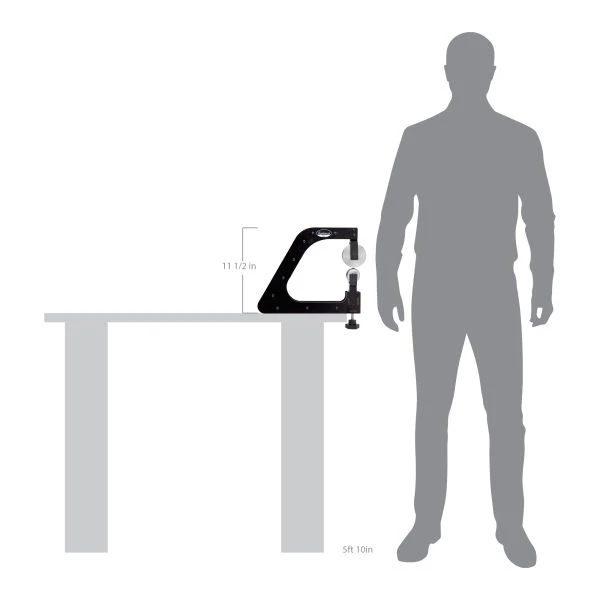

Throat Depth: 7.5 inches
Maximum Panel Width: 15 inches (20 inches on an angular plane)
Upper Wheel: 3.19 inches
Lower Anvils: 1/2", 1", 2", 3" radius
Material Thickness: Up to 18-gauge steel and 16-gauge aluminum
Wheels Material: #45 steel with HRC18 hardness rating

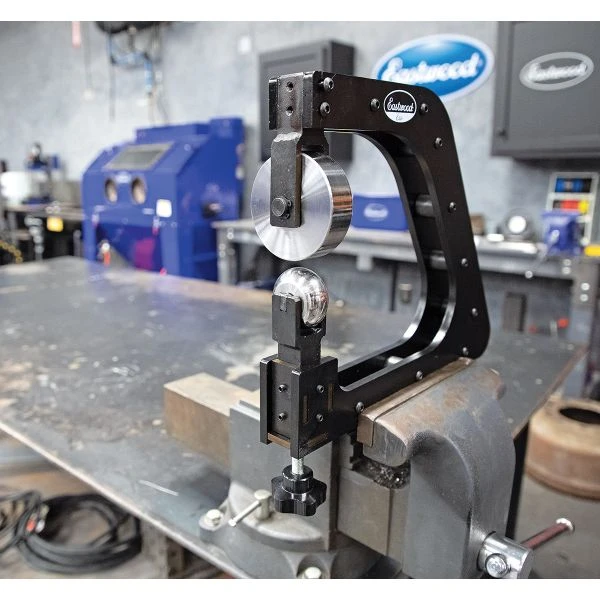

Mounting: Vise-mount design
Key Features and Benefits
Compact design perfect for small metal forming projects
7.5-inch throat depth allows for forming up to 15-inch wide panels
Four lower anvils included for a variety of curves
Micro-adjustable anvil ensures precise shaping
Vise-mount design allows for easy use and storage

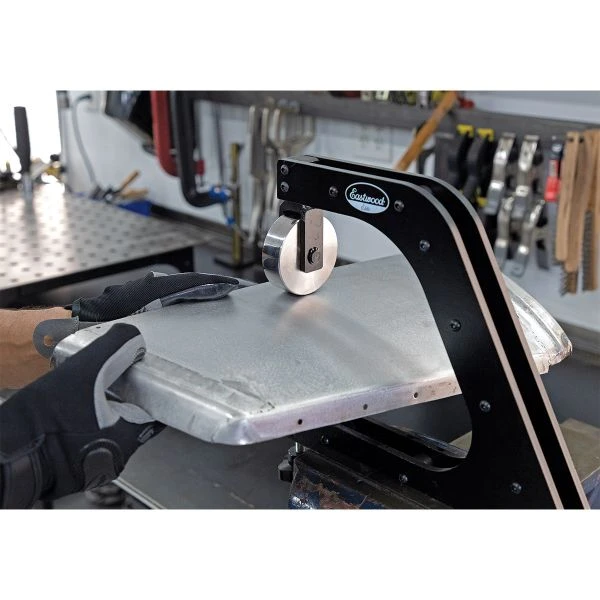

Perfect for forming auto panels or general fabrication
Product identification
- Brand: Eastwood Elite
- Model / MPN: 54830
