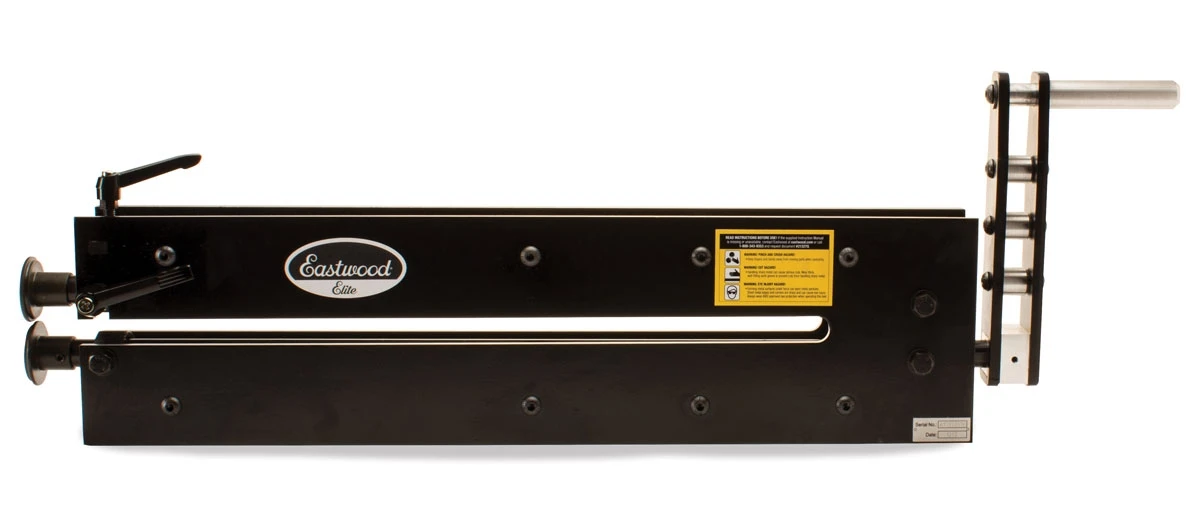

Eastwood Elite 27 Inch Metal Forming Bead Roller (21327)

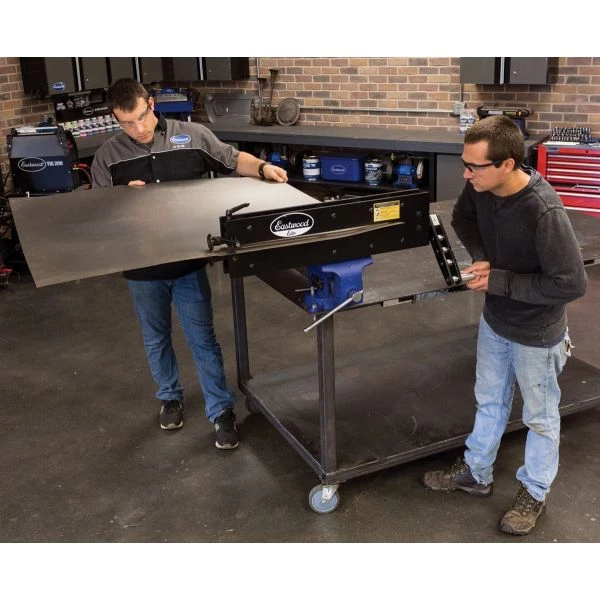

Eastwood Elite 27 Inch Bead Roller (21327) is a professional-grade metal forming tool ideal for producing strength-enhancing ribs in panels and crafting custom designs. With a 27-inch throat capacity, this bead roller allows you to form from the center of a 54-inch panel, making it perfect for large automotive projects like floor pans, firewalls, and trunk floors.

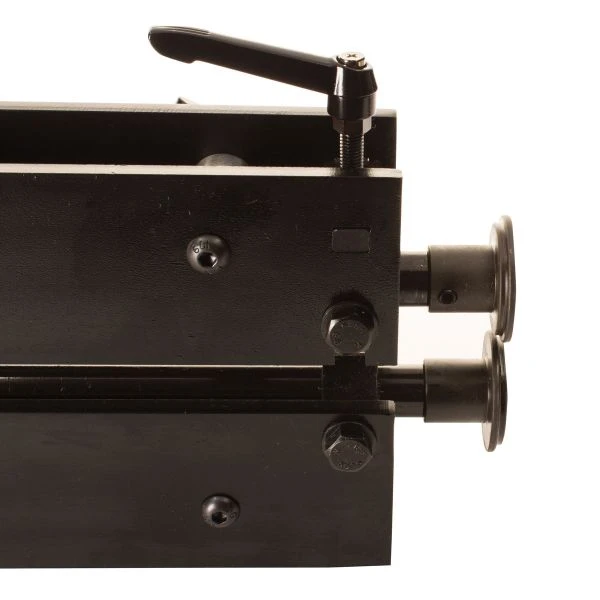

Designed with a fabricated frame for superior strength and rigidity, the bead roller comes with industry-standard 22mm shafts to accommodate all professional dies. The gear-driven hand crank requires minimal effort, providing precise and consistent results.
Specifications and Dimensions
Maximum material thickness: Steel 18 Gauge, Aluminum 16 Gauge, Stainless 20 Gauge
Throat capacity: 27 inches
Maximum panel width (working from center): 54 inches
Frame dimensions: 30 inches length x 7.75 inches height x 3 inches wide

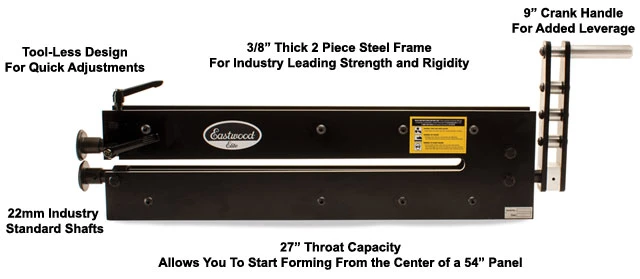

Key Features and Benefits
27-inch throat depth for large panels up to 54 inches wide
Gear-driven hand crank for easy and precise operation
Tool-less design for quick adjustments
Includes offset flange die set for creating floor pans, firewalls, and more
Strong fabricated design ensures maximum durability
Product identification
- Brand: Eastwood
- Model / MPN: 21327
