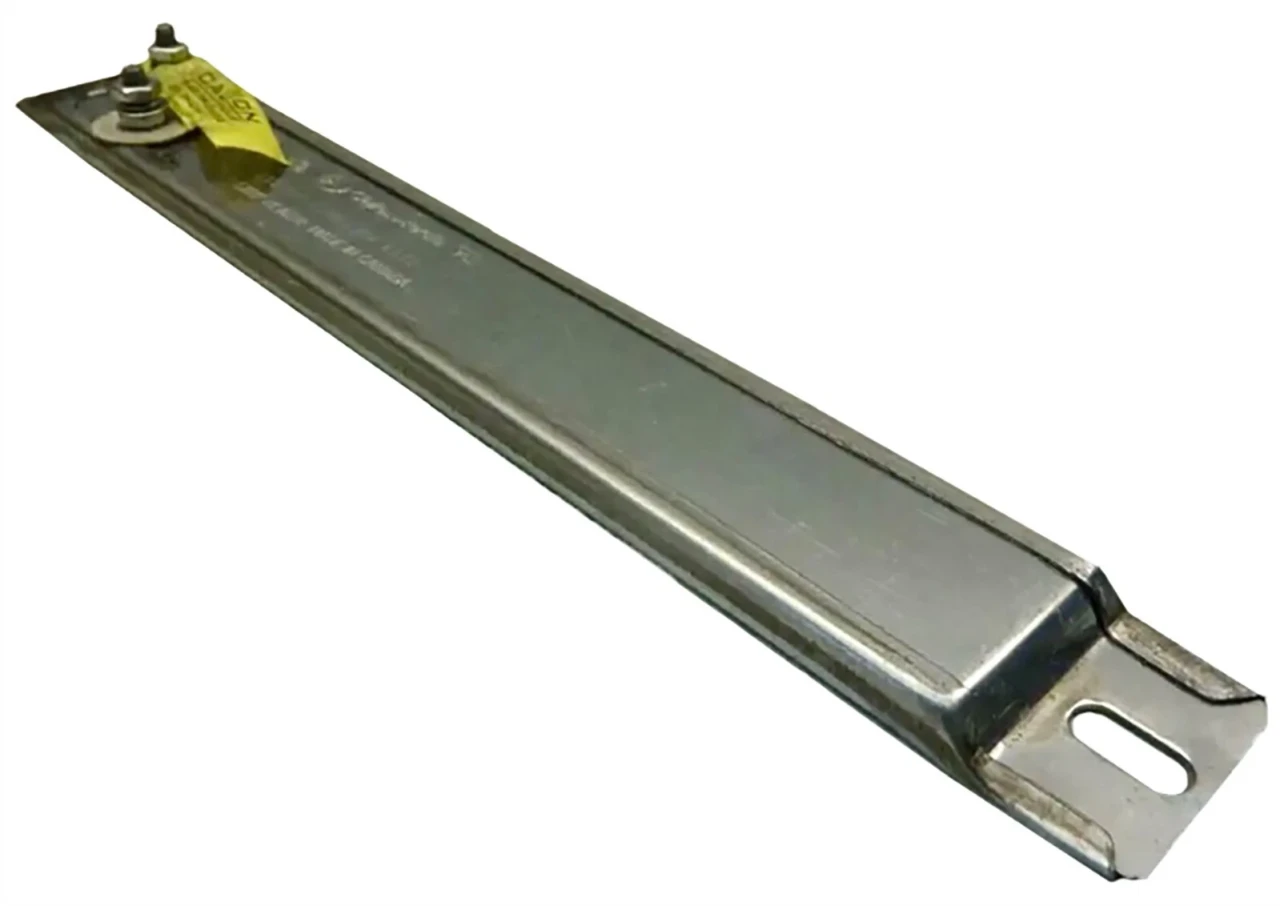

Caloritech 7.25" 120V 200W 1200F SS Series Strip Heater (SS2041)
KEY FEATURES AND BENEFITS:
Efficient heat generation: Delivers 200 watts of focused heat, ensuring rapid and consistent temperature rise in target areas.
High-temperature operation: Capable of reaching a maximum exposure temperature of 1200°F (649°C), suitable for high-demand industrial processes.
Corrosion-resistant construction: Features a durable stainless steel sheath, offering resistance to corrosion and extending the heater's service life in challenging environments.
Versatile applications: Ideal for a wide array of uses including heating platens, dies, molds, ovens, and protecting equipment from moisture.
Easy integration: Equipped with offset bolt-type terminals for straightforward electrical connections and slotted mounting holes for simple surface installation.
Manufacturer's Part Number: SS2041
Length: 7.25 inches
Width: 1.5 inches
Height (Assembled): 1.5 inches
Max Exposure Temperature: 1200°F (649°C)
Sheath Material: Stainless Steel
Watt Density: 16.4 Watts/in²
Terminals: Two offset bolt-type terminals
Heat Output: 682 Btu/hour
Mounting Type: Surface Mount
Safety First: Before installation, ensure that all power to the equipment is turned off and locked out. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
Determine Placement: Identify the optimal location for the strip heater based on the required heating area (e.g., surface of a platen, inside an oven, along a pipe). Ensure there is adequate clearance around the heater for safe operation.
Mount the Heater: Position the Caloritech SS2041 using its slotted mounting holes. Secure the heater firmly to the surface using appropriate screws (e.g., 10-32 size). Ensure the mounting is stable and vibration-free.
Wire Electrical Connections: Connect the two offset bolt-type terminals of the heater to your 120V power supply. If your system's voltage to ground exceeds 300V, secondary insulators must be used. Ensure all electrical connections are secure and comply with local electrical codes.
Integrate with Control System: The SS2041 does not have an integrated thermostat. Connect the heater to an external temperature control system, such as a mechanical thermostat, bi-metal thermostat, or a dedicated heating control panel, to regulate the desired operating temperature.
Test Operation: Once installed and wired, safely restore power to the system. Monitor the heater's performance and the temperature of the heated area to ensure it is functioning correctly and reaching the desired temperature. Make any necessary adjustments to the control system.
BENEFITS OF USING CALORITECH 7.25" 120V 200W 1200F SS SERIES STRIP HEATER (SS2041):
Provides uniform heat distribution: Reducing hot spots and improving process consistency.
Offers a long operational lifespan: Due to its robust stainless steel construction.
Contributes to energy efficiency: Through targeted heat application, minimizing wasted energy.
Simplifies installation processes: With standard mounting and electrical connection points.
Supports a wide array of industrial applications: Enhancing equipment versatility.
Ensures reliable performance: In demanding industrial environments.
Helps maintain stable temperatures: Which is critical for sensitive manufacturing processes.
Reduces maintenance needs: Due to its durable design.
Stainless steel sheath material
Operates on 120 volts
200 watts power output
Compact 7.25-inch length
Bolt-type offset terminals
Surface mount installation
Designed for hardwired connections
Features slotted mounting holes
Suitable for dry and radiant heating
Capable of 1200°F maximum sheath temperature
High watt density of 16.4 W/in²
1.5 inches nominal width and height
Provides 682 Btu per hour heat output
Product identification
- Brand: Caloritech
- Model / MPN: SS2041
