35 ton air hydraulic bottle jack details

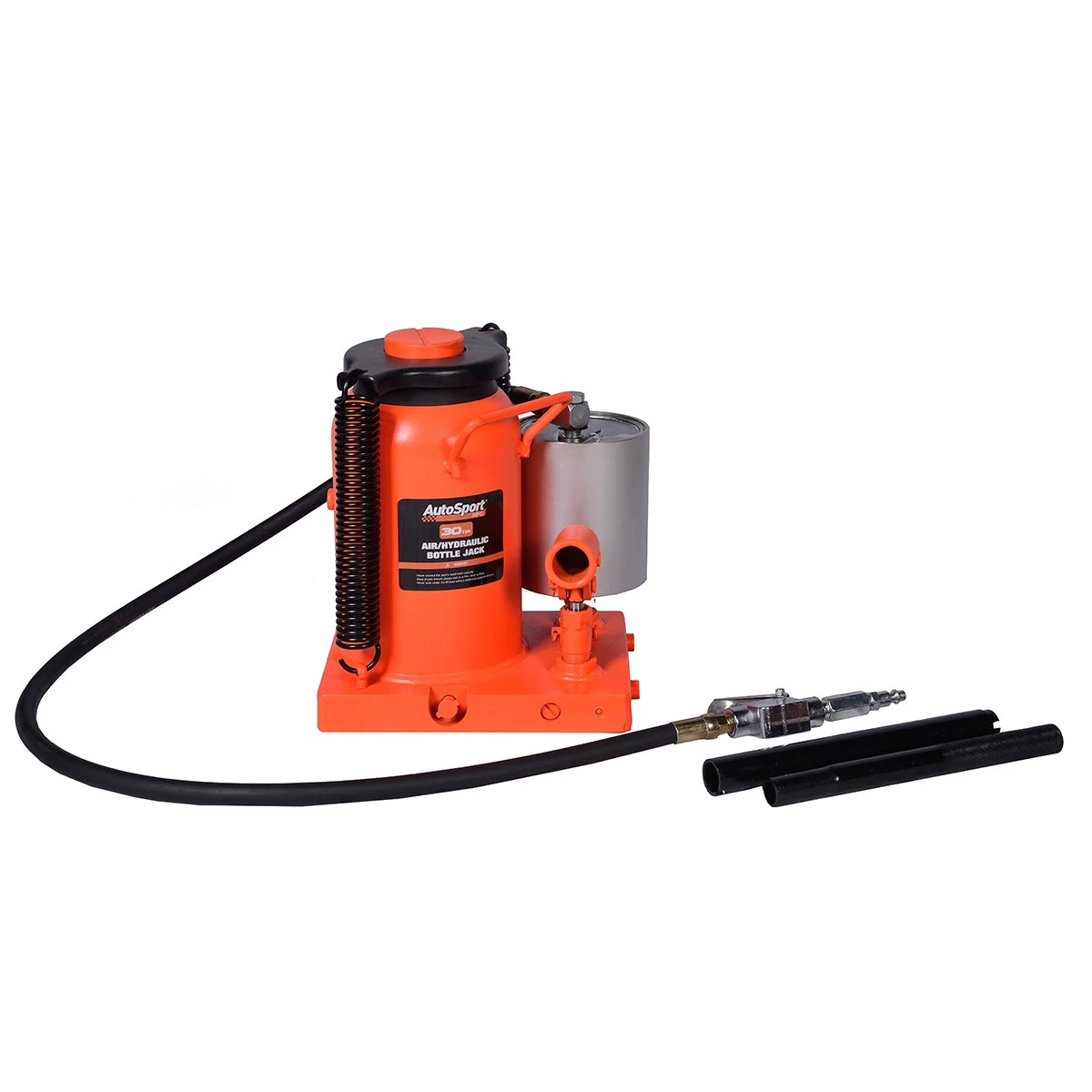

AutoSport 35 Ton Hydraulic Welded Bottle Jack with Fast Air Motor (ASM2023)
AutoSport 35 Ton Air Hydraulic Bottle Jack (ASM2023) is built to handle heavy-duty lifting tasks with superior strength and reliability. With a low height of 10 3/4 inches and a maximum height of 20 15/16 inches, this jack is ideal for various heavy lifting jobs.
This bottle jack weighs 55.7 lbs and meets ASME PASE-2019 safety standards, making it a safe and dependable choice for professionals. Its ram travel of 6 7/16 inches and screw adjustment of 3 3/4 inches offer excellent flexibility for precision lifting.
Specifications and Dimensions
Capacity (Ton): 35
Min Height (in): 10 3/4
Max Height (in): 20 15/16
Ram Travel (in): 6 7/16
Screw Adjustment (in): 3 3/4
Air Pressure (PSI): 110 – 120
Base Size (in): 9 x 7.1
Package Dimensions (in): 11.2 x 9.7 x 12
Net Weight (lbs.): 55.7
ASME PASE-2019 Compliant
Key Features and Benefits
Heavy-duty air motor ensures fast, efficient operation
Fully welded cylinder and frame for maximum durability
Recessed release valve for added protection
Thick base provides stability and support in tough conditions
Product identification
- Brand: ASMHD
- Model / MPN: ASM2023
