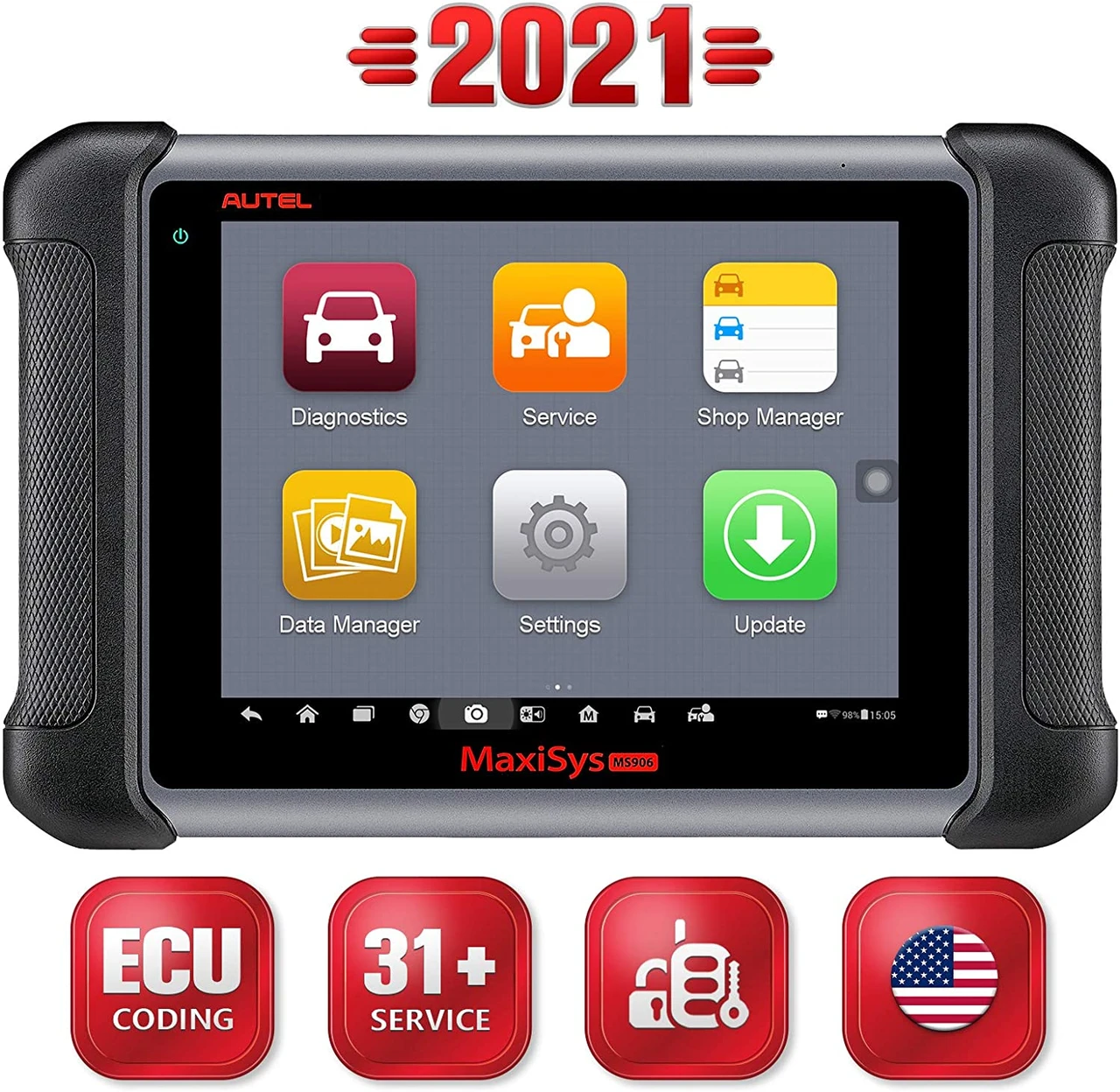

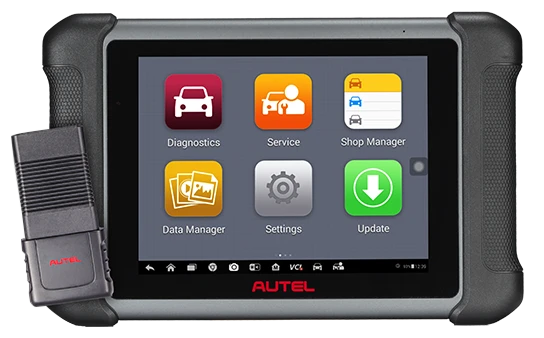

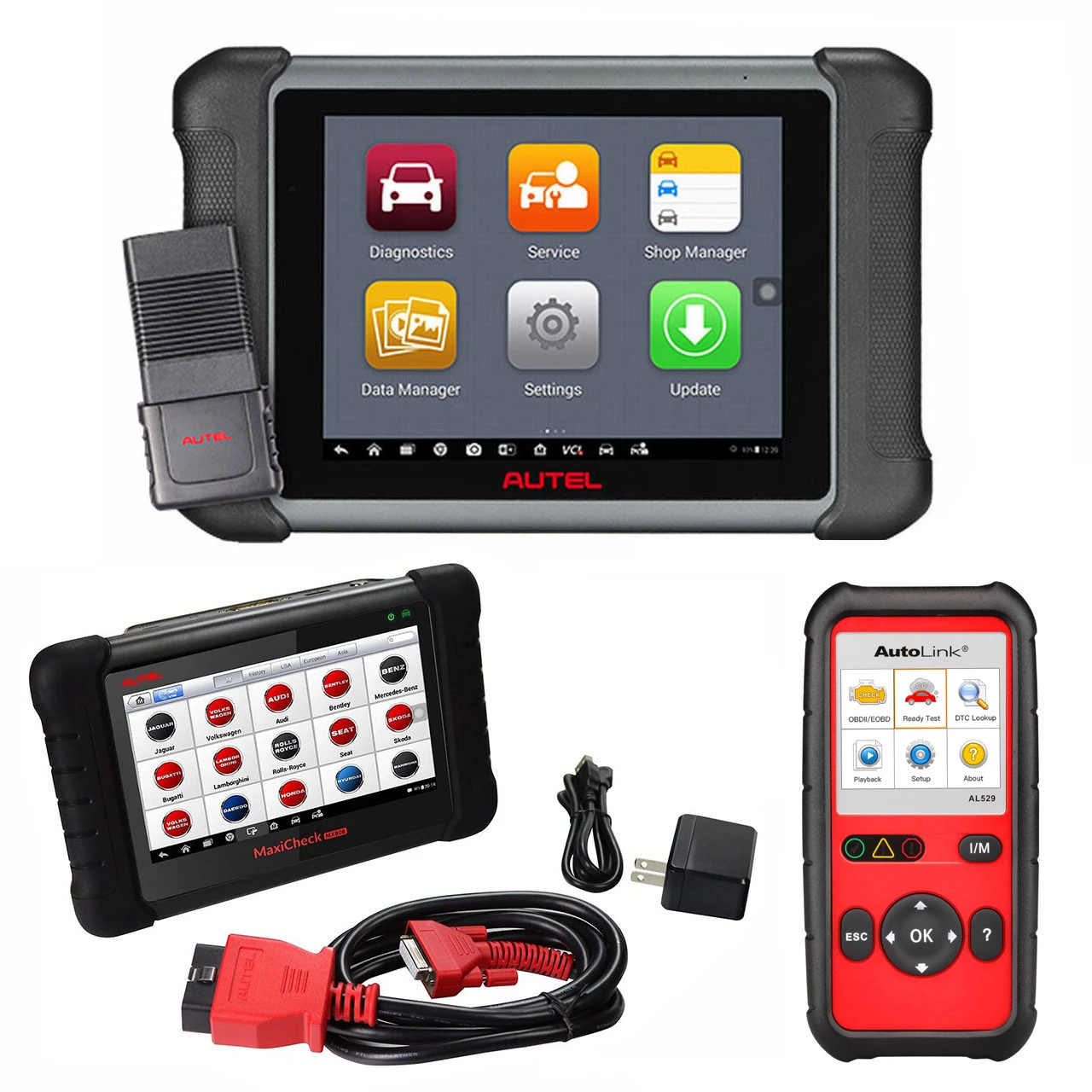

Autel USA MS906 MaxiSYS Vehicle Diagnostic Scanner/Tablet Kit w/ECU Coding, Key Coding, Bi-Directional + 2 Free Tools
AUTEL USA AL529 OBDII CODE READER DIAGNOSTIC SCANNER
AUTEL MX808 MAXICHECK ALL SYSTEM & SERVICE DIAGNOSTIC TABLET, USA VERSION
Includes 1 year of free updates, which comes loaded onto the machine.
*This is not the bluetooth version, see Autel MS906BT
• Extraordinarily powerful Samsung Exynos Hexa-core processor
• 8.0” 1024×768 LED-backlit glossy Multi-Touch capacitive display with IPS technology
• Internal reliable 32GB SSD for better performance
• Built-in 8-megapixel rear camera with autofocus and flashlight
• 802.11b/g/n Wi-Fi to access your favorite web resources
• Unique ergonomic design with rubberized outer protection and a rugged internal housing
• Built-in rechargeable lithium-polymer battery for up to 6 hours of continuous operation
• Open source Android Operating System for fast boot-up and multitasking
• Easy and intuitive navigation makes finding what you need simple and fast
• Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes
• Exceptional OE-Level system coverage for all electronic systems
• Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.
• Smart AutoVIN technology for identifying vehicles easily
• Automatic system and software updates with real-time push message notifications via Wi-Fi
• Instant remote control tech support anytime, anywhere
• Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes
• Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors
• One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
• Convenient data management system for managing internal program applications and reviewing data
Product Information
Autel 906 Manual
Autel 906 Datasheet
Operating System Android™ 4.4.2, KitKat
Processor Samsung Exynos 6-Core Processor (1.3 GHz quad-core ARM Cortex-A7 + 1.7 GHz dual-core ARM Cortex-A15)
Memory 2 GB RAM & 32 GB ROM
Display 8.0" LED capacitive touch screen with 1024x768P resolution
Wi-Fi (802.11 b/g/n)
SD Card (Support up to 32GB)
Camera (rear) Rear-facing, 8.0 Megapixel, AF with Flashlight
Sensors Gravity Accelerometer, Ambient Light Sensor (ALS)
Audio Input/Output Microphone, Single Speaker
Power and Battery 3.7V/5000 mAh lithium-polymer battery, Charging via 12 V AC/DC power supply
Input Voltage DC/12 V (9-35 V)
Power Consumption 5 W
Operating Temperature -10 to 55°C (14 to 131°F)
Storage Temperature -20 to 70°C (-4 to 158°F)
Housing Rubberized outer protection and rugged internal housing
Dimensions (W x H x D) 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0mm (1.4”)
Weight NW: 0.93 kg (2.05 lb.)
Product identification
- Brand: Autel
- Model / MPN: MS906
