American Autowire Route 9 Universal Wiring System (AAW510625)

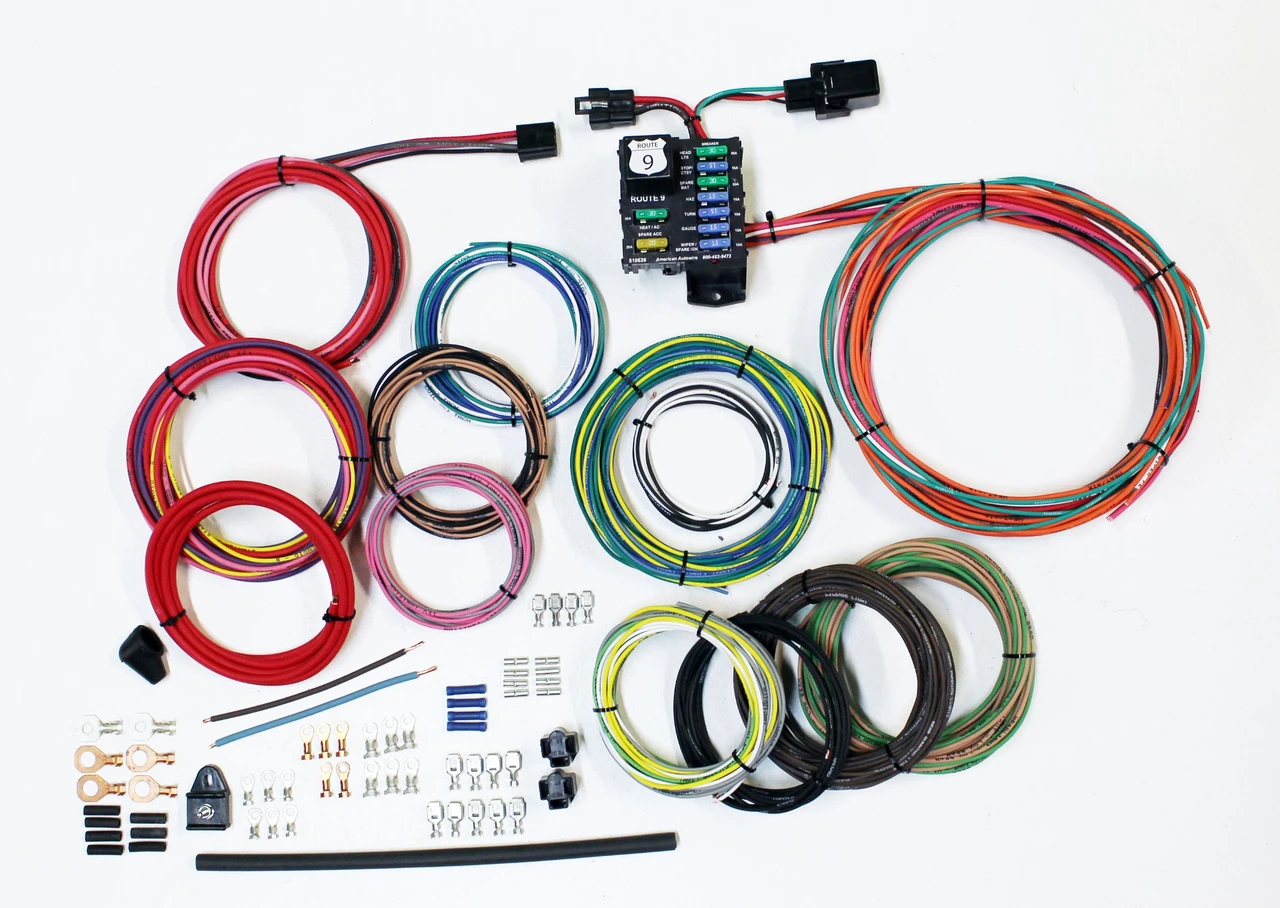

The American Autowire Route 9 Universal Wiring System (AAW510625) is a complete, entry-level electrical solution designed for builders who need a straightforward and reliable wiring system. Taking design cues from American Autowire's more advanced Highway Series kits, the Route 9 provides all the essential wiring in a compact, organized, and "bulletproof" package. This universal kit is the ideal choice for hot rods, rat rods, or any custom vehicle that requires a basic yet fully-functional electrical system. It simplifies the often-complex process of wiring a vehicle with high-quality components and clear instructions.
KEY FEATURES AND BENEFITS:
The compact, ATO-style fuse panel includes separate power busses for the battery, ignition, and accessories, ensuring organized power distribution.
All high-amperage output circuits use premium spring steel reinforced terminals for long-lasting connections.
Color-coded and labeled GXL wires with circuit descriptions printed every 3 inches for easy identification and routing.
Integrated combination turn signal/hazard flasher mounted on the panel, compatible with LED lighting.
Inline horn relay pre-installed to simplify installation.
Product ID: AAW510625
Fuse Panel Type: Compact ATO-Style
Wire Type: GM color-coded GXL
Included in Product:
Compact ATO-style fuse panel
Complete vehicle wiring harness
Inline horn relay
Combination turn signal/hazard flasher (mounted on panel)
Headlight connectors and terminals
Full-color installation instructions
Plan Your Layout: Before beginning, plan wire routing through the chassis. Extra-long wire lengths allow for a clean and customized setup.
Mount the Fuse Panel: Install the compact fuse panel in a secure and accessible location, protected from environmental elements.
Connect Main Power: Attach the heavy-gauge main power feed with fusible link to the battery and connect the alternator’s power output.
Route and Connect Circuits: Run wires to components such as engine, steering column, instrument cluster, and lighting.
Trim and Terminate: Cut wires to length and terminate them with the included connectors, using the printed labels for guidance.
Final Connections and Testing: Once installed, reconnect and test all circuits to ensure functionality before securing final installation.
BENEFITS OF USING THE AMERICAN AUTOWIRE ROUTE 9 UNIVERSAL WIRING SYSTEM (AAW510625):
Provides a complete and streamlined wiring solution for custom builds, eliminating the need to source individual wires and components.
Color-coded and labeled wires reduce installation errors and make the process accessible for all skill levels.
Ensures compatibility across all included circuits by offering a comprehensive system in one package.
High-quality, automotive-grade wire and terminals offer long-term reliability and resistance to heat and abrasion.
Delivers a dependable "bulletproof" electrical foundation that minimizes issues common with lower-quality wiring setups.
Integrated Power Busses: Separate busses for battery, ignition, and accessories simplify power management.
Universal Steering Column Support: Compatible with user-specified steering column turn signal switches.
Dedicated Instrument Cluster Feeds: Provides wiring for essential gauges and indicator lights.
Comprehensive Engine Harness: Includes wiring for ignition coil, oil pressure sender, water temperature sender, starter, and distributor.
Full Lighting Accommodation: Covers headlights, parking lights, directional signals, brake lights, and license plate lights.
Electric Fuel Sender Wires: Pre-routed wires included for fuel tank sending units.
Superior Wire Insulation: Durable insulation protects wiring against heat and abrasion.
