American Autowire 1957-60 Ford Truck Classic Update Kit (AAW510651)
The American Autowire 1957-60 Ford Truck Classic Update Kit (AAW510651) is a comprehensive wiring solution for 1957-1960 Ford F-Series truck projects. This kit replaces the entire original chassis harness, providing a reliable, modern electrical foundation capable of supporting aftermarket modifications. It accommodates modern gauges, electronic fuel injection (EFI), high-output charging systems, and air conditioning. All harnesses use high-quality GXL wire, and each wire is labeled every 3 to 5 inches, simplifying installation and future troubleshooting.
KEY FEATURES AND BENEFITS:
Complete Vehicle Solution: Provides all harnesses needed to rewire a vehicle from headlight to taillight, ensuring updated and safe electrical systems.
Modern Fuse Panel: Updated ATC fuse panel with blade-style fuses offers a reliable, easy-to-service power distribution point enclosed in a labeled box for protection and identification.
Accommodation for Modern Upgrades: Designed to handle circuits for EFI, high-output alternators, aftermarket gauges, and engine swaps.
Easy Installation: Pre-built harnesses and a gauge cluster disconnect system make the dash plug-and-play. Labeled wires and detailed instructions streamline the process.
Enhanced Reliability: Replacing old, brittle wiring with a new harness eliminates common electrical failures and ensures a dependable system.
Part Number: AAW510651
Vehicle Compatibility: 1957-1960 Ford F-Series Trucks (F-100, F-250, F-350, and panel trucks)

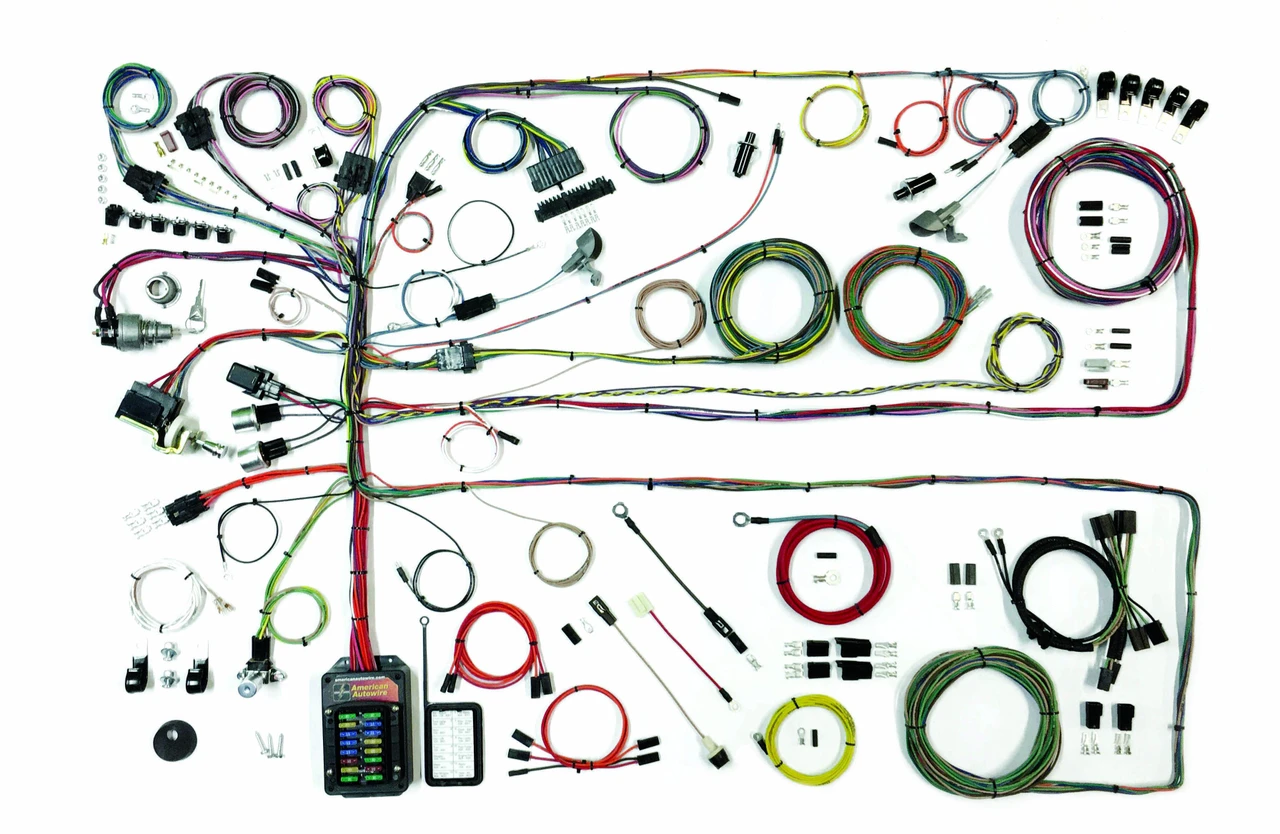

Included Components:
Pre-built dash harness
Engine and front light harness
Rear body harness
Headlight switch with circuit breaker
Floor dimmer switch
Ignition switch with keys
Steering column adapter kit
175 amp mega fuse kit with 6-gauge charge cable
Original-replacement connectors, terminals, and lamp sockets
Full-color schematics and installation instructions
Preparation: Disconnect the battery and carefully remove the old wiring harness, noting all major connections.
Fuse Panel Installation: Mount the ATC fuse panel in the original dash location and secure according to instructions.
Harness Routing: Route the main dash harness through the firewall, then connect the engine, front light, and rear body harnesses as indicated in the schematics.
Component Connections: Connect wires to components like the headlight switch, ignition switch, gauges, lights, and engine sensors using the labeled wires for easy identification.
Final Checks: Double-check all connections against the diagrams, reconnect the battery, and test all electrical systems to ensure proper functionality before driving.
BENEFITS OF USING THE AMERICAN AUTOWIRE 1957-60 FORD TRUCK CLASSIC UPDATE KIT (AAW510651):
Complete Modernization: Updates the truck's electrical system to support modern technology and accessories.
Increased Safety: Modern wiring and fuses reduce the risk of shorts, overheating, and fire.
Customization-Ready: Extra-long leads and dedicated circuits accommodate a variety of modifications without splicing.
Professional Appearance: High-quality components provide a clean and organized look for your truck project.
Updated ATC fuse panel with labeled lid
Pre-built dash harness with gauge cluster disconnect
Extra-long leads on engine and front light harness for custom routing
Six-way power accessory plug for add-on items
Rear body wiring with extended leads for various routing options
175 amp mega fuse kit with 6-gauge charge cable for high-output charging
Replacement headlight switch with 26-amp circuit breaker
New floor-mounted dimmer switch
Replacement ignition switch compatible with HEI and EFI systems
Steering column adapter kit for stock or aftermarket columns
Original-replacement connectors, terminals, and lamp sockets included
Product identification
- Brand: American Autowire
- Model / MPN: AAW510651
