American Autowire 62-74 Volks Beetle Classic Update Kit (AAW510419)

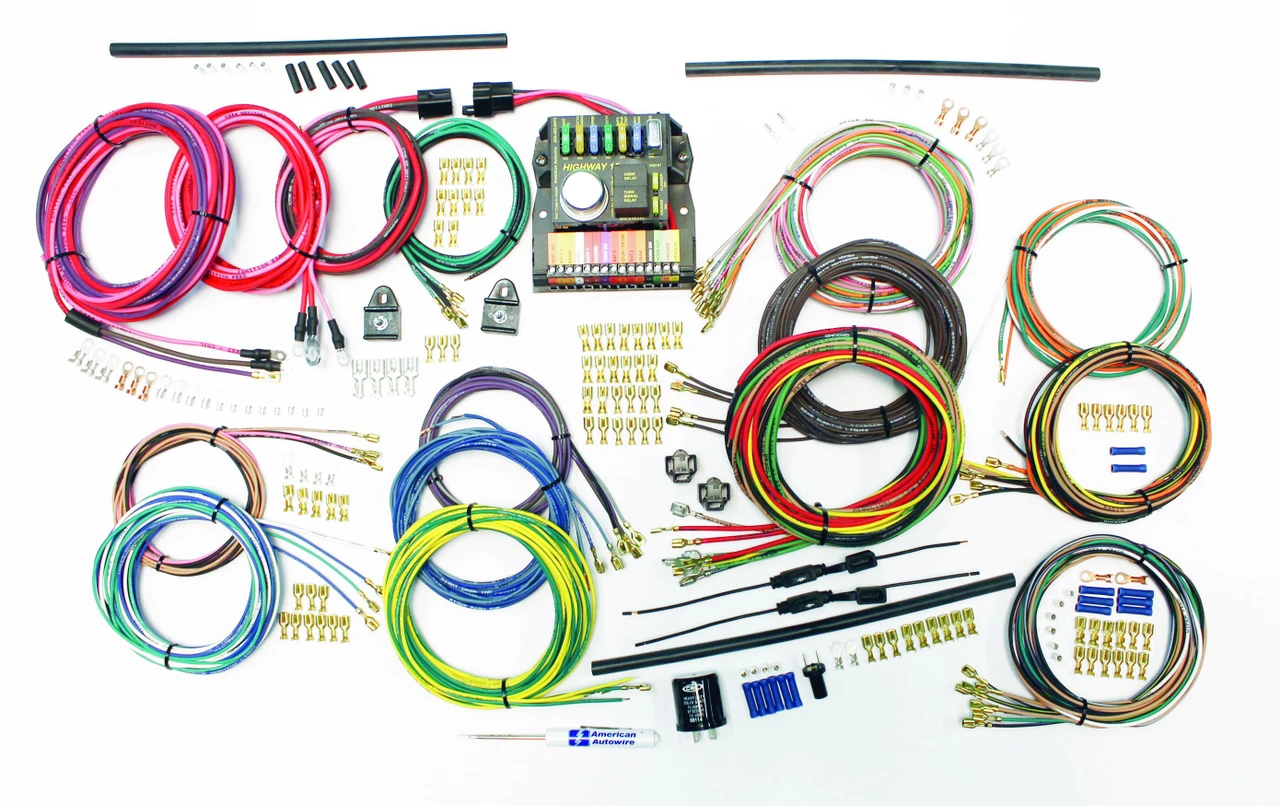

The American Autowire 62-74 Volks Beetle Classic Update Kit (AAW510419) is a full headlight-to-taillight wiring harness designed to modernize the electrical system of 1962–1974 Volkswagen Beetles converted to a 12-volt setup. Ideal for restoration projects, this kit offers more electrical circuits than the original factory harness, providing a safe and reliable foundation for powering modern accessories and upgrades while preserving the classic Beetle’s functionality.
KEY FEATURES AND BENEFITS:
Modern Fuse Panel: Updated ATO-style fuse panel mounts in the original location to provide an organized central hub for circuits.
Durable Wiring: GXL wire offers superior resistance to heat, abrasion, and chemicals compared to factory PVC-coated wire.
Easy Identification: Color-coded wires printed with functions every 3–5 inches simplify installation and future service.
Custom Routing: Extra-long engine and lighting leads allow flexibility for various engine and transmission combinations.
Complete Solution: Includes all components required for a full headlight-to-taillight wiring update.
Part Number: 510419
Intended Application: Volkswagen Beetle (1962–1974)
Compatibility: Designed for 12-volt electrical systems
Fuse Panel Style: ATO
Contents Included:
Updated ATC fuse panel and fuses
Engine and front light harness with extra-long leads
Battery and ignition junction blocks
Rear body wiring with extra-long leads
Heavy-gauge fusible link feed
Diodes and complete instructions
Original-style terminals
LED turn signal flasher
Electric fuel tank sender lead wires
Preparation: Disconnect the battery and remove the old wiring harness. Note any important original connections for reference.
Fuse Panel Installation: Mount the ATC-style fuse panel in the factory location.
Harness Routing: Route new harness sections, using extra-long leads to fit engine, front, and rear body wiring.
Connecting Components: Attach wires to switches, lights, and other parts using original-style terminals. Use the printed labels for guidance.
Final Connections: Connect the fusible link feed to the main power source and install battery and ignition junction blocks.
Testing: Reconnect the battery and test all functions—lights, horn, signals, and gauges—for correct operation.
BENEFITS OF USING THE AMERICAN AUTOWIRE 62-74 VOLKS BEETLE CLASSIC UPDATE KIT (AAW510419):
Expanded Electrical Capacity: Adds circuits for powering modern electronics and accessories.
Enhanced Safety: GXL wire and fusible link feed provide improved reliability and protection.
Simplified Installation: Color-coded and printed wires ease installation for professionals and hobbyists.
Customization Flexibility: Extra-long leads support modifications and custom component layouts.
Preserves Originality: Integrates seamlessly with original VW switches while adding modern capability.
ATO-style fuse panel with reinforced terminals.
Main power feed protected by heavy-gauge fusible link.
Includes diodes and instructions for single-bulb dash turn signal indicators.
Maintains dimmer and “flash to pass” functions via VW steering column switch connection.
Engine wiring supports coil, oil pressure sender, starter, tachometer, and temp sender.
Original-style terminals provided for authentic connections.
LED-compatible flasher included.
Supplied with lead wires for electric fuel tank sender.
Product identification
- Brand: American Autowire
- Model / MPN: AAW510419
