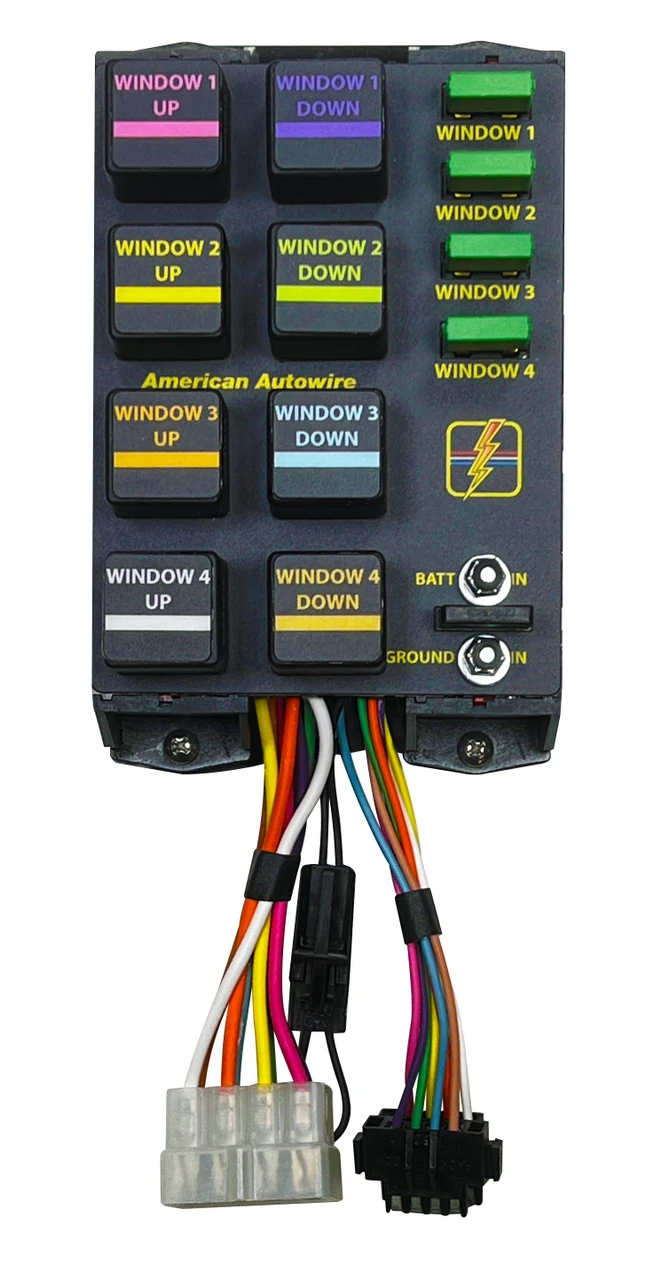

American Autowire 4-Window Power Reversing Relay Kit (AAW510962)
The American Autowire 4-Window Power Reversing Relay Kit (AAW510962) is designed to provide reliable reversing power for up to four power windows and other motor-driven accessories. Equipped with 40-amp relays and color-coded wiring, this kit simplifies installation while offering long 120-inch wire leads for flexible mounting options. It can function as a standalone system or integrate seamlessly with American Autowire Factory Fit and Street Rod Division harnesses, making it a versatile choice for a wide range of automotive applications.
KEY FEATURES AND BENEFITS:
Provides reversing power for up to four power windows and other motor-controlled accessories.
Equipped with 40-amp relays for reliable operation.
Color-coded relays and wires simplify installation.
Includes 120-inch wire leads for versatile mounting locations.
Compatible for use as a standalone system or with American Autowire harnesses.
Part Number: 510962
Amperage: 40 amps
Wire Material: GXL polyethylene cross-link
Base Plate Material: G10 composite
Included in the box:
MEGA Fuse Block & Cover Assembly
Self-resetting circuit breakers
10-gauge feed and ground wires
Rubber sleeves and ring terminals
Mounting hardware not included
Select a Mounting Location: Mount the relay panel in a secure and accessible area inside the vehicle.
Install the Fuse Block: Mount the MEGA Fuse Block under the hood, close to the battery. Route the red 10-gauge feed wire from the relay panel to the fuse block.
Connect Power: Attach the red feed wire to the "Battery In" stud on the relay panel, then connect it to the MEGA Fuse Block and the battery.
Connect Ground: Secure the black 10-gauge ground wire to the "Ground In" stud on the panel and route it to a suitable chassis ground.
Wire the Switches and Motors: Connect the kit’s wires to the switches and motors according to the color-coded instructions, ensuring proper polarity reversing functionality.
BENEFITS OF USING THE AMERICAN AUTOWIRE 4-WINDOW POWER REVERSING RELAY KIT (AAW510962):
Flexibility: Works with a variety of motor-driven accessories, not limited to power windows.
Simplified Installation: Color-coded wires and long leads make wiring straightforward.
System Protection: Includes self-resetting circuit breakers to safeguard the system against overloads.
Versatility: Can be used as a standalone kit or integrated with American Autowire harnesses.
Compatible with both high- and low-amperage control switches.
Durable G10 composite base plate ensures heat and electrical insulation.
Relay labels and wires are color-coordinated for easy setup.
Includes 120-inch wire leads for flexible mounting.
Self-resetting circuit breakers provide built-in protection.
Can function independently or integrate with American Autowire harnesses.
Supports power windows, convertible tops, power seats, and antennas.
Uses GXL polyethylene cross-link wires for durability and reliability.
Product identification
- Brand: American Autowire
- Model / MPN: AAW510962
