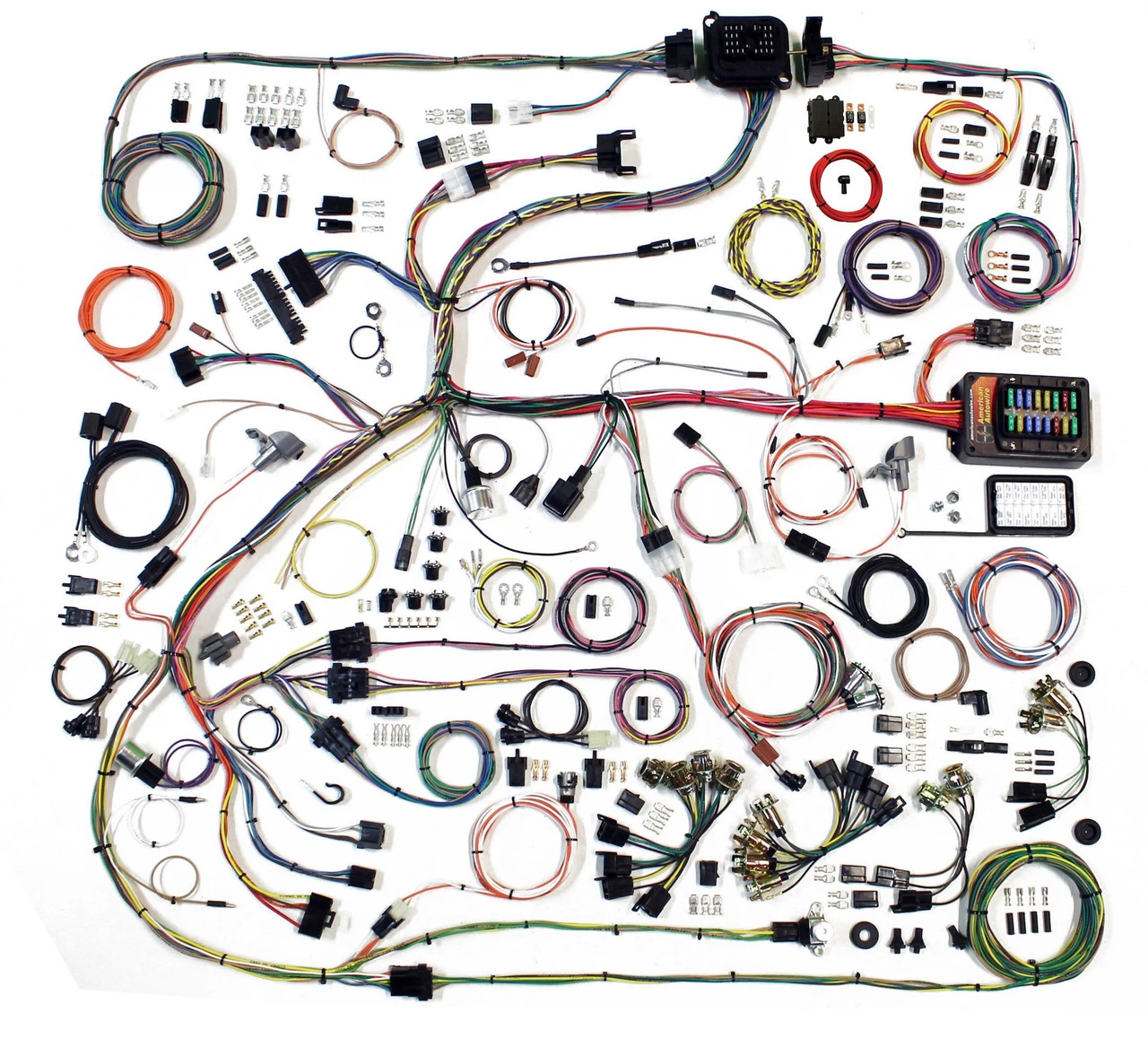

American Autowire 1968-70 Mopar B Body Classic Update Kit (AAW510634)
The American Autowire 1968-70 Mopar B Body Classic Update Kit (AAW510634) is a comprehensive wiring solution for a full vehicle rewire. It modernizes your classic Mopar's electrical system, providing additional circuits and features to support popular modifications and aftermarket accessories while ensuring a reliable and organized electrical foundation.
KEY FEATURES AND BENEFITS:
Accommodates Modern Upgrades: Supports EFI, aftermarket gauges, air conditioning, and power accessories with additional circuits beyond the original harness.
Simplified Installation: Modern GXL wires labeled every 3-5 inches simplify installation and troubleshooting.
Modern Fuse Panel: Updated ATO/ATC fuse panel with more circuits, designed to fit stock location with a template for minor firewall modifications.
Enhanced Power and Charging Support: Includes a 175-amp mega fuse kit with 6-gauge charge cable for high-output alternators.
Complete and Comprehensive: Provides pre-built dash, engine/front light, and rear body harnesses for a full vehicle rewire.
Wire Type: GXL wire
Fuse Type: ATO/ATC style
Included Components:
New ATO/ATC fuse panel
Pre-built dash harness with gauge cluster disconnect system
Engine and front light harness
Rear body wiring harness
175-amp mega fuse kit with 6-gauge charge cable
New headlight switch with internal circuit breaker
New floor dimmer switch
Original-style connectors and terminals
Steering column adapter kit
Correct original replacement printed circuit board connector
Preparation: Disconnect the battery and remove the old wiring harness.
Fuse Panel Installation: Install the new ATO/ATC fuse panel in the stock location using the provided template for any firewall modifications.
Harness Routing: Route the dash, engine, and rear body harnesses through the vehicle; extra-long leads allow flexible routing.
Connect to Components: Use labeled wires and connectors to hook up headlights, taillights, engine sensors, gauges, and accessories.
Steering Column Integration: Connect the harness to your stock or aftermarket steering column using the included adapter kit.
Power Up: Install headlight switch, dimmer switch, and charging system components. Reconnect the battery and test the electrical system.
BENEFITS OF USING AMERICAN AUTOWIRE 1968-70 MOPAR B BODY CLASSIC UPDATE KIT (AAW510634):
Safety and Reliability: Replaces old wiring prone to shorts and failures with a safer, robust system.
Accommodates Growth: Extra circuits support future modifications and upgrades without adding separate wiring.
Simplified Troubleshooting: Labeled wires make diagnosing electrical issues much easier.
Professional Finish: Correct original-style connectors and modern fuse panel result in a clean, organized installation.
Time-Saving: Pre-built harnesses and detailed instructions reduce complexity compared to building a custom harness.
Pre-built dash, engine, and rear body harnesses for a complete vehicle rewire.
Unique "cluster harness disconnect" system for easy instrument cluster service.
Extra-long wire leads for flexible factory or custom routing.
New headlight switch with integrated circuit breaker.
Includes horn relay, standard turn signal flasher, and hazard flasher mounted remotely on the harness.
Provides a switched trigger wire for custom electric fan relay.
Six-way power accessory plug for convenient power access.
Connectors for both original points-type and GM H.E.I. distributors.
Product identification
- Brand: American Autowire
- Model / MPN: AAW510634
