Aims Power Solar Kit 240 W Solar | 300 W Pure Sine Inverter 24Vdc | 200 A Batteries (KITB-30024120-A1)
AIMS Power introduces the new all-in-one solar kit for all of your off grid power needs. Whether you’re supplying power to a small electronic device in a bus/van or lighting for in a home , this solar kit includes all necessary products required and bundled for your convenience. This 240 watt solar kit is most effective when used to power small devices. The 300 watt 24 VDC inverter runs more efficiently and is pure sine, safe to use with almost any device up to 2.5 amps. Because this kit runs at 24V, you can use more solar panels with the included 10 amp charger at 24VDC if needed. The panels are covered in tempered glass to protect from hazardous weather. The PV wiring is protected against UV, water, ozone, fluids, oil, salt and general weathering. The powerful 100 amp batteries provide enough power for your small electronics and will stay charged with optimal sunlight. Each system comes with a wiring diagram upon purchase. Double the power compared to the “all in one” options.
Easy to connect and use
Works with small size devices up to 300 watts/ 2.5 AC amps
Ideal for computers, video games, lights, electronics and cell phones
Expandable – supports multiple batteries
Total panel dimensions are @12 sq ft
*The solar panels will recharge a 50% depleted 200 amp battery bank in 5 hours with full sunlight.*
You can find the specifications for each product by clicking on the links below.
This solar kit includes:

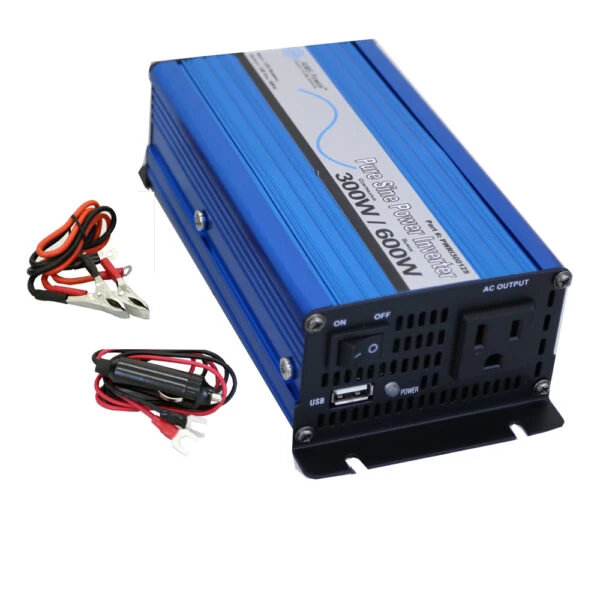

PWRI30024S – 300 watt inverter 2.5 amps
PV120MONO – qty 2 – 120 watt mono solar panel @12 SQ FT

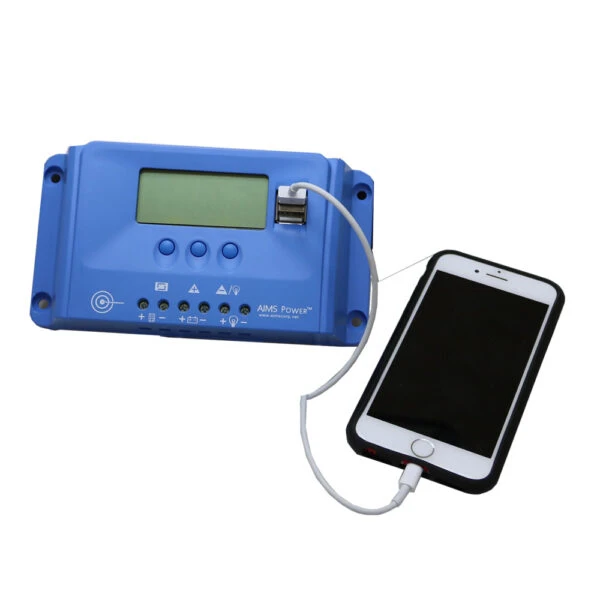

SCC10APWM – 10 amp PWM solar charge controller

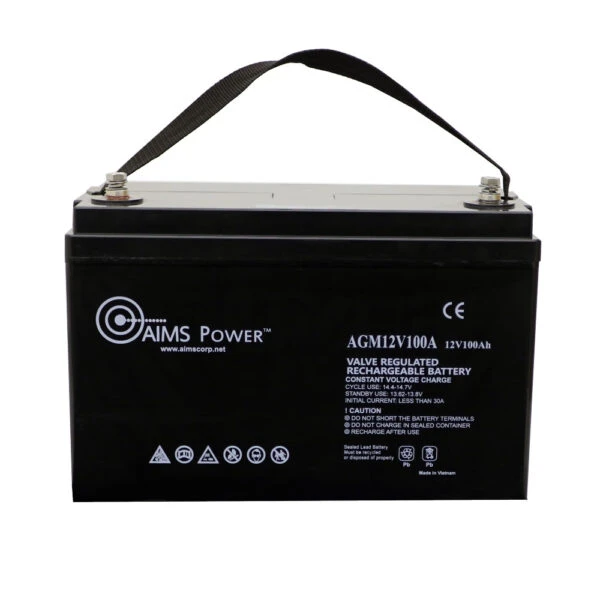

AGM12V100A – qty 2 – 100 ah AGM deep cycle battery
PV100FTSET – 100 foot 10AWG PV wires for solar panels to charge controller male & female
PVL30FT – 30 foot PV wire for Charge Controller to Battery (cut to lugged ends for battery)
CBL06FT8AWG – 6 ft 8AWG set of cables battery bank to inverter
CBL01FT8AWGRED – 1 ft jumper for fuse kit

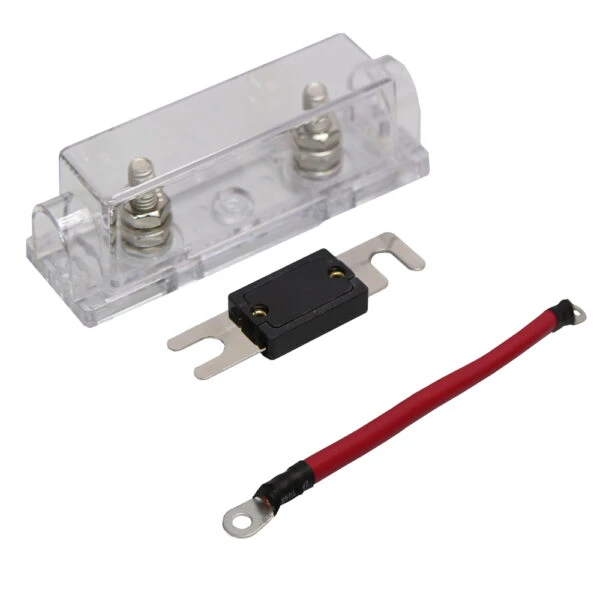

ANL50KIT – 50 amp inline fuse kit
Solar inline fuse 15A
Product identification
- Brand: Aims Power
- Model / MPN: KITB-30024120-A1
