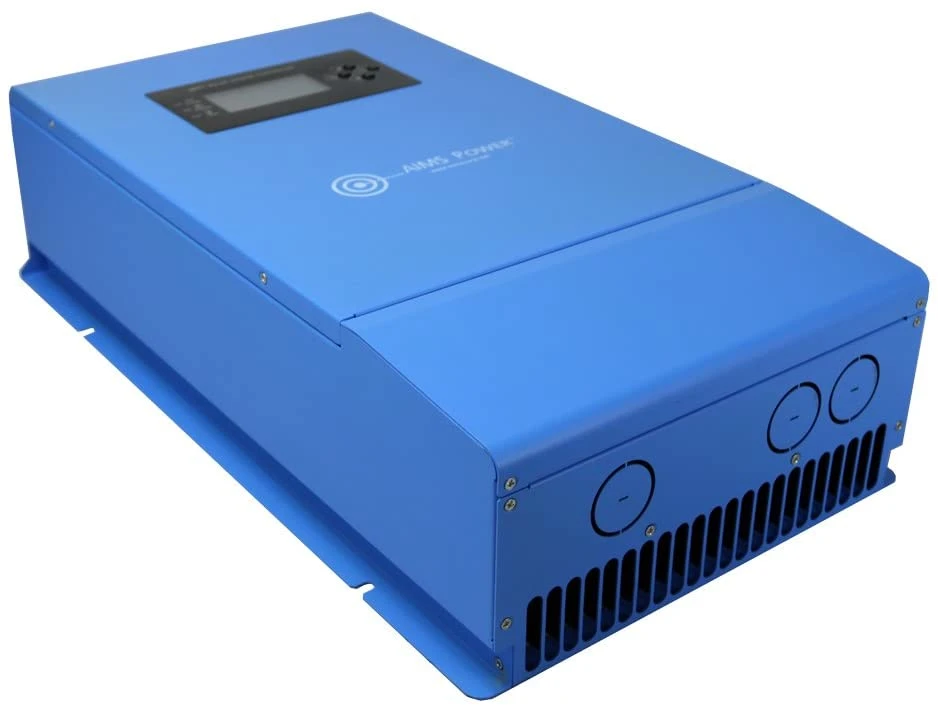

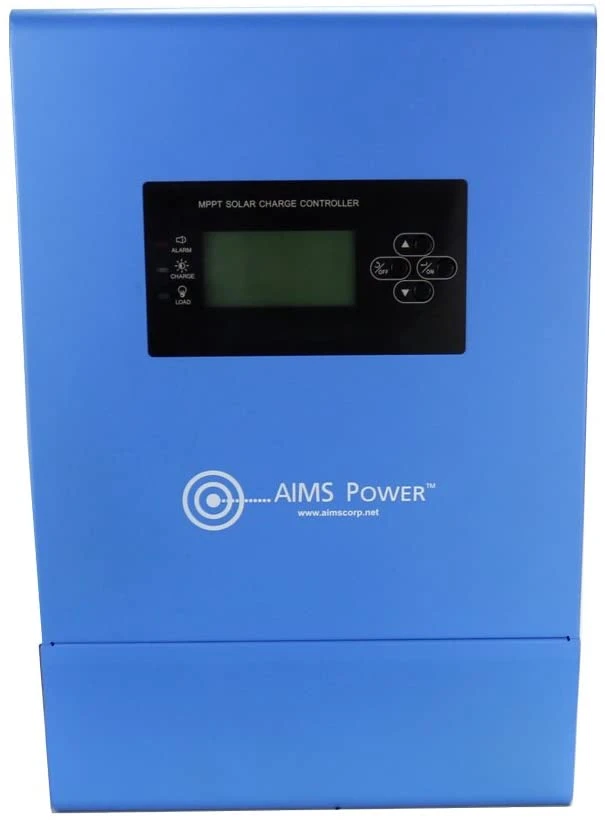

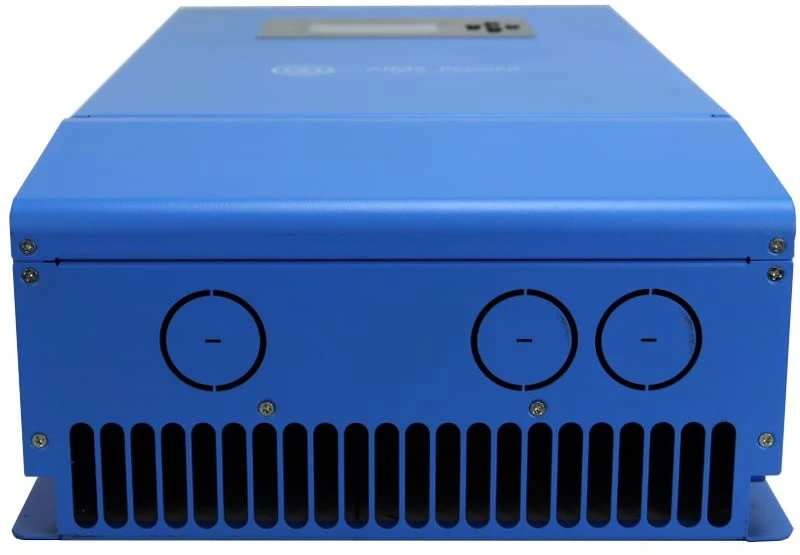

AIMS Power 100 Amp Solar Charge Controller (SCC100AMPPT)
AIMS Power SCC100AMPPT 100 AMP Solar Charge Controller is designed for efficient solar energy management with advanced MPPT (Maximum Power Point Tracking) technology. Operating at an impressive efficiency range of 97.5% to 99%, this controller ensures minimal power loss and maximized energy harvest. Its smart tracking algorithm automatically adjusts to changing weather conditions, optimizing solar charging for various voltage systems. Featuring a temperature compensation function with an included battery temperature sensor, it enhances battery performance and longevity. With an IP43-rated metal enclosure, LED indicators, and an LCD display for real-time monitoring, it is a robust solution for residential, marine, and off-grid applications.
MPPT technology with efficiency up to 98.5%.
Automatic voltage tracking for optimal solar energy utilization.
Compatible with multiple battery types (gel, AGM, flooded, lithium).
Temperature compensation with an included battery temperature sensor.
LED indicators and LCD display for real-time status monitoring.
Overload, short circuit, and thermal protection for enhanced safety.
IP43-rated metal enclosure for durability in harsh environments.
Maximizes solar panel efficiency with intelligent power tracking.
Reduces energy loss, optimizing overall solar system performance.
Supports various battery types for flexible energy storage solutions.
Real-time monitoring ensures easy system management.
Enhanced durability with weather-resistant design.
Reliable and safe operation with built-in protections.
Technical Specifications:
Model: SCC100AMPPT
Maximum PV Input: 12V – 1400W, 24V – 2800W, 36V – 4200W, 48V – 5600W.
Maximum Charging Current: 100 Amps.
Maximum DC Load Current: 60 Amps.
Max PV Open Circuit Voltage: 150Vdc.
Self Power Consumption: < 4 Watts.
Efficiency: Up to 98.5%.
Operating Voltage Range: 15-150Vdc @12V, 34-150Vdc @24V, 50-150Vdc @36V, 60-150Vdc @48V.
Charging Stages: Bulk, Absorption, Float, Equalize.
Temperature Range: -25°C to 60°C (-13°F to 140°F).
Unit Weight: 20 lbs; Boxed Weight: 22 lbs.
Dimensions: 17.5”L x 9”W x 4.7”H.
Product identification
- Brand: Aims Power
- Model / MPN: SCC100AMPPT
