Aims Power Solar Array Combiner Box 60A 200Vdc 3 String – 10Kw Prewired (COM3IN-60A0)
The AIMS Power Solar Array Combiner Box provides a convenient solution for large PV solar array installations. The Combiner Box is exactly that… a box that serves as a central location for multiple input to a single output load. At 10KW/20KW output and 200Vdc input, this pre-wired box, with MC4 input and output connectors and a NEMA waterproof case is a must have for off-grid and grid tied systems. Ideal for larger solar arrays/high current systems, easing the hassle of dealing with several wires and combines all wires into one place for simple installation and maintenance. The combiner box eliminates the need for extra equipment such as output breakers, branch connectors and disconnect switches. The convenient MC4 connectors eliminate the need to hardwire, allowing for a quick plug and use solution.
1000V DC max input
125A resettable output breaker
3-25A (COM3IN) 6-25A (COM6IN) replaceable fuses
Lightning protected

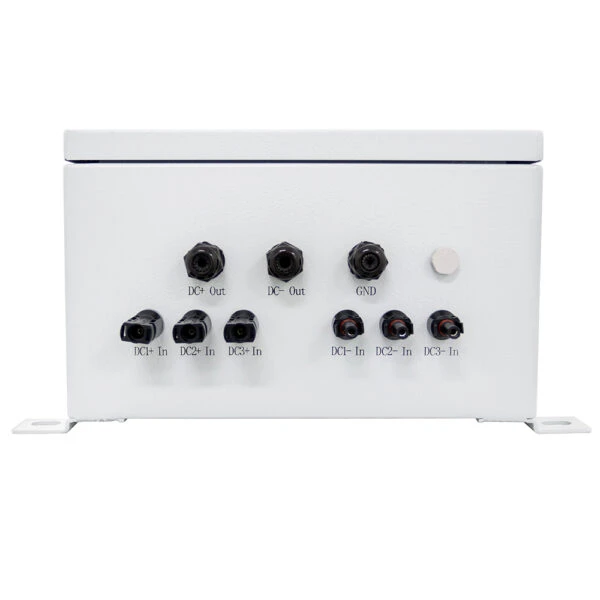

MC4 input and output connections
DC input 3 or 6 set 60/120A output
Flexible mounting options; mount on a support bracket, plinth or racking system
Connect 3-6 PV strings and 2 DC outputs per polarity
Waterproof PG9 DC output and ground protection

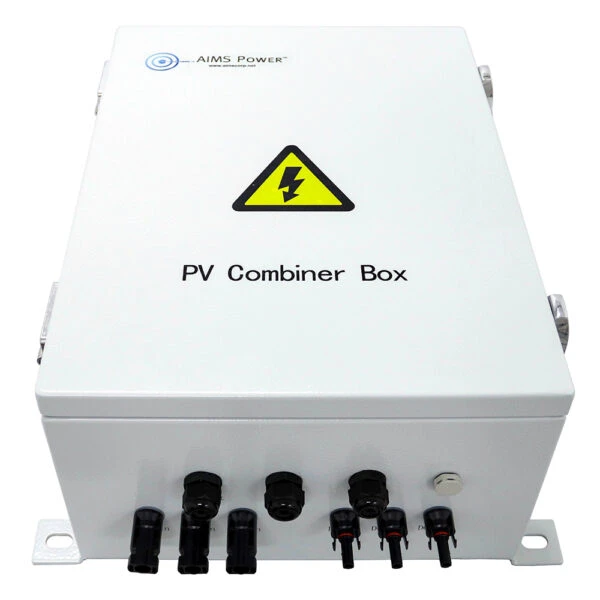

NEMA & IP65 rated case with tamper proof locks

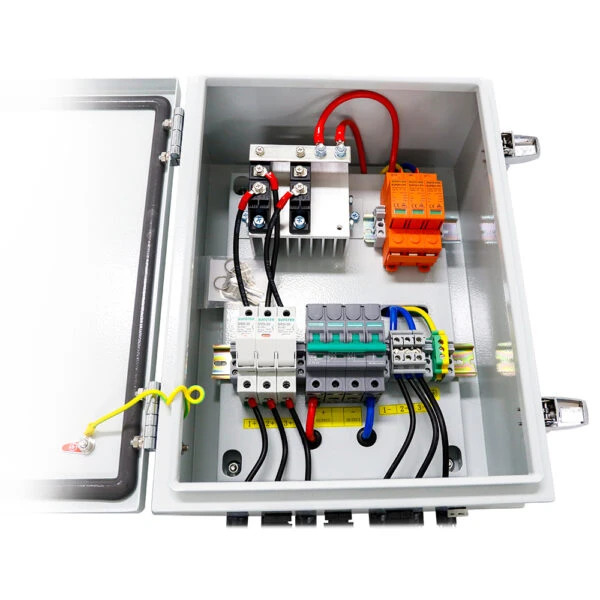

Touch safe fuse holder
Max input current – 25A
Max output current – 60A
Output power – 10KW
DC fuse – 200Vdc
Output breaker – 125A
DC switch – 500Vdc/40DA
Operating temp: -13°F to 104°F w/o derating
Altitude: 0 to 6560 ft w/o Derating

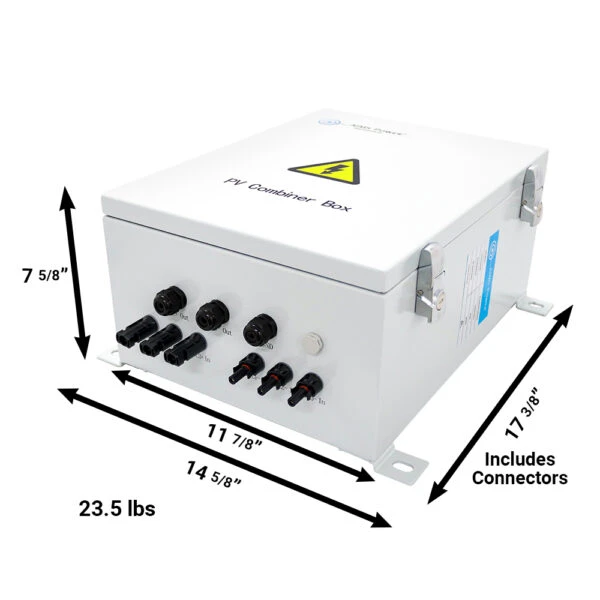

Dimensions: 14 5/8”W X 17 3/8” L X 7 5/8”H
Weight: Unit 23.5 lb, Boxed 26 lb
Product identification
- Brand: Aims Power
- Model / MPN: COM3IN-60A0
