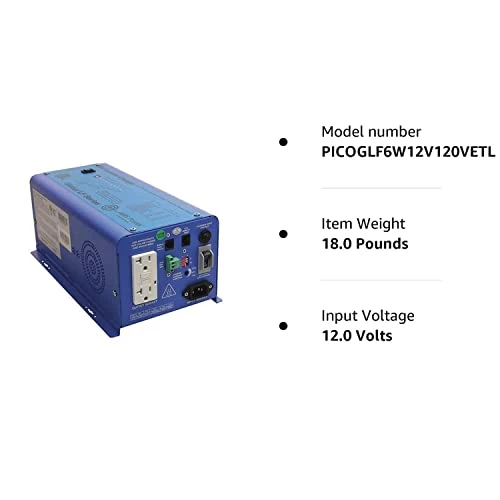

AIMS Power 600W Pure Sine Inverter Charger 12V to 120V (PICOGLF6W12V120VETL)
AIMS Power 600W Pure Sine Inverter Charger is a versatile, high-performance solution that combines an inverter, battery charger, and AC auto-transfer switch in a single unit. ETL is listed and compliant with UL 458 standards, and this inverter provides efficient DC-to-AC conversion with a peak efficiency of 80%. It features multi-stage smart charging and pure sine wave output, which ensures clean, stable power for sensitive electronics and tools.
Designed with advanced features like AC/Battery priority switching, auto generator start, and a selectable power-save mode, it offers excellent flexibility for renewable energy systems. This inverter charger is capable of charging GEL, Lead, AGM, and Lithium batteries, making it ideal for mobile, off-grid, and emergency backup power needs.
600W continuous output power
1800W surge for 20 seconds (300% surge capacity)
Pure sine wave output for clean, stable power
Multi-stage smart charger (20A) with 7 battery type settings
AC/Battery priority modes for backup or renewable energy systems
Auto generator start for low battery voltage
GFCI outlet and marine-rated conformal coating
Remote panel available for easy control
25W selectable power save (hibernation) mode
Automatic transfer switch with less than 10ms transfer time
Adjustable charge current from 20% to 100%
Continuous Output Power: 600W
Surge Power: 1800W (20 seconds)
Output Voltage: 120V AC
Nominal Efficiency: 80% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz ± 0.3Hz / 60Hz ± 0.3Hz
Typical Transfer Time: <10ms
Total Harmonic Distortion (THD): <10%
Nominal Input Voltage: 12V DC
Minimum Start Voltage: 10V DC
Low Battery Alarm: 10.5V – 11.0V
Low Battery Trip: 10.0V – 10.5V
Charger Output: 20A
Overcharge Protection Shutdown: 15.7V
Unit Dimensions (L x W x H): 14.75" x 7" x 5.5"
Unit Weight: 18 lbs
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF6W12V120VETL
