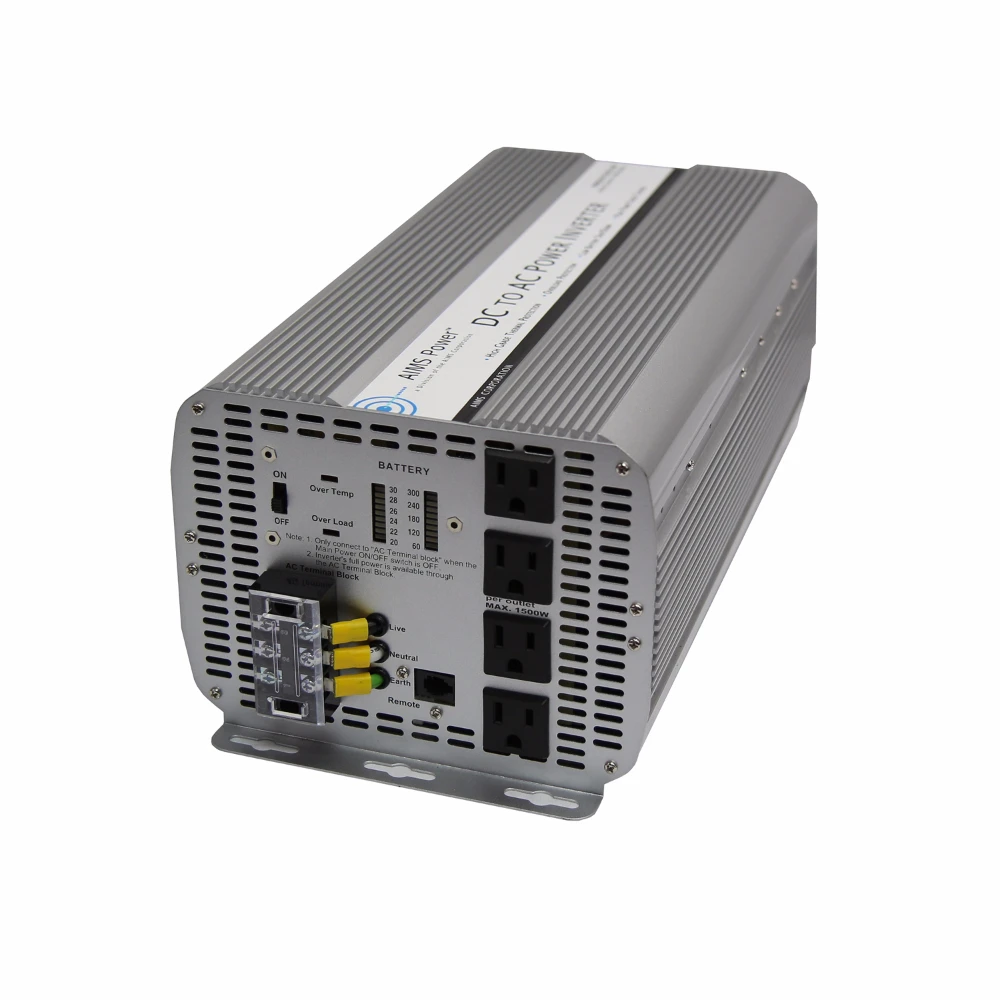

AIMS Power 5000 Watt 24 Volt Power Inverter (PWRINV500024W)
AIMS Power PWRINV500024W 5000 Watt 24 Volt Power Inverter is a powerful and efficient solution for converting 24V DC power into 120V AC power. Designed to support a wide range of devices, including heaters, air conditioners, and kitchen appliances, this inverter is perfect for both everyday use and emergency backup power. Its modified sine wave output ensures stable performance, while built-in features such as a voltmeter and ammeter enhance convenience and safety.
5000W continuous power with 10,000W surge capacity
Modified sine wave output with phase correction for stable performance

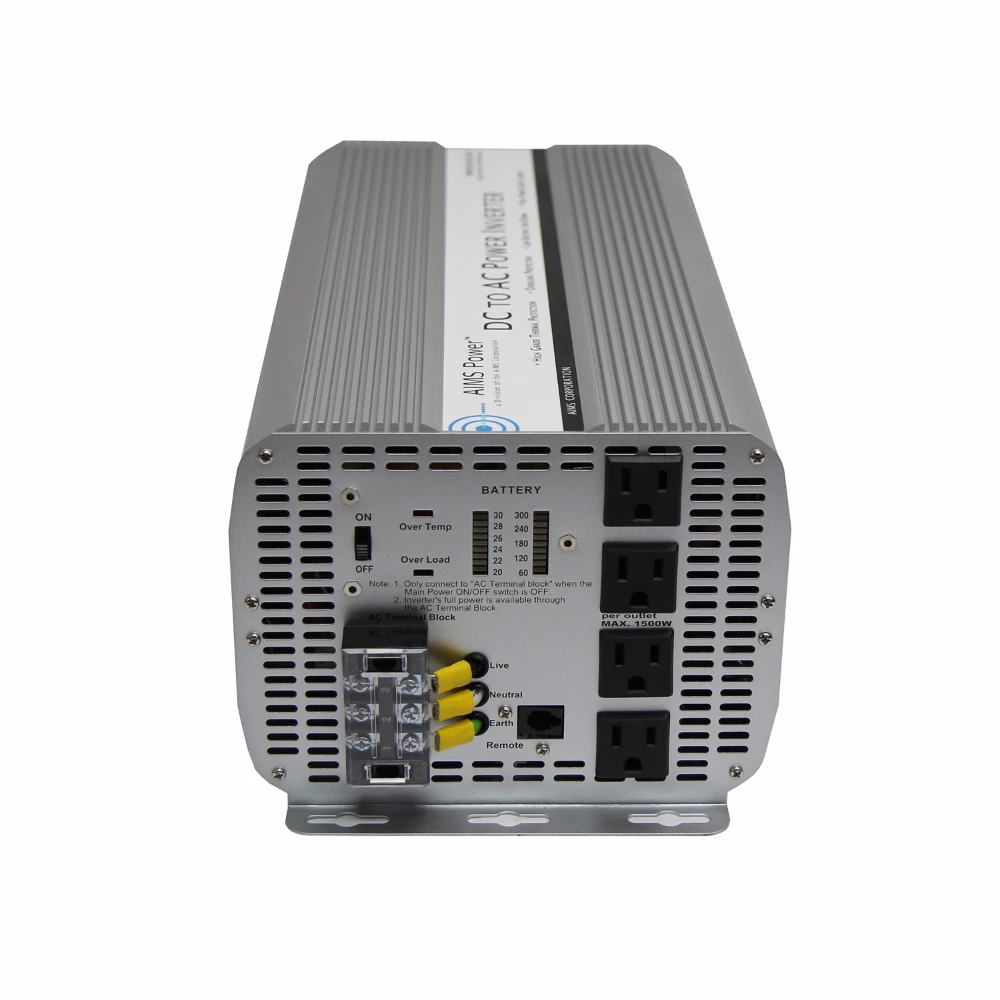

Quadruple AC outlets (Type 2 – 3 prong) for multiple connections
Built-in voltmeter and ammeter for real-time monitoring
Battery low voltage alarm and shutdown for battery protection
High input voltage protection to prevent damage
Automatic shutdown at extreme temperatures for safety
Internally fuse-protected system for enhanced reliability
Pre-wired for a remote on/off switch
Pre-slotted mounting plate for easy installation
Reliable power source for home, RV, and off-grid applications
Handles high-powered appliances and essential tools
Cost-effective alternative to pure sine wave inverters
Built-in safety features protect connected devices and batteries
Lightweight and easy to install with pre-mounting slots
Ideal backup power solution for emergencies and outages
Technical Specifications:
Model Number: PWRINV500024W
Continuous output power: 5000 Watts
Surge power capability: 10,000 Watts
DC input operating voltage: 20 to 34 Volts
Output voltage: 120 Volts AC ± 10%
Output waveform: Modified sine wave with phase correction
Output frequency: 60 Hz ± 1 Hz
Battery low voltage alarm: 21.0 ± 0.5 Volts
Battery low voltage shutdown: 20.0 ± 0.5 Volts
No load current: < 0.4 Amps
Full load efficiency: 90%
1/3 load efficiency: 95%
Minimum operating temperature: -15°C
Maximum operating temperature: 55 ± 5°C (automatic shutdown)
AC output socket type: Quadruple Type 2 – 3 prong
High input voltage protection: 34.5V
Low input voltage shutdown: 20.0V
Internal fuse protection
Dimensions (L x W x H): 17.5" x 8" x 6"
Weight: 17 lbs (unit), 19 lbs (boxed)
UL maximum recommended per outlet: 1500W
Free 1-year tech support
Instruction manual included
Pre-wired for remote on/off switch and pre-slotted mounting plate
Product identification
- Brand: Aims Power
- Model / MPN: PWRINV500024W
