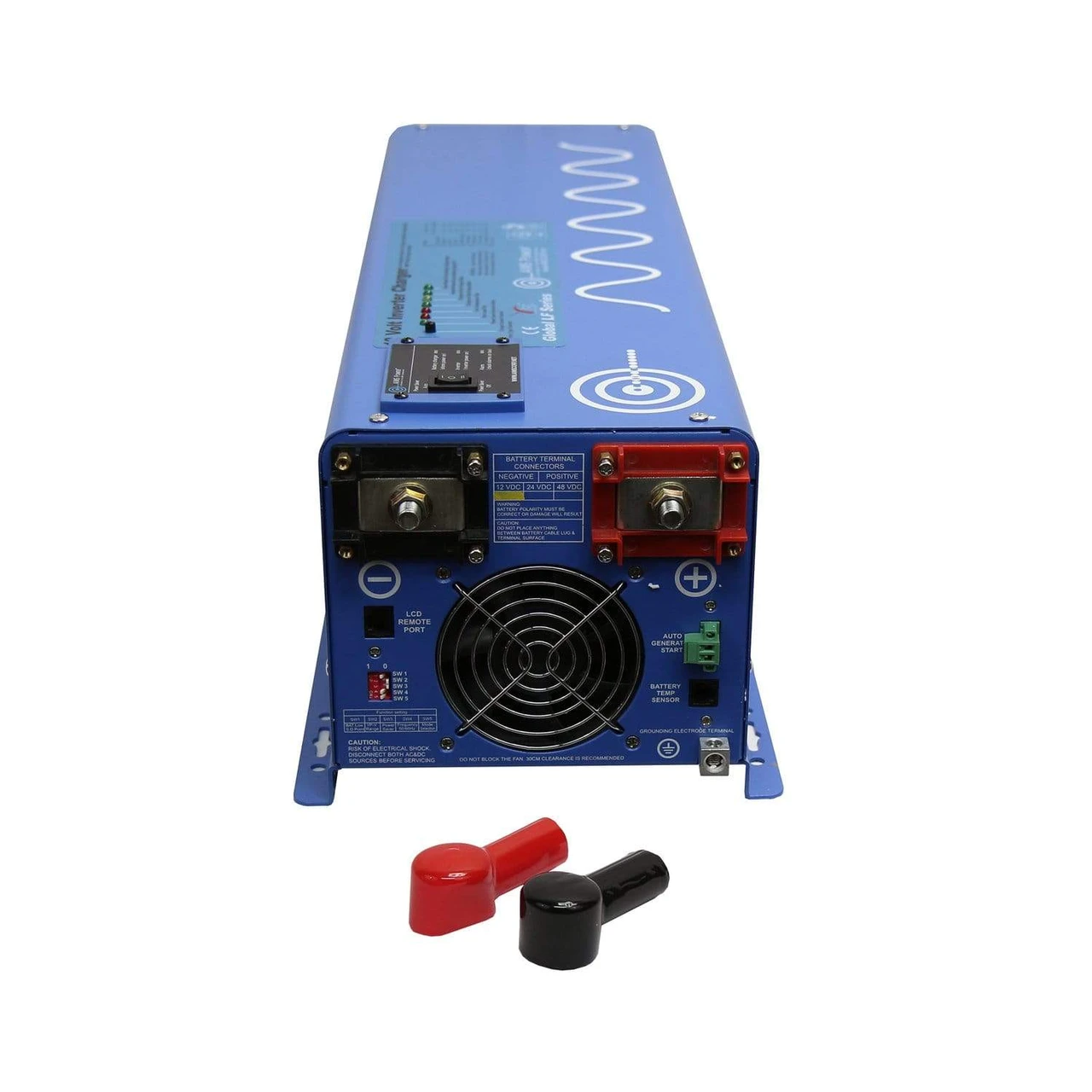

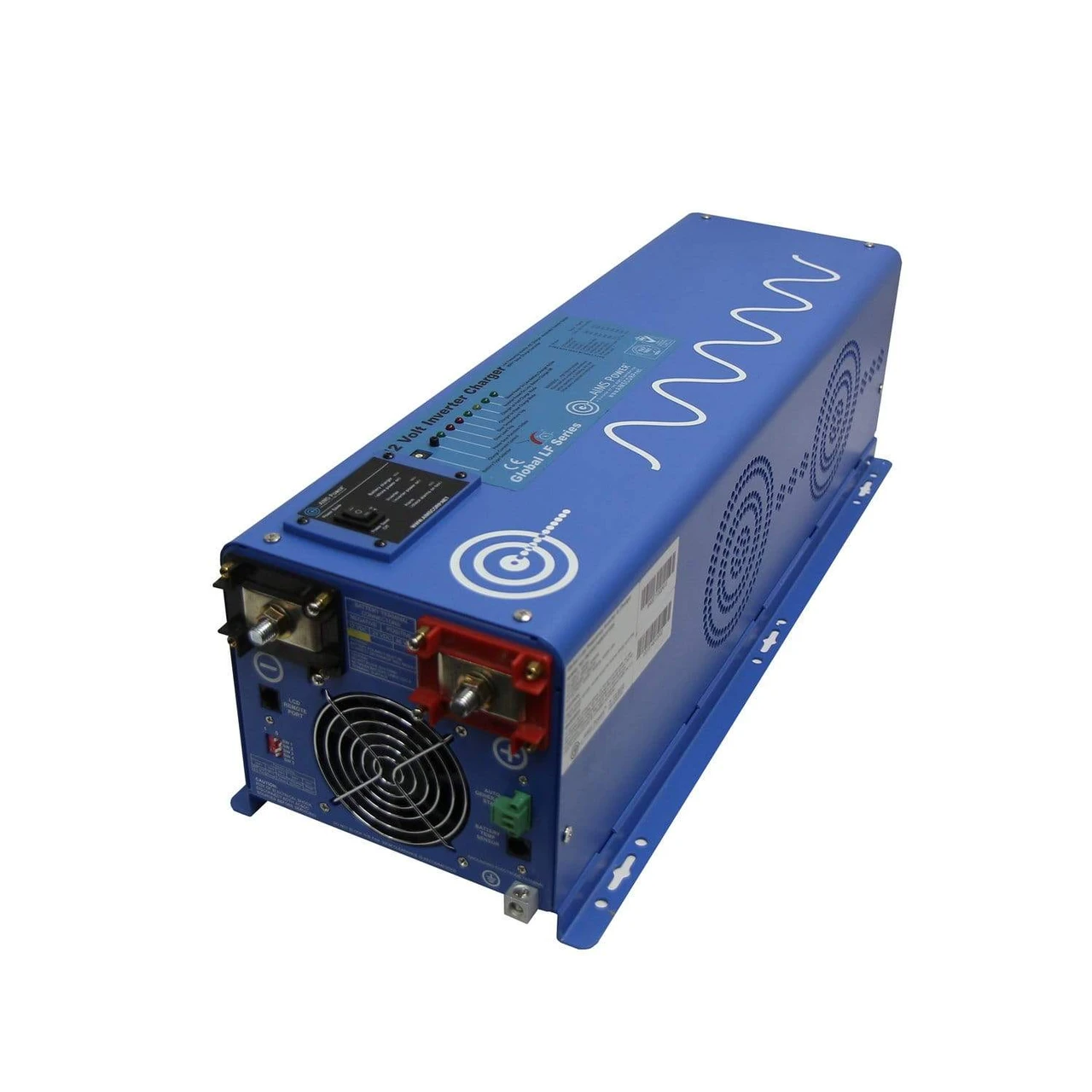

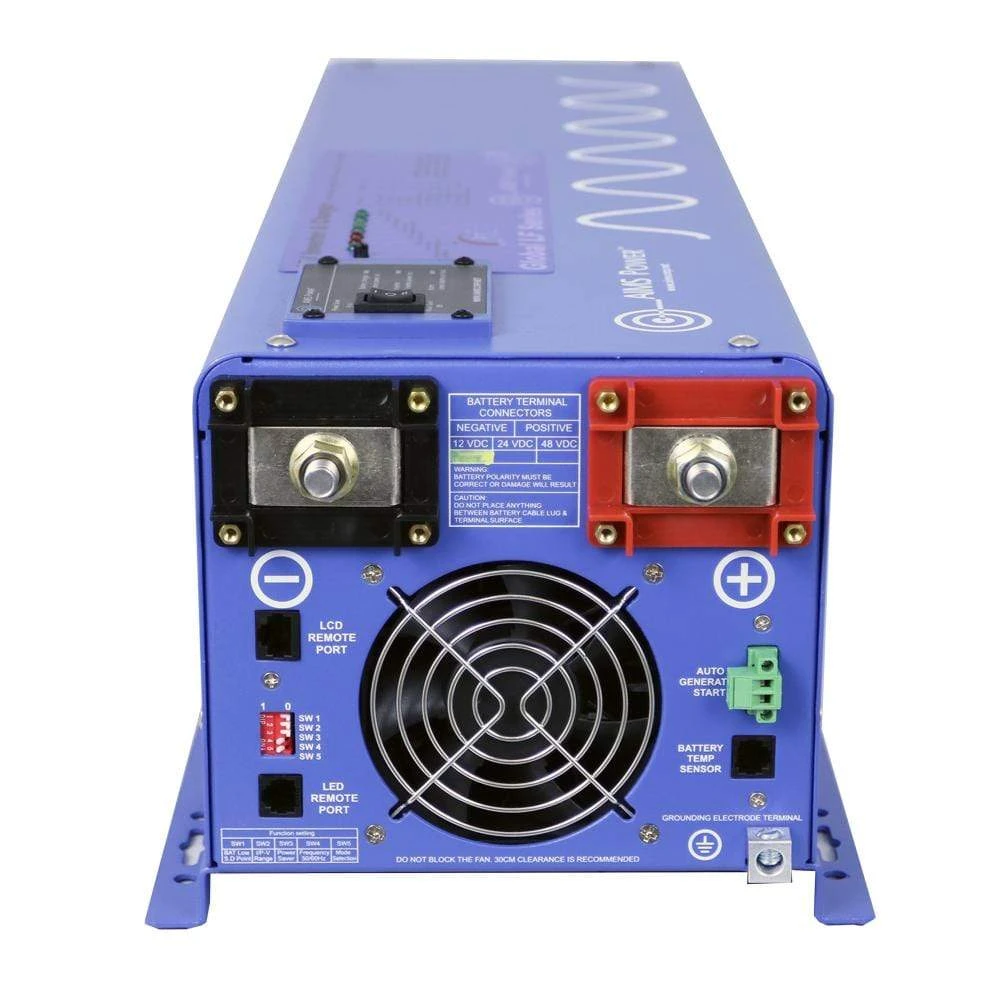

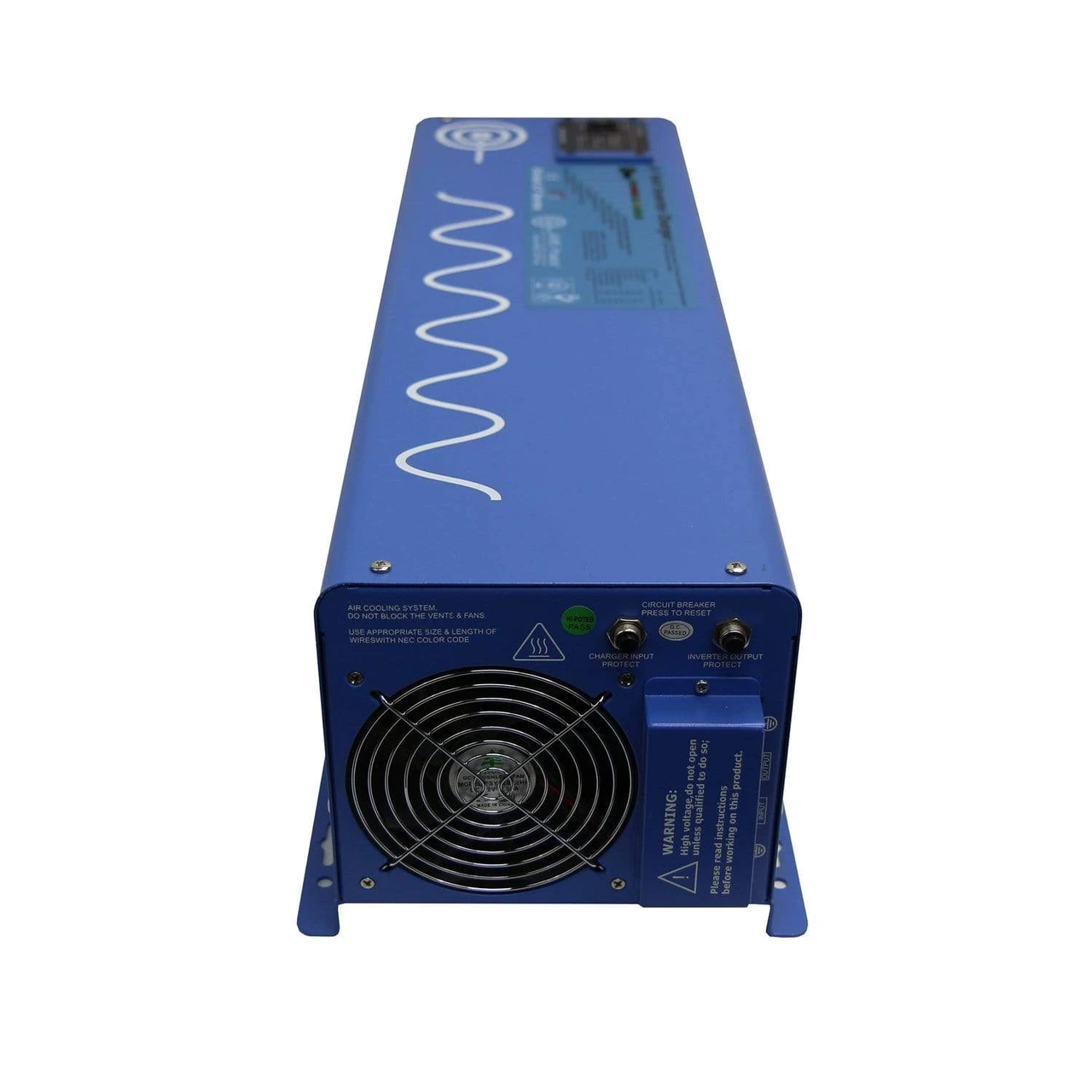

AIMS Power 4000 Watt Pure Sine Inverter Charger (PICOGLF40W48V240VS)
AIMS Power PICOGLF40W48V240VS 4000 Watt Pure Sine Inverter Charger is a reliable solution for backup and off-grid power applications. With a built-in transfer switch and a multi-stage smart charger, this inverter delivers efficient power conversion. Designed for heavy-duty use, it provides a surge capacity of 12,000 watts, making it perfect for running high-demand appliances and tools. The marine-coated design protects against humidity and dust, making it ideal for RVs, boats, and mobile applications. Equipped with dual thermally-controlled fans and over-temperature protection, this inverter ensures safe operation under extreme conditions. Additional features like a battery priority selector and remote panel availability give users complete control over their power needs.
4000-watt continuous power with 12,000-watt surge capacity.
Pure sine wave output supports sensitive electronics.
Built-in 50A automatic transfer switch.
Multi-stage smart charger with adjustable settings.
Marine-coated circuit boards for dust and moisture resistance.
Battery priority selector for customized power management.
Dual thermally controlled cooling fans for optimal performance.
Remote panel available for convenient monitoring.
Reliable off-grid and backup power for homes, RVs, and boats.
Seamless transition with a fast 10ms transfer time.
Protects and extends battery life with smart charging.
Withstands extreme conditions with thermal protection.
Provides clean power for sensitive electronics and appliances.
Technical Specifications:
Model: PICOGLF40W48V240VS
Continuous Output Power: 4000 Watts
Surge Rating: 12000 Watts (20 Seconds)
Output Voltage: 110/120/220/240 Vac
Output Waveform: Pure Sine (Bypass Mode)
Nominal Efficiency: >88% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
Typical Transfer Time: 10ms (Max)
Total Harmonic Distortion (THD): <10% DC
Nominal Input Voltage: 48.0 Vdc
Minimum Start Voltage: 44.0 Vdc
Low Battery Alarm: 42 Vdc – 44.0 Vdc
Idle Consumption: 1.67 Amps DC
Charger Rate: 40A
Over Charge Protection Shutdown: 62.8V
Dimensions: 23.5 x 8.74 x 7.10 inches
Unit Weight: 64 lbs.
Automatic Transfer Switch: 50 Amp @ 120Vac or 30 Amp @ 240Vac
Product identification
- Brand: Aims Power
- Model / MPN: PICOGLF40W48V240VS
