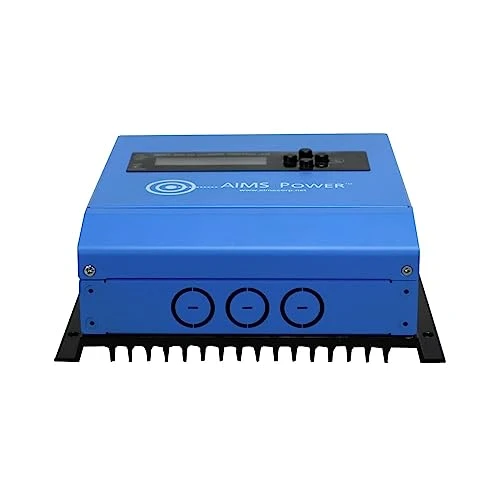

AIMS Power 30 Amp Solar Charge Controller 12V or 24V (SCC30AMPPT)
AIMS Power SCC30AMPPT 30 Amp Solar Charge Controller is designed to efficiently charge 12V and 24V solar systems using advanced MPPT (Maximum Power Point Tracking) technology. This charge controller offers high efficiency, ensuring maximum energy harvest even under varying weather conditions. With 4-stage charging, it supports multiple battery types, including lithium, and features temperature compensation for protection. The AIMS Power SCC30AMPPT includes an LCD screen to display key data like battery voltage, solar panel voltage, and charging current, and offers a user-defined option for customized settings. Ideal for off-grid solar applications, the AIMS Power SCC30AMPPT also features a stackable design, allowing more controllers to be combined for expanded power. It's built with multiple safety protections, including overload, short circuit, and high-temperature protection, making it a reliable and durable solution for your solar charging needs.
Charging Type: 4-stage charging for 12V or 24V solar systems
Efficiency: 97.5%-99% MPPT tracking efficiency
Battery Compatibility: Supports 8 different types of batteries, including lithium, with adjustable voltage
Charging Protection: Overload, short circuit, high voltage, high temperature, low voltage, auto-correct features
Temperature Compensation: Includes battery temperature sensor
Stackable: Can stack up to 10 units for increased solar array capacity
Display: LCD with battery voltage, solar panel voltage, solar panel charging current, and charge mode
Communication: RS485 connection for computer monitoring
Dimensions: 8.27" L x 7.52" W x 3.27" H
Product identification
- Brand: Aims Power
- Model / MPN: SCC30AMPPT
