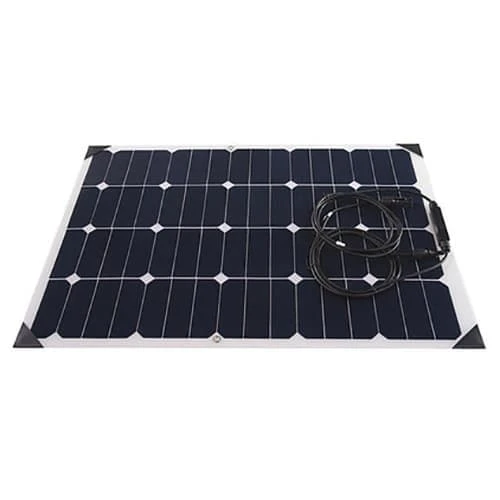

AIMS Power 130 Watt Flexible Slim Solar Panel (PV130SLIM)
The AIMS Power 130 Watt Flexible Slim Solar Panel (PV130SLIM) is a high-efficiency solar panel designed for a variety of off-grid applications. This flexible panel delivers excellent performance with high cell efficiency, ensuring optimal power generation even in limited sunlight. The panel’s lightweight design allows for easy installation on curved surfaces, making it ideal for RVs, boats, and other off-grid systems. The AIMS Power PV130SLIM is built to withstand harsh environments and features a Class A fire safety rating. This solar panel is engineered for maximum durability and high performance, offering long-lasting efficiency in all weather conditions.
Maximum Power: 130W
Cell Efficiency: 22.3%
Module Efficiency: 19.2%
Tolerance Wattage: +/- 5%
Maximum System Voltage: 600V DC (UL)
Optimum Operating Voltage (Vmp): 22 V
Optimum Operating Current (Imp): 5.5 A
Open-Circuit Voltage (Voc): 26.4 V
Short-Circuit Current (Isc): 6.35 A
Power Tolerance: 0 = +3W
Maximum Fuse Rating: 10 A
Fire Safety Class: Class A
Junction Box: IP 67 rated
Temperature Range: -40°F to 185°F
Bendable Degree: 3° to 90°
Number of Cells: 4 x 10
PV Wire: 10 AWG with MC4 male and female connectors, 76" length
Temperature Coefficients: ISC(+2.6%), Voc(-50.6%), Prm(-0.38%), Im(+2.2%), Vm(-60.8%)
Dimensions: 53.1 x 21.25 x 0.12 inches
Weight: 3.96 lbs
Product identification
- Brand: Aims Power
- Model / MPN: PV130SLIM
